UT-80953 E - Homelite Pressure Washer Figure B Parts Diagram

Pressure Washer

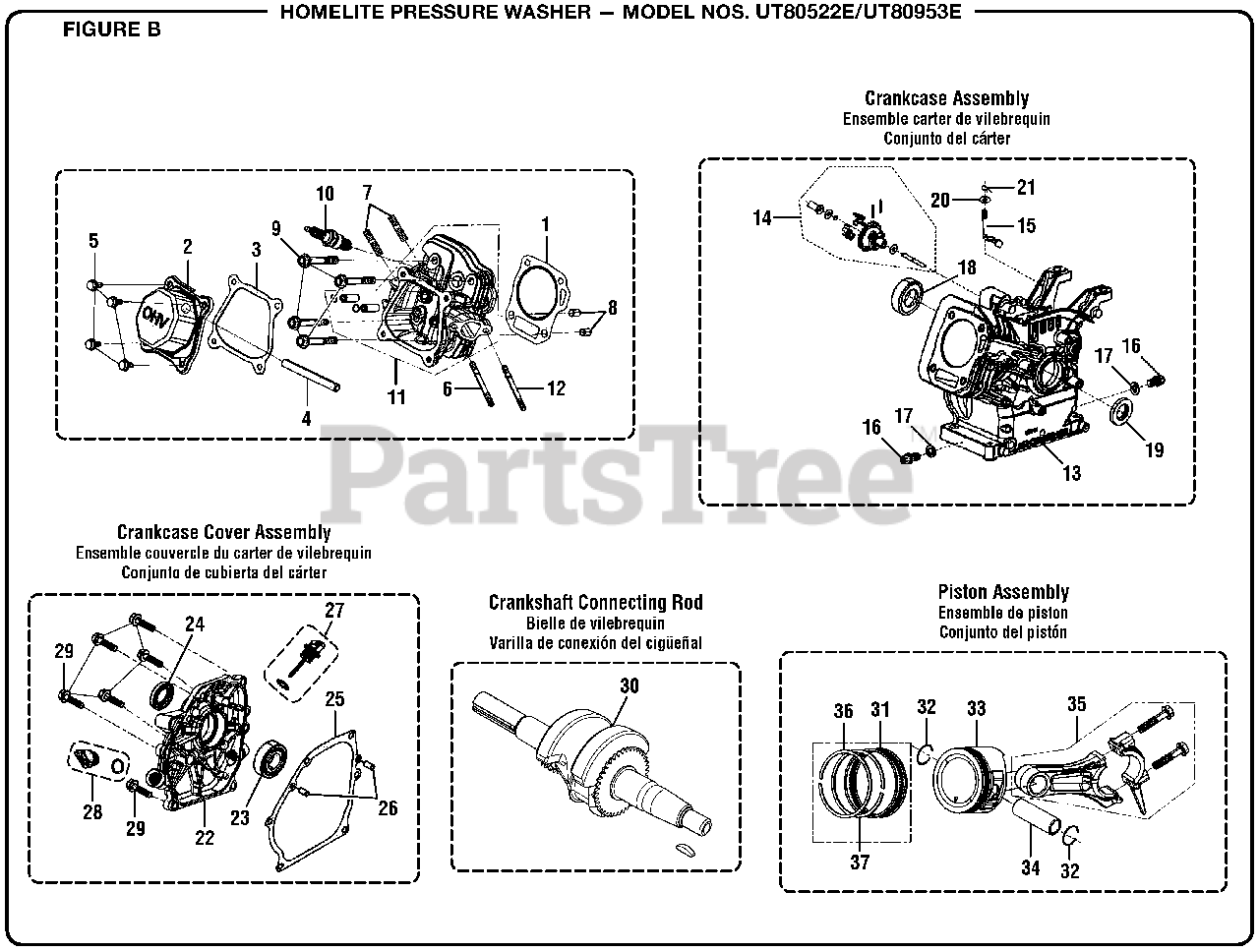

Figure B Parts Diagram

  • Title

CYLINDER HEAD ASSEMBLY

$

$

Not available

1

Homelite 12131-Z440320-0000

Cylinder Head Gasket

$7.49

$

Usually ships in 3-7 days

0

2

Homelite 12410-Z440210-0099

Cylinder Head Cover

$

$

Not available

3

Homelite 12004-Z440210-0000

Cylinder Head Cover Gasket

$2.49

$

Usually ships in 3-7 days

0

4

$2.49

$

Usually ships in 3-7 days

0

$2.49

$

Usually ships in 3-7 days

0

6

$2.99

$

Usually ships in 3-7 days

0

7

$2.49

$

Usually ships in 3-7 days

0

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 12003-Z010110-0000

Cylinder Head Bolt

$2.49

$

Usually ships in 3-7 days

0

$6.99

$

Usually ships in 3-7 days

0

11

Homelite 12140-Z440510-0099

Cylinder Head Assembly

$76.99

$

Usually ships in 3-7 days

0

12

$2.99

$

Usually ships in 3-7 days

0

CRANKCASE ASSEMBLY

$

$

Not available

13

Homelite 11310-Z440810-0099

Crankcase Assembly

$

$

Not available

14

Homelite 16400-Z010110-0000

Governor Gear Assembly

$7.99

$

Usually ships in 3-7 days

0

15

$3.99

$

In Stock, only 2 left!

0

$2.49

$

Usually ships in 3-7 days

0

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 90547-0205-CL

Ball Bearing

$

$

Not available

$3.99

$

In Stock, only 1 left!

0

$2.49

$

In Stock, only 2 left!

0

$2.49

$

In Stock, only 2 left!

0

CRANKCASE COVER ASSEMBLY

$

$

Not available

22

Homelite 11411-Z440210-0000

Crankcase Cover Assembly

$69.99

$

Usually ships in 3-7 days

0

23

Homelite 90547-0205-CL

Ball Bearing

$

$

Not available

$3.99

$

In Stock, only 1 left!

0

25

Homelite 11001-Z440110-0000

Crankcase Gasket

$6.99

$

In Stock, only 1 left!

0

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 15010-Z010120-QG00

Oil Dipstick Assembly

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 15030-Z010120-QG00

Oil Cap Assembly

$2.49

$

Usually ships in 3-7 days

0

$1.99

$

In Stock, only 1 left!

0

CRANKSHAFT CONNECTING ROD

$

$

Not available

30

Homelite 13300-Z440220-0000

Crankshaft Assembly

$94.99

$

Usually ships in 3-7 days

0

PISTON ASSEMBLY

$

$

Not available

31

$7.49

$

Usually ships in 3-7 days

0

32

Homelite 13122-Z010110-0000

Piston Pin Clip

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 13111-Z440110-0099

Piston Assembly

$20.99

$

Usually ships in 3-7 days

0

$

$

Not available

35

$19.99

$

Usually ships in 3-7 days

0

36

$6.49

$

Usually ships in 3-7 days

0

37

Homelite 13202-Z440110-0099

The Second Ring

$5.99

$

Usually ships in 3-7 days

0
