UT-80953 D - Homelite Pressure Washer Figure D Parts Diagram

Pressure Washer

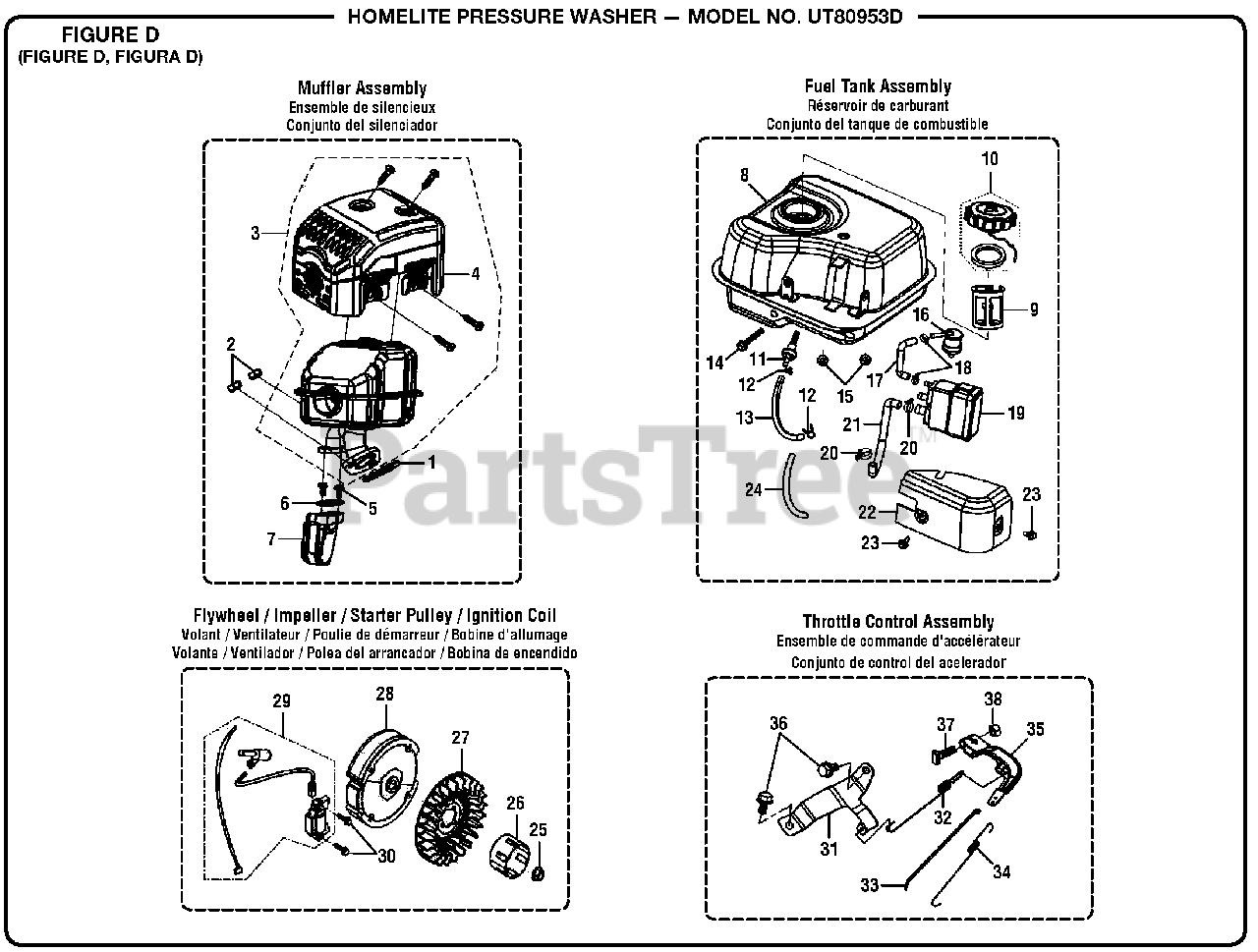

Figure D Parts Diagram

  • Title

Muffler Assembly

$

$

Not available

1

Homelite 18001-Z440110-0000

Exhaust Outlet Gasket

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 90303-0800-31

Nut

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 18100-Z440540-0000

Muffler Assembly

$

$

Not available

4

Homelite 18130-Z440210-0000

Muffler Cover

$

$

Not available

5

Homelite 90001-Z010210-0000

Bolt

$

$

Not available

6

Homelite 18107-Z030110-0000

Air Valve Gasket

$

$

Not available

7

Homelite 18050-Z030110-0000

Air Valve

$

$

Not available

Fuel Tank Assembly

$

$

Not available

8

Homelite 16620-Z300710-H700

Fuel Tank

$

$

Not available

9

Homelite 16652-Z010510-0000

Fuel Filter

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 16730-Z010410-0000

Fuel Tank Cap

$21.99

$

In Stock, only 1 left!

0

11

Homelite 16680-Z010110-0000

Fuel Filter Assembly

$3.49

$

In Stock, only 1 left!

0

12

Homelite 90740-Z010210-0000

Collar

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 90686-Z010710-0000

Fuel Tube

$5.99

$

In Stock, only 1 left!

0

14

Homelite 90001-0630-01

Bolt

$

$

Not available

15

Homelite 90305-0600-31

Nut

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 15150-Z010110-0000

Fuel Tank Vapor Vent

$23.99

$

In Stock, only 2 left!

0

17

Homelite 16804-Z010210-0000

Vapor Hose

$2.49

$

In Stock, only 2 left!

0

18

Homelite 90685-Z030220-0000

Clamp

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 16801-Z010110-0000

Carbon Canister

$

$

Not available

20

Homelite 90685-Z030410-0000

Clamp

$2.49

$

In Stock, only 1 left!

0

21

Homelite 16805-Z010210-0000

Vent Hose

$3.99

$

Usually ships in 3-7 days

0

22

Homelite 16803-Z300110-0000

Carbon Canister Cover

$

$

Not available

23

Homelite 90001-0610-01

Bolt

$

$

Not available

24

Homelite 30431-Z010110-0000

Rubber Sleeve

$2.49

$

Usually ships in 3-7 days

0

Flywheel / Impeller / Starter Pulley / Ignition Coil

$

$

Not available

25

Homelite 13501-Z010110-0000

Nut

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 28002-Z010210-0000

Starter Pulley

$10.99

$

Usually ships in 3-7 days

0

27

Homelite 19352-Z440110-0000

Impeller

$10.99

$

Usually ships in 3-7 days

0

28

Homelite 13510-Z440110-0000

Flywheel Assembly

$55.99

$

Usually ships in 3-7 days

0

29

Homelite 30400-Z010210-0000

Ignition Coil
(Superseded to 30400-Z300110-0000)

$24.99

$

Usually ships in 3-7 days

0

30

Homelite 90001-0625-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

Throttle Control Assembly

$

$

Not available

31

Homelite 16520-Z010610-0000

Throttle Control Assembly

$3.49

$

Usually ships in 3-7 days

0

32

Homelite 16063-Z440110-0000

Governor Spring

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 16062-Z010110-0000

Governor Rod

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 16012-Z010110-0000

Throttle Valve Return Spring
(Superseded to 16012-Z010110)

$2.49

$

In Stock, Qty 5

0

35

Homelite 16070-Z010110-0000

Governor Support Assembly

$3.49

$

Usually ships in 3-7 days

0

36

Homelite 90001-0610-01

Bolt

$

$

Not available

37

Homelite 16072-Z010110-0000

Governor Support Bolt

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 90305-0600-31

Nut

$2.49

$

Usually ships in 3-7 days

0
