UT-80715 - Homelite Pressure Washer Figure A Parts Diagram

Pressure Washer

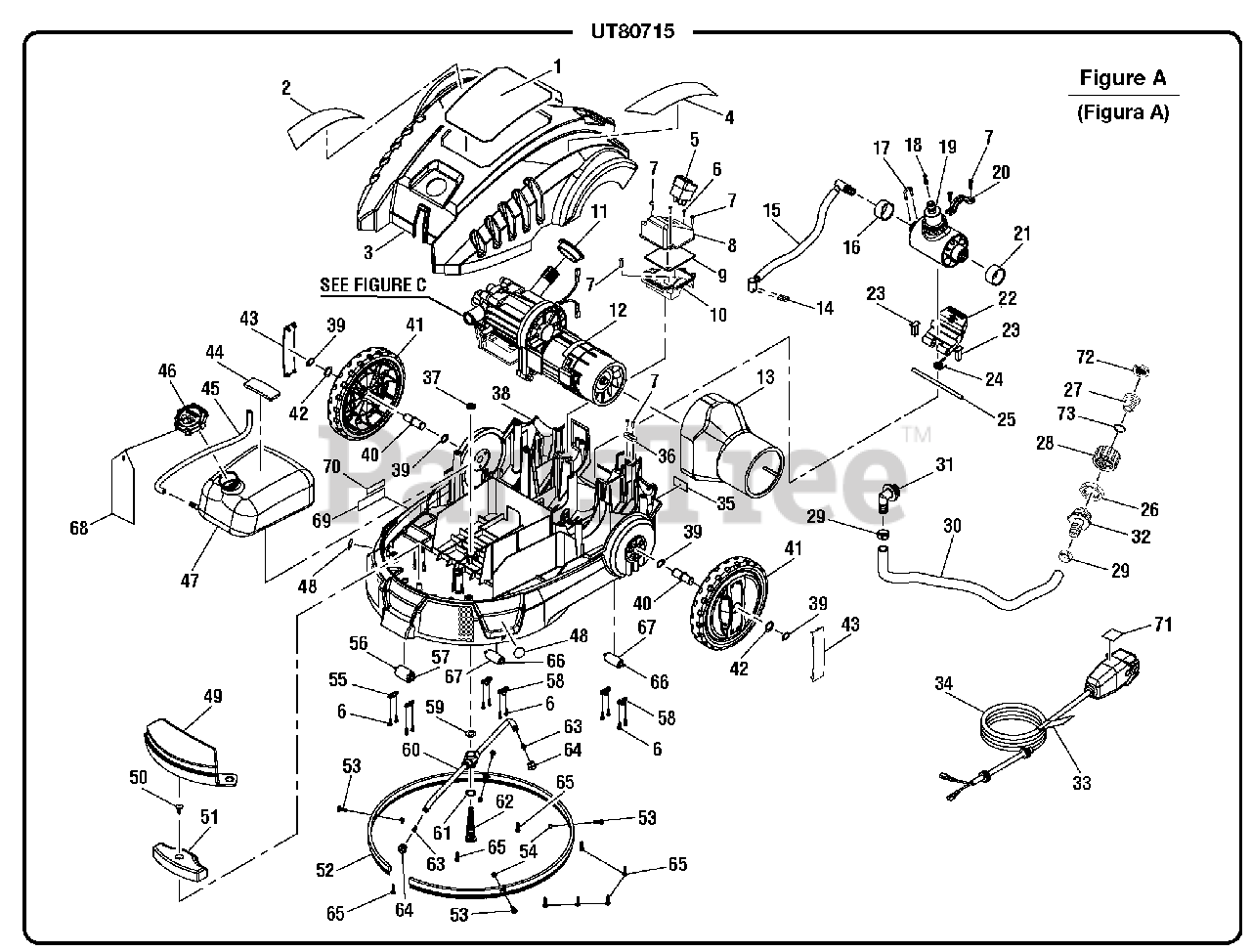

Figure A Parts Diagram

  • Title

1

Homelite 940779050

Performance Label

$

$

Not available

2

Homelite 940617080

Quick Start Label

$

$

Currently unavailable

3

Homelite 308999009

Top Housing Assembly (Incl. Key Nos. 1-2 & 4)

$

$

Not available

4

Homelite 940707020

Warning Label

$

$

Not available

5

Homelite 36302301AG

Switch

$

$

Not available

6

Homelite 32210302G

Screw (M3.5 x 12 mm)

$

$

Not available

7

Homelite 32208302G

Screw (M4.2 x 15 mm)

$

$

Not available

8

Homelite 34122302G

Switch Box Cover

$

$

Not available

9

Homelite 34121302G

Switch Box Gasket

$

$

Not available

10

Homelite 34120302G

Switch Box

$

$

Not available

11

Homelite 34125302G

Pump Outlet Ring

$

$

Not available

12

Homelite 308833007

Motor and Pump Assembly

$

$

Not available

13

Homelite 34101302G

Motor Baffle

$

$

Not available

14

Homelite 33308302G

U pin (2.5 mm)

$

$

Not available

15

Homelite 308835041

High Pressure Hose Assembly

$

$

Not available

16

Homelite 33237302G

Left Pivot Bushing

$

$

Not available

17

Homelite 33307302G

U pin (3 mm)

$

$

Not available

18

Homelite 33232302G

Nipple Filter

$

$

Not available

19

Homelite 34119302G

Pivot

$

$

Not available

20

Homelite 33306302G

Pivot Clamp

$

$

Not available

21

Homelite 33238302G

Right Pivot Bushing

$

$

Not available

22

Homelite 34127302G

Foot Pedal

$

$

Not available

23

Homelite 34128302G

Bearing Block

$

$

Not available

24

Homelite 33909302G

Torsion Spring

$

$

Not available

25

Homelite 33217302G

Foot Pedal Shaft

$

$

Not available

26

Homelite 678903001

Lock Nut

$

$

Not available

27

Homelite 310423002

Water Inlet Screw

$

$

Not available

28

Homelite 678886001

Water Inlet Screw Nut

$

$

Not available

29

Homelite 678409005

Hose Clamp

$

$

Not available

30

Homelite 34902302G

Inlet Hose

$

$

Not available

31

Homelite 31115302G

Pump Inlet Connector Assembly

$

$

Not available

32

Homelite 310423001

Hose Connector

$

$

Not available

33

Homelite 940324013

Warning Label (UL)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 31116302G

Power Cord Assembly (Incl. Key Nos. 33 and 71)

$

$

Not available

35

Homelite 940678198

Data Label

$

$

Not available

36

Homelite 3410801G

Cord Clamp

$

$

Not available

37

Homelite 32910302G

Spindle Nut (M10)

$

$

Not available

38

Homelite 31120302G

Lower Housing Assembly (Incl. Key Nos. 35 & 48)

$

$

Not available

39

Homelite 32905302G

Retaining Ring

$

$

Not available

40

Homelite 33216302G

Wheel Axle

$

$

Not available

41

Homelite 31113302G

Wheel Assembly

$

$

Not available

42

Homelite 32906302G

Washer

$

$

Not available

43

Homelite 310420001

Wheel Logo

$

$

Not available

44

Homelite 34147302G

Detergent Tank Pad

$

$

Not available

45

Homelite 34901302G

Detergent Hose

$

$

Not available

46

Homelite 34124302G

Detergent Tank Cap

$

$

Not available

47

Homelite 34129302G

Detergent Tank

$

$

Not available

48

Homelite 940507002

Foot/Hand Caution Label

$

$

Not available

49

Homelite 34126302G

Lift Handle

$

$

Not available

50

Homelite 32211302G

Screw (M4 x 16 mm)

$

$

Not available

51

Homelite 33903302G

Balast Weight

$

$

Not available

52

Homelite 34903302G

Brush

$

$

Not available

53

Homelite 32206302G

Screw (M4 x 12 mm)

$

$

Not available

54

Homelite 32901261G

Lock Nut (M4)

$

$

Not available

55

Homelite 34141302G

Front Roller Clamp

$

$

Not available

56

Homelite 33229302G

Front Roller Axle

$

$

Not available

57

Homelite 34140302G

Front Roller

$

$

Not available

58

Homelite 34142302G

Rear Roller Clamp

$

$

Not available

59

Homelite 34144302G

Upper Spinner Bushing

$

$

Not available

60

Homelite 31117302G

Spinner Assembly

$

$

Not available

61

Homelite 34145302G

Lower Spinner Bushing

$

$

Not available

62

Homelite 31118302G

Spindle Assembly

$

$

Not available

63

Homelite 31119302G

Spinner Nozzle Assembly

$

$

Not available

64

Homelite 33235302G

Spinner Nozzle Holder

$

$

Not available

65

Homelite 32209302G

Screw (M4.2 x 18 mm)

$

$

Not available

66

Homelite 33230302G

Rear Roller Axle

$

$

Not available

67

Homelite 34143302G

Rear Roller

$

$

Not available

68

Homelite 940971051

Danger Hangtag

$

$

Not available

69

Homelite 940707033

Outdoor Use Label (French)

$

$

Not available

70

Homelite 940518003

Danger Label (French)

$

$

Currently unavailable

71

Homelite 940603001

GFCI Reset Label

$

$

Not available

72

Homelite 678981001

Water Inlet Filter

$

$

Not available

73

Homelite 570768004

O-Ring (13.5 x 1.8G)

$

$

Not available

Homelite 988000382

Operator's Manual

$

$

Not available
