UT-80522 F - Homelite Pressure Washer Figure B Parts Diagram

Pressure Washer

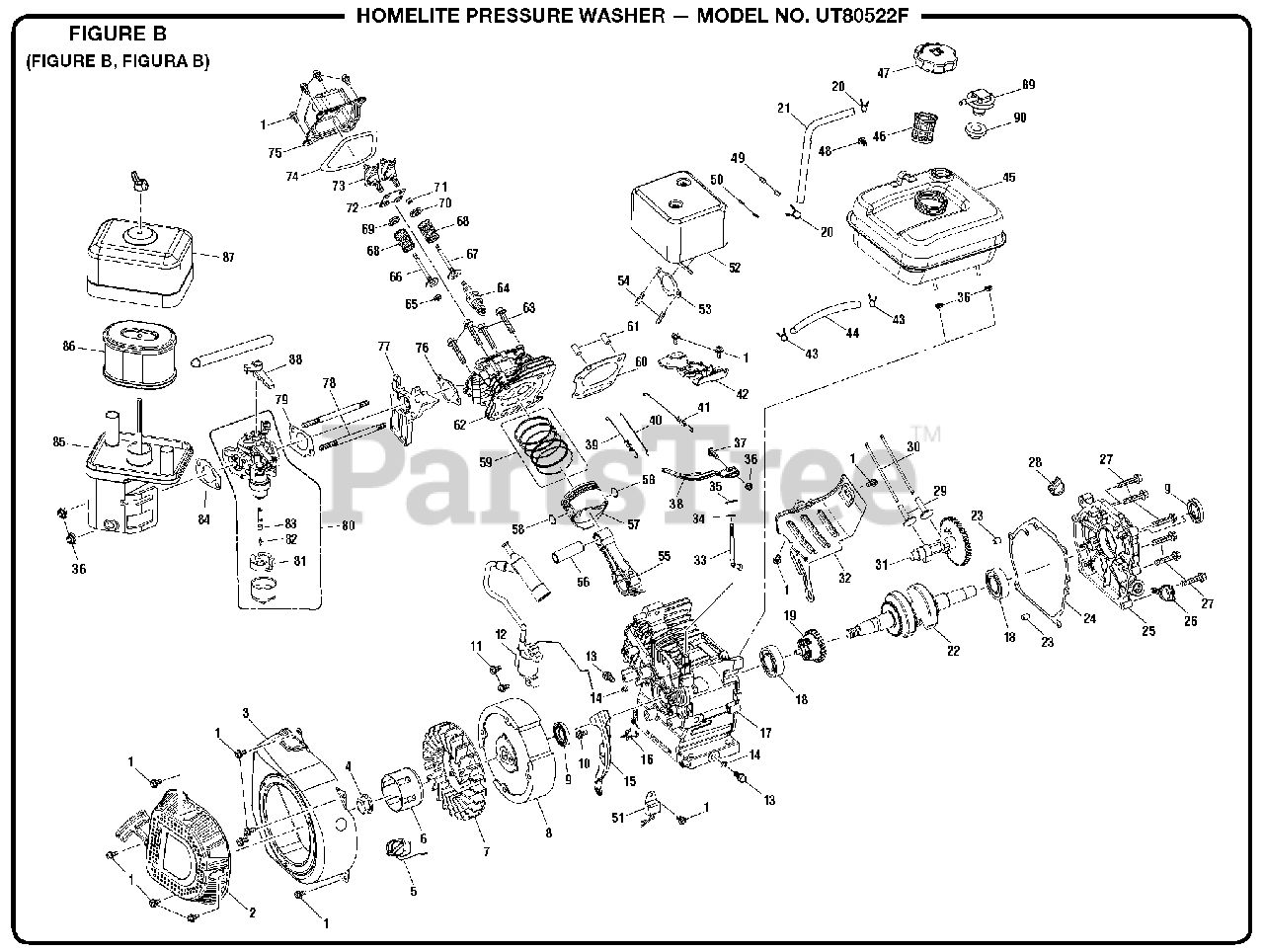

Figure B Parts Diagram

  • Title

1

Homelite GBT16674-B6-12

Bolt
(Superseded to D91325)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite DJ168F-16130-J-017

Recoil Starter Assembly
(Superseded to 099980551070)

$45.99

$

Usually ships in 3-7 days

0

3

Homelite DJ168F-16101-A-017

Shroud

$14.99

$

Usually ships in 3-7 days

0

4

Homelite DJ168F-16205-A

Hex Nut

$

$

Not available

5

Homelite DJ168F-18400-I

Switch Assembly

$4.49

$

Usually ships in 3-7 days

0

6

Homelite DJ168F-16000-A

Starter Pulley

$5.49

$

Usually ships in 3-7 days

0

7

Homelite DJ168F-16002-A

Impeller

$4.49

$

Usually ships in 3-7 days

0

8

Homelite DJ168F-16200-A

Flywheel Assembly

$50.99

$

Usually ships in 3-7 days

0

9

Homelite DJ168F-11014-A

Oil Seal

$3.49

$

Usually ships in 3-7 days

0

10

Homelite GBT16674-B6-20

Bolt

$

$

Not available

11

Homelite GBT16674-B6-25

Bolt
(Superseded to D91331)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite DJ168F-18100-D

Ignition Coil Assembly

$29.99

$

Usually ships in 3-7 days

0

13

Homelite DJ168F-11004-A

Drain Plug Bolt

$2.49

$

Usually ships in 3-7 days

0

14

Homelite DJ168F-11005-A

Washer

$2.49

$

Usually ships in 3-7 days

0

15

Homelite DJ168F-11400-C

Lower Shield

$

$

Not available

16

Homelite DJ168F-11039-A

Clip

$

$

Not available

17

Homelite DJ165F-11100-BE

Crankcase Assembly

$

$

Not available

18

Homelite GB276-89-6205

Ball Bearing
(Superseded to D93009)

$4.99

$

Usually ships in 3-7 days

0

19

Homelite DJ168F-15100-A

Governor Gear Assembly

$5.49

$

Usually ships in 3-7 days

0

20

Homelite DF3000H-14008-A

Fuel Line Clip

$2.49

$

Usually ships in 3-7 days

0

21

Homelite DJ168F-14803-B

Vapor Hose

$7.49

$

Usually ships in 3-7 days

0

22

Homelite DJ168F-12100-QQE

Crankshaft Assembly

$

$

Not available

23

Homelite DJ168F-11002-A

Pin
(Superseded to D240901)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite DJ168F-11003-B

Crankcase Gasket

$6.49

$

In Stock, only 1 left!

0

25

Homelite DJ165F-11001-A

Crankcase Cover Assembly

$

$

Not available

26

Homelite DJ168F-11007-H

Dipstick
(Superseded to D245604)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite GBT16674-B8-30

Bolt

$

$

Not available

28

Homelite DJ168F-11006-H

Oil Plug

$2.49

$

Usually ships in 3-7 days

0

29

Homelite DJ168F-13009-A

Valve Lifter

$3.49

$

Usually ships in 3-7 days

0

30

Homelite DJ168F-13008-B

Push Rods

$2.49

$

Usually ships in 3-7 days

0

31

Homelite DJ168F-13100-BE

Camshaft Assembly

$

$

Currently unavailable

32

Homelite DJ168F-11012-A

Shroud

$

$

Not available

33

Homelite DJ168F-15001-A

Governor Arm

$3.49

$

Usually ships in 3-7 days

0

34

Homelite DJ168F-15002-A

Washer

$

$

Not available

35

Homelite DJ168F-15003-A

Lock Pin

$

$

Not available

36

Homelite GB6177-N-6

Hex Nut
(Superseded to D90016)

$2.49

$

Usually ships in 3-7 days

0

37

Homelite DJ168F-15005-A

Bolt

$2.49

$

Usually ships in 3-7 days

0

38

Homelite DJ168F-15004-A

Governor Support Assembly

$

$

Not available

39

Homelite DJ168F-15008-A

Throttle Valve Return Spring

$2.49

$

Usually ships in 3-7 days

0

40

Homelite DJ168F-15006-A

Governor Rod

$2.49

$

Usually ships in 3-7 days

0

41

Homelite DJ168F-15007-A

Governor Spring
(Superseded to D244103)

$2.49

$

In Stock, only 2 left!

0

42

Homelite DJ168FD-15200-A

Upper Shroud Assembly

$

$

Not available

43

Homelite DJ168F-14008-B

Fuel Line Clip

$2.49

$

Usually ships in 3-7 days

0

44

Homelite DJ168F-14007-C

Fuel Line

$5.49

$

Usually ships in 3-7 days

0

45

Homelite DJ165F-14300-B-017

Fuel Tank Assembly
(Superseded to 099980551087)

$

$

Not available

46

Homelite DJ168F-14307-A

Fuel Filter
(Superseded to 099980551088)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite DF2500H-14306-D

Fuel Cap
(Superseded to 099980551089)

$10.99

$

Usually ships in 3-7 days

0

48

Homelite GBT16674-B6-28

Bolt

$2.49

$

Usually ships in 3-7 days

0

49

Homelite GB6170-N-8

Hex Nut
(Superseded to D90011)

$1.99

$

Usually ships in 3-7 days

0

50

Homelite GBT93-LW-8

Spring Washer
(Superseded to D94206)

$1.99

$

Usually ships in 3-7 days

0

51

Homelite DJ168F-18300-A

Oil Sensor
(Superseded to DJ168F-18300)

$5.49

$

Usually ships in 3-7 days

0

52

Homelite DJ168F-14400-L

Muffler Assembly

$32.99

$

Usually ships in 3-7 days

0

53

Homelite DJ168F-14006-A

Exhaust Outlet Gasket

$2.49

$

Usually ships in 3-7 days

0

54

Homelite DJ168F-14002-A

Stud Bolt

$2.49

$

Usually ships in 3-7 days

0

55

Homelite DJ170F-12200-BE

Connecting Rod Assembly

$

$

Not available

56

Homelite DJ165F-12002-A

Piston Pin

$

$

Not available

57

Homelite DJ165F-12001-A

Piston

$

$

Not available

58

Homelite DJ168F-12003-A

Piston Pin Clip

$2.49

$

In Stock, only 2 left!

0

59

Homelite DJ165F-12300-A

Piston Rings

$12.99

$

Usually ships in 3-7 days

0

60

Homelite DJ165F-11010-B

Cylinder Head Gasket

$6.49

$

Usually ships in 3-7 days

0

61

Homelite DJ168F-11009-A

Dowel Pin
(Superseded to D240905)

$2.49

$

Usually ships in 3-7 days

0

62

Homelite DJ168F-11200-AE

Cylinder Head

$67.99

$

Usually ships in 3-7 days

0

63

Homelite GBT5789-B8-60

Bolt

$

$

Not available

64

Homelite DJ168F-18500-A

Spark Pulg

$8.49

$

Usually ships in 3-7 days

0

65

Homelite DJ168F-13010-A

Seal Guide

$3.49

$

Usually ships in 3-7 days

0

66

Homelite DJ168F-13001-A

Intake Valve

$6.49

$

Usually ships in 3-7 days

0

67

Homelite DJ168F-13002-A

Exhaust Valve

$6.49

$

Usually ships in 3-7 days

0

68

Homelite DJ168F-13003-A

Valve Spring

$2.49

$

Usually ships in 3-7 days

0

69

Homelite DJ168F-13004-A

Valve Spring Seat

$2.49

$

Usually ships in 3-7 days

0

70

Homelite DJ168F-13005-A

Exhaust Valve Retainer

$2.49

$

Usually ships in 3-7 days

0

71

Homelite DJ168F-13006-A

Valve Rotator
(Superseded to D241804)

$2.99

$

Usually ships in 3-7 days

0

72

Homelite DJ168F-13300-A

Guide Plate Assembly

$2.49

$

Usually ships in 3-7 days

0

73

Homelite DJ168F-13200-A

Rocker Assembly
(Superseded to D242101)

$2.99

$

Usually ships in 3-7 days

0

74

Homelite DJ168F-11011-A

Cylinder Head Gasket

$

$

Not available

75

Homelite DJ168F-11300-C

Cylinder Head Cover Assembly

$

$

Not available

76

Homelite DJ168F-14003-B

Carburetor Insulator Gasket
(Superseded to D96047)

$1.99

$

In Stock, only 4 left!

0

77

Homelite DJ168F-14004-A

Carburetor Insulator Plate

$2.99

$

Usually ships in 3-7 days

0

78

Homelite DJ168F-14001-A

Stud Bolt

$2.49

$

Usually ships in 3-7 days

0

79

Homelite DJ168F-14005-B

Carburetor Gasket
(Superseded to 099980551065)

$2.99

$

In Stock, only 4 left!

0

80

Homelite DJ165F-14100-BE

Carburetor Assembly
(Superseded to 099980551032)

$83.99

$

In Stock, only 3 left!

0

81

Homelite DJ1P65F-14106-A

Float

$5.49

$

Usually ships in 3-7 days

0

82

Homelite DJ1P65F-14109-A

Needle

$

$

Not available

83

Homelite 14112-70

Jet

$5.49

$

Usually ships in 3-7 days

0

84

Homelite DJ168F-14027-A

Air Cleaner Gasket

$2.99

$

In Stock, only 4 left!

0

85

Homelite DJ168F-14203-LC

Air Cleaner Base

$

$

Not available

86

Homelite DJ168F-14201-L

Air Cleaner Element
(Superseded to 099980551078)

$4.99

$

In Stock, only 3 left!

0

87

Homelite DJ168F-14204-L

Air Cleaner Case Cover

$6.49

$

In Stock, only 1 left!

0

88

Homelite DJ168F-14113-A

Choke Lever

$5.49

$

Usually ships in 3-7 days

0

89

Homelite DF6500H-34128-A

Rollover Valve

$41.99

$

Usually ships in 3-7 days

0

90

Homelite DF6500H-34125-C

Bushing

$

$

Not available
