UT-80522 D - Homelite Pressure Washer Figure B Parts Diagram

Pressure Washer

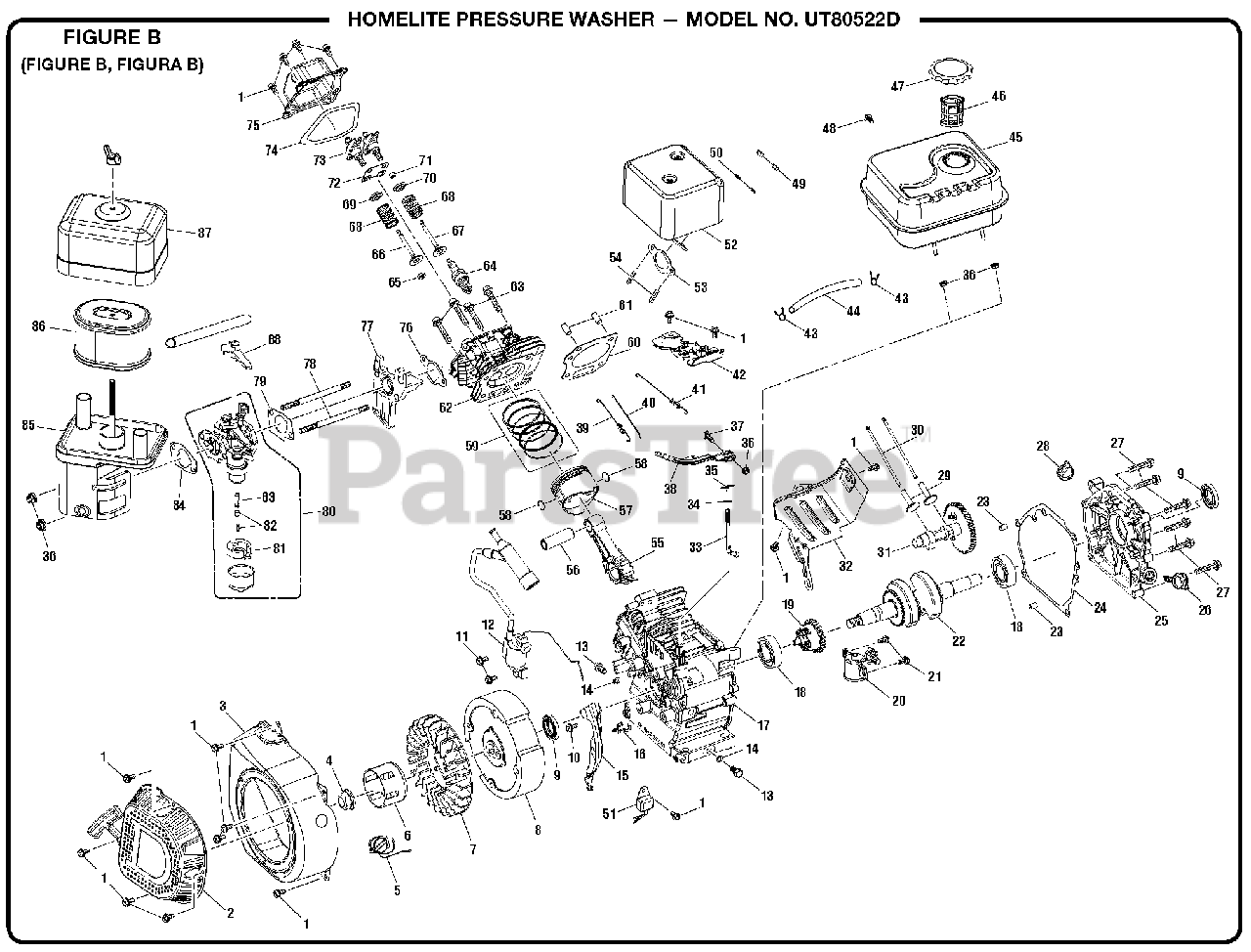

Figure B Parts Diagram

  • Title

$

$

Not available

2

Homelite 099980551070

Recoil Starter Assembly

$45.99

$

Usually ships in 3-7 days

0

$

$

Not available

$

$

Not available

5

Homelite 099980551074

Switch Assembly

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 099980551059

Starter Pulley

$5.49

$

Usually ships in 3-7 days

0

$

$

Not available

8

Homelite 099980551057

Flywheel Assembly

$

$

Not available

$4.49

$

Usually ships in 3-7 days

0

$2.49

$

Usually ships in 3-7 days

0

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 099980551061

Ignition Coil Assembly

$

$

Not available

13

Homelite 099980551008

Drain Plug Bolt

$

$

Not available

$

$

Not available

15

Homelite 099980551055

Lower Shield

$

$

Not available

$

$

Not available

17

Homelite 099980551001

Crankcase Assembly

$162.99

$

Usually ships in 3-7 days

0

18

Homelite 099980551002

Ball Bearing

$8.99

$

Usually ships in 3-7 days

0

19

Homelite 099980551004

Governor Gear Assembly

$

$

Not available

20

Homelite 099980551010

Engine Oil Sensor

$10.99

$

Usually ships in 3-7 days

0

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 099980551041

Crankshaft Assembly

$78.99

$

Usually ships in 3-7 days

0

$

$

Not available

24

Homelite 099980551043

Crankcase Gasket

$

$

Not available

25

Homelite 099980551018

Crankcase Cover Assembly

$

$

Not available

26

$2.49

$

Usually ships in 3-7 days

0

$

$

Not available

28

$2.99

$

Usually ships in 3-7 days

0

29

Homelite 099980551042

alve Lifter

$

$

Not available

30

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 099980551044

Camshaft Assembly

$44.99

$

Usually ships in 3-7 days

0

$

$

Not available

33

Homelite 099980551005

Governor Arm

$

$

Not available

$

$

Not available

35

$

$

Not available

$2.49

$

Usually ships in 3-7 days

0

$

$

Not available

38

Homelite 099980551038

Governor Support Assembly

$

$

Not available

39

Homelite 099980551068

Throttle Valve Return Spring

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 099980551067

Governor Rod

$

$

Not available

41

Homelite 099980551080

Governor Spring

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 099980551075

Upper Shroud Assembly

$5.49

$

Usually ships in 3-7 days

0

43

Homelite 099980551037

Fuel Line Clip

$2.49

$

Usually ships in 3-7 days

0

44

$7.49

$

Usually ships in 3-7 days

0

45

Homelite 099980551087

Fuel Tank Assembly

$

$

Not available

46

Homelite 099980551088

Fuel Filter

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 099980551089

Fuel Tank Cover

$10.99

$

Usually ships in 3-7 days

0

$

$

Not available

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 099980551085

Spring Washer

$2.49

$

Usually ships in 3-7 days

0

51

Homelite 099980551081

Oil Protector

$7.99

$

Usually ships in 3-7 days

0

52

Homelite 099980551083

Muffler Assembly

$

$

Not available

53

Homelite 099980551082

Exhaust Outlet Gasket

$2.49

$

Usually ships in 3-7 days

0

54

$

$

Not available

55

Homelite 099980551015

Connecting Rod Assembly

$

$

Not available

56

$3.49

$

Usually ships in 3-7 days

0

$

$

Not available

58

Homelite 099980551017

Piston Pin Clip

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 099980551014

Piston Rings

$12.99

$

Usually ships in 3-7 days

0

60

Homelite 099980551047

Cylinder Head Gasket

$6.49

$

Usually ships in 3-7 days

0

61

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 099980551020

Cylinder Head

$67.99

$

Usually ships in 3-7 days

0

$

$

Not available

64

$11.99

$

In Stock, only 1 left!

0

65

$

$

Not available

66

Homelite 099980551021

Intake Valve

$6.49

$

Usually ships in 3-7 days

0

67

Homelite 099980551022

Exhaust Valve

$

$

Not available

68

Homelite 099980551024

Valve Spring

$2.49

$

Usually ships in 3-7 days

0

69

Homelite 099980551025

Valve Spring Seat

$

$

Not available

70

Homelite 099980551026

Exhaust Valve Retainer

$

$

Not available

71

Homelite 099980551029

Valve Rotator

$2.49

$

Usually ships in 3-7 days

0

72

Homelite 099980551027

Guide Plate Assembly

$2.49

$

Usually ships in 3-7 days

0

73

Homelite 099980551028

Rocker Assembly

$2.49

$

Usually ships in 3-7 days

0

74

Homelite 099980551053

Cylinder Head Gasket

$2.49

$

Usually ships in 3-7 days

0

75

Homelite 099980551054

Cylinder Head Cover Assembly

$11.99

$

Usually ships in 3-7 days

0

76

Homelite 099980551063

Carburetor Insulator Gasket

$2.99

$

Usually ships in 3-7 days

0

77

Homelite 099980551064

Carburetor Insulator Plate

$2.99

$

Usually ships in 3-7 days

0

78

$2.49

$

Usually ships in 3-7 days

0

79

Homelite 099980551065

Carburetor Gasket

$2.99

$

In Stock, only 4 left!

0

80

Homelite 099980551032

Carburetor Assembly

$83.99

$

In Stock, only 3 left!

0

$5.49

$

Usually ships in 3-7 days

0

$

$

Not available

$5.49

$

Usually ships in 3-7 days

0

84

Homelite 099980551066

Air Cleaner Gasket

$2.99

$

In Stock, only 2 left!

0

85

Homelite 099980551077

Air Cleaner Base

$

$

Not available

86

Homelite 099980551078

Air Cleaner Element
(Superseded to DJ168F-14201-L)

$4.99

$

In Stock, only 3 left!

0

87

Homelite 099980551079

Air Cleaner Case Cover

$

$

Not available

88

Homelite 099980425137

Choke Lever

$

$

Currently unavailable
