UT-80522 D - Homelite Pressure Washer Figure A Parts Diagram

Pressure Washer

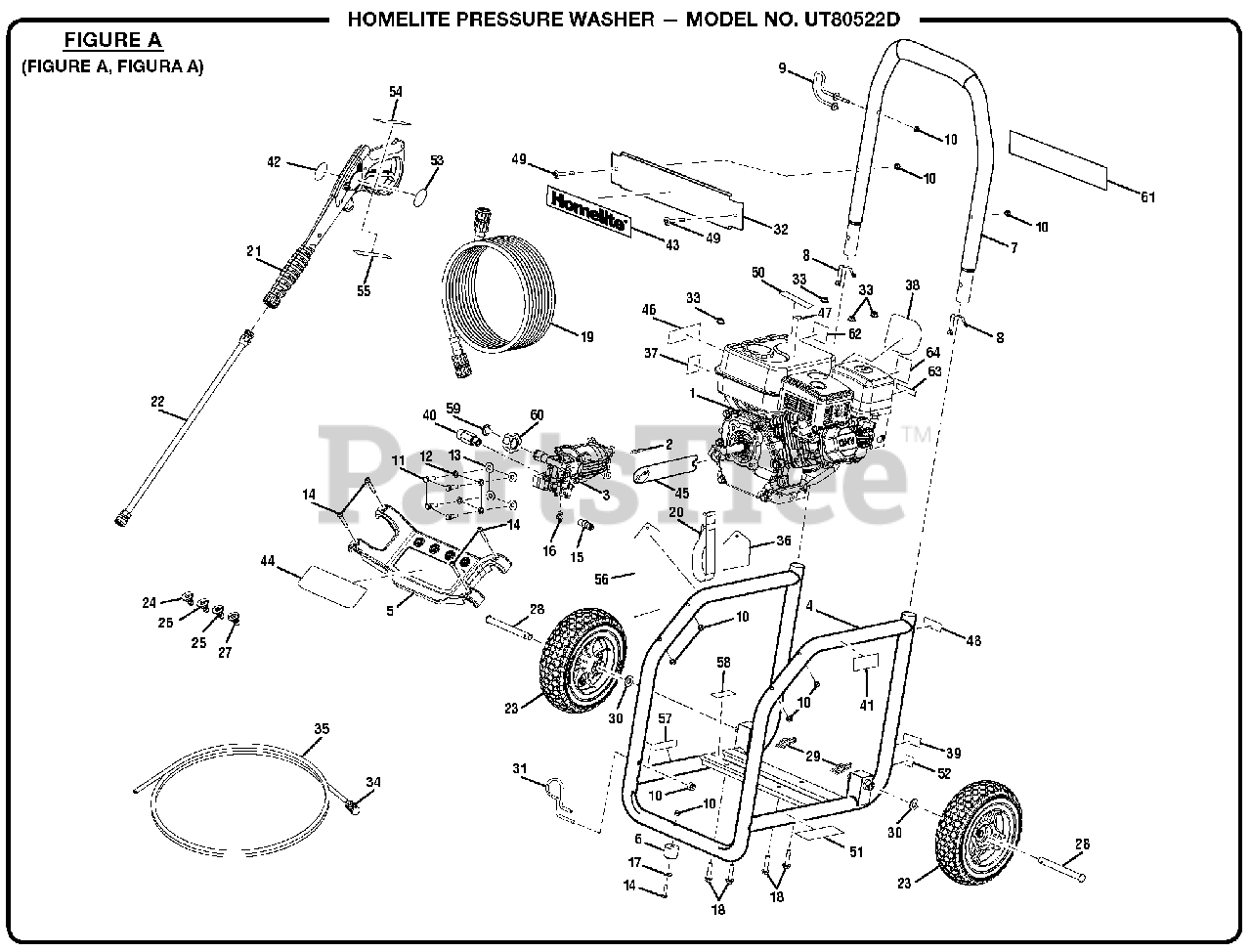

Figure A Parts Diagram

  • Title

1

Homelite 309591070

Engine (180cc Horizontal Shaft, EPA)

$

$

Currently unavailable

2

Homelite 678041007

Output Shaft Key (3/16 x 40 mm)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 308418007

Pump

$

$

Not available

4

Homelite 308582044

Main Frame

$

$

Not available

5

Homelite 518790009

Nozzle Holder

$5.49

$

Usually ships in 3-7 days

0

6

Homelite 570554002

Rubber Foot

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 308638039

Handle Assembly

Note: (Inc Key No 8)

$

$

Not available

8

Homelite 308421005

Lock Button w/Spring Clip

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 308316005

Wand Holder (Upper)

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

11

Homelite 661557011

Bolt (5/16-24 x 27 mm, Hex Hd)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 638678001

Lock Washer (5/16 in)

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 638675005

Washer (5/16 in)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 661503013

Screw (1/4-20 x 20 in, Torx)

$

$

Not available

15

Homelite 678169004

Thermal Release Valve

$

$

Not available

16

Homelite 308452002

Detergent Suction Kit

$5.99

$

In Stock, Qty 5

0

17

Homelite 638128004

Washer (1/4 in)

$1.99

$

In Stock, Qty 5

0

18

Homelite 661505005

Bolt (M8 x 36 mm, Hex Flange Hd)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 308835058

Hose

$

$

Currently unavailable

20

Homelite 310801003

Hook and Loop Strap

$

$

Not available

21

Homelite 308760019

Trigger Handle

$46.99

$

Usually ships in 3-7 days

0

22

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

23

Homelite 308451018

Wheel Assembly (10 in x 3 in)

$

$

Not available

24

Homelite 308697012

Nozzle, 0deg
(Superseded to 308697014)

$15.99

$

Usually ships in 3-7 days

0

25

Homelite 308700012

Nozzle 40deg

$6.99

$

In Stock, only 1 left!

0

26

Homelite 308699012

Nozzle 25deg

$7.99

$

In Stock, only 2 left!

0

27

Homelite 308706011

Soap Nozzle

$5.49

$

In Stock, only 2 left!

0

28

Homelite 620599019

Axle

$2.99

$

Usually ships in 3-7 days

0

29

Homelite 678899006

Hitch Pin
(Superseded to 678899001)

$

$

Not available

30

Homelite 638275002

Washer (1/2 in)

$1.99

$

In Stock, Qty 5

0

31

Homelite 678243012

Wand Holder (Lower)

$3.99

$

Usually ships in 3-7 days

0

32

Homelite 678973001

Front Panel

$

$

Not available

33

Homelite 678774001

Lock Nut (M8 x 125)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 308103015

Filter

$2.49

$

In Stock, Qty 5

0

35

Homelite 561399003

Chemical Siphon Tube

$2.99

$

In Stock, only 2 left!

0

36

Homelite 961039005

Nozzle Instructions Hangtag

$

$

Not available

37

Homelite 940708018

Engine Label (On-Off)

$

$

Not available

38

Homelite 940633019

Recoil Label

$

$

Not available

39

Homelite 940647083

Choke Label

$

$

Not available

40

Homelite 308862003

Outlet Tube

$8.99

$

In Stock, only 3 left!

0

41

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 940786016

Trigger Handle Logo Label

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 940748005

Homelite Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940779071

Performance Label

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 940753025

Add Oil Label

$

$

Not available

46

Homelite 940894004

Danger Label

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

48

Homelite 940324014

Homelite Inquiries Label

$

$

Not available

49

Homelite 661503014

Screw (1/4-20 x 43 mm, Torx T-30)

$

$

Not available

50

Homelite 940899002

No Oil to Gas Label

$

$

Not available

51

Homelite 940947003

Combustion Label

$

$

Not available

52

Homelite 941494010

Fuel Label

$

$

Not available

53

Homelite 940654089

Trigger Handle Warning Label (French and Spanish)

$1.49

$

In Stock, only 1 left!

0

54

Homelite 940654084

Warning Label

$2.99

$

In Stock, only 1 left!

0

55

Homelite 940786006

Wand Label (Max Rating)

$

$

Not available

56

Homelite 940473002

Danger Hangtag

$

$

Not available

57

Homelite 940517007

Lubricant Label

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 940889004

Dip Stick Label

$

$

Not available

59

Homelite 308662001

Filter Screen

$

$

Not available

60

Homelite 308861003

Inlet Tube

$21.99

$

In Stock, only 3 left!

0

61

Homelite 940617102

Quick Start Label

$

$

Not available

62

Homelite 941613004

Squeeze Trigger Label

$

$

Not available

63

Homelite 941709001

Fuel On/Off Label

$1.49

$

Usually ships in 3-7 days

0

64

Homelite 940647084

Choke/Fuel Valve Label

$

$

Not available

Homelite 988000871

Operator's Manual (960957015)

Note: Not Shown

$

$

Not available

Homelite 988000873

Quick Reference Guide (960459012)

$

$

Not available

Homelite 120900147

Pump Protector (4 oz, Not Included)

$

$

Not available

Homelite 987823001

Pump Protector (12 oz, Not Included)
(Superseded to AGPWP04)

$

$

Not available

Homelite 120900148

Fuel Stabilizer (Not Included)

$

$

Currently unavailable

High Altitude Kit 1 (Not Included)

Note: If you intend to operate this product at an altitude of more than 3000 ft above sea level, please call 1-800-242-4672 to obtain one of our high altitude kits.

$

$

Not available

High Altitude Kit 2 (Not Included)

Note: If you intend to operate this product at an altitude of more than 3000 ft above sea level, please call 1-800-242-4672 to obtain one of our high altitude kits.

$

$

Not available
