UT-80432 - Homelite Pressure Washer Figure A Parts Diagram

Pressure Washer

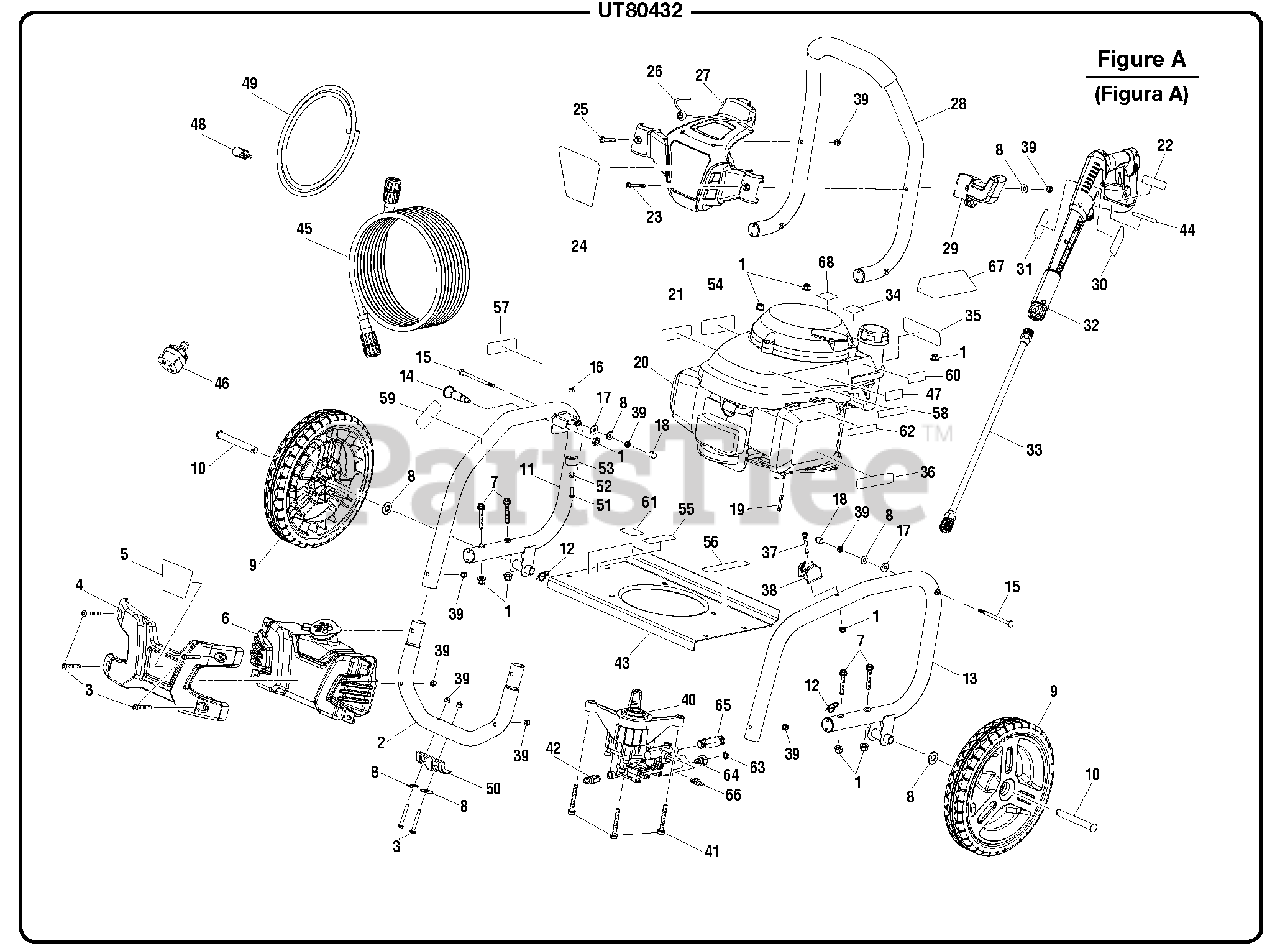

Figure A Parts Diagram

  • Title

1

Homelite 678774002

Lock Nut (M8 x 1-1/4 in.)

$

$

Not available

2

Homelite 310742004

Front Frame

$

$

Not available

3

Homelite 661501007

Screw (1/4-20 x 2 in.)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 638671004

Detergent Tank Cover

$13.99

$

In Stock, only 1 left!

0

5

Homelite 941532001

Logo Label (Homelite)

$

$

Not available

6

Homelite 310658006

Detergent Tank
(Superseded to 580875010)

$

$

Not available

7

Homelite 660962001

Bolt (M8 x 55 mm)
(Superseded to 660969001)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

9

Homelite 308451019

Wheel

$

$

Not available

10

Homelite 620599001

Axle
(Superseded to 620599007)

$4.49

$

Usually ships in 3-7 days

0

11

Homelite 310704005

Main Frame Assembly (right)

$

$

Not available

12

Homelite 678899001

Spring pin

$

$

Not available

13

Homelite 310703005

Main Frame Assembly (left)

$37.99

$

Usually ships in 3-7 days

0

14

Homelite 308910005

Handle Release Knob

$23.99

$

In Stock, only 1 left!

0

15

Homelite 678406010

Bolt (1/4-20 x 3.5 in.)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 678610002

Flange Nut (M4 x 0.7)

$

$

Not available

17

Homelite 518724002

Spacer

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 570410003

Cap

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 678041007

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

20

Engine (Honda 190cc)

$

$

Not available

21

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 940654089

Trigger Handle Warning Label

$1.49

$

In Stock, only 1 left!

0

23

Homelite 660592006

Screw (1/4-20 x 2.27 in.)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 940779064

Performance Label

$

$

Not available

25

Homelite 660592005

Screw (1/4-20 x 1.65 in.)

$

$

Not available

26

Homelite 570718001

Bungee Cord Assembly
(Superseded to 310664001)

$3.99

$

Usually ships in 3-7 days

0

27

Homelite 310673010

Hose Storage

$12.99

$

Usually ships in 3-7 days

0

28

Homelite 308638032

Handle Assembly

$

$

Not available

29

Homelite 518929002

Trigger Handle Holder

$3.99

$

In Stock, only 4 left!

0

30

Homelite 940654083

Trigger Handle Warning Label

$2.99

$

Usually ships in 3-7 days

0

31

Homelite 940705088

Logo Label

$

$

Not available

32

Homelite 308760028

Trigger Handle Assembly
(Superseded to 308760019)

$46.99

$

Usually ships in 3-7 days

0

33

Homelite 308494003

Spray Wand
(Superseded to 308494004)

$

$

Not available

34

Homelite 940872001

E85 Label

$

$

Not available

35

Homelite 940894001

Danger Label

$

$

Not available

36

Homelite 940617045

Engine Quick Start Label

$

$

Not available

37

Homelite 661501001

Bolt (1/4-20 x 1.85 in.)

$

$

Not available

38

Homelite 518931004

Spray Wand Holder

$2.99

$

Usually ships in 3-7 days

0

39

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

40

Homelite 308653026

Pump (Incl. Key Nos. 41-42)
(Superseded to 308653035)

$

$

Not available

41

Homelite 660962003

Bolt (M8 x 60 mm)

$1.99

$

In Stock, Qty 6

0

42

Homelite 678169004

Thermal Release Valve

$

$

Not available

43

Homelite 638662021

Engine Plate

$

$

Not available

44

Homelite 940786020

Trigger Handle Spec Label
(Superseded to 940786006)

$

$

Not available

45

Homelite 308835036

High Pressure Hose (25 ft.)
(Superseded to 308835066)

$

$

Not available

46

Homelite 310667006

6-in-1 Change Over Nozzle
(Superseded to 310667012)

$

$

Not available

47

Homelite 941505001

Release Water Label

$

$

Not available

48

Homelite 518391001

Filter

$1.49

$

Usually ships in 3-7 days

0

49

Homelite 570728003

Injection Hose

$

$

Not available

50

Homelite 561307005

Rubber Foot

$6.49

$

In Stock, only 1 left!

0

51

Homelite 661555001

Bolt (M4 x 12.5 in.)

$

$

Not available

52

Homelite 678600002

Washer (M4)

$

$

Not available

53

Homelite 570712001

Rubber Bumper

$1.49

$

Usually ships in 3-7 days

0

54

Homelite 940707082

Danger Label (French)

$

$

Not available

55

Homelite 940836007

Data Label

$

$

Currently unavailable

56

Homelite 940617036

Pump Quick Start Label

$

$

Not available

57

Homelite 940947003

Combustion Warning Label

$

$

Not available

58

Homelite 940803018

EMC Label

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 940778002

Hot Surface Label

$

$

Not available

60

Homelite 940647047

Choke Label

$

$

Not available

61

Homelite 940871002

Oil Dipstick Label

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 940324014

Inquiries Label

$

$

Not available

63

Homelite 308862001

Filter Screen

$

$

Currently unavailable

64

Homelite 308861003

Inlet Tube

$21.99

$

In Stock, only 2 left!

0

65

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

66

Homelite 308452002

Detergent Suction Kit

$5.99

$

Usually ships in 3-7 days

0

67

Homelite 940473002

Warning Hang Tag

$

$

Not available

68

Homelite 940517007

Lubricant Label

$1.99

$

Usually ships in 3-7 days

0

Oil (SAE 10W30, 18 oz)

Note: Not Shown, Purchase Locally

$

$

Not available

Homelite 988000366

Operator's Manual

$

$

Not available
