UT-74127-D - Homelite 20" Chainsaw, 45cc Engine Housing - Fuel Tank - Oil Tank Parts Diagram

20" Chainsaw, 45cc

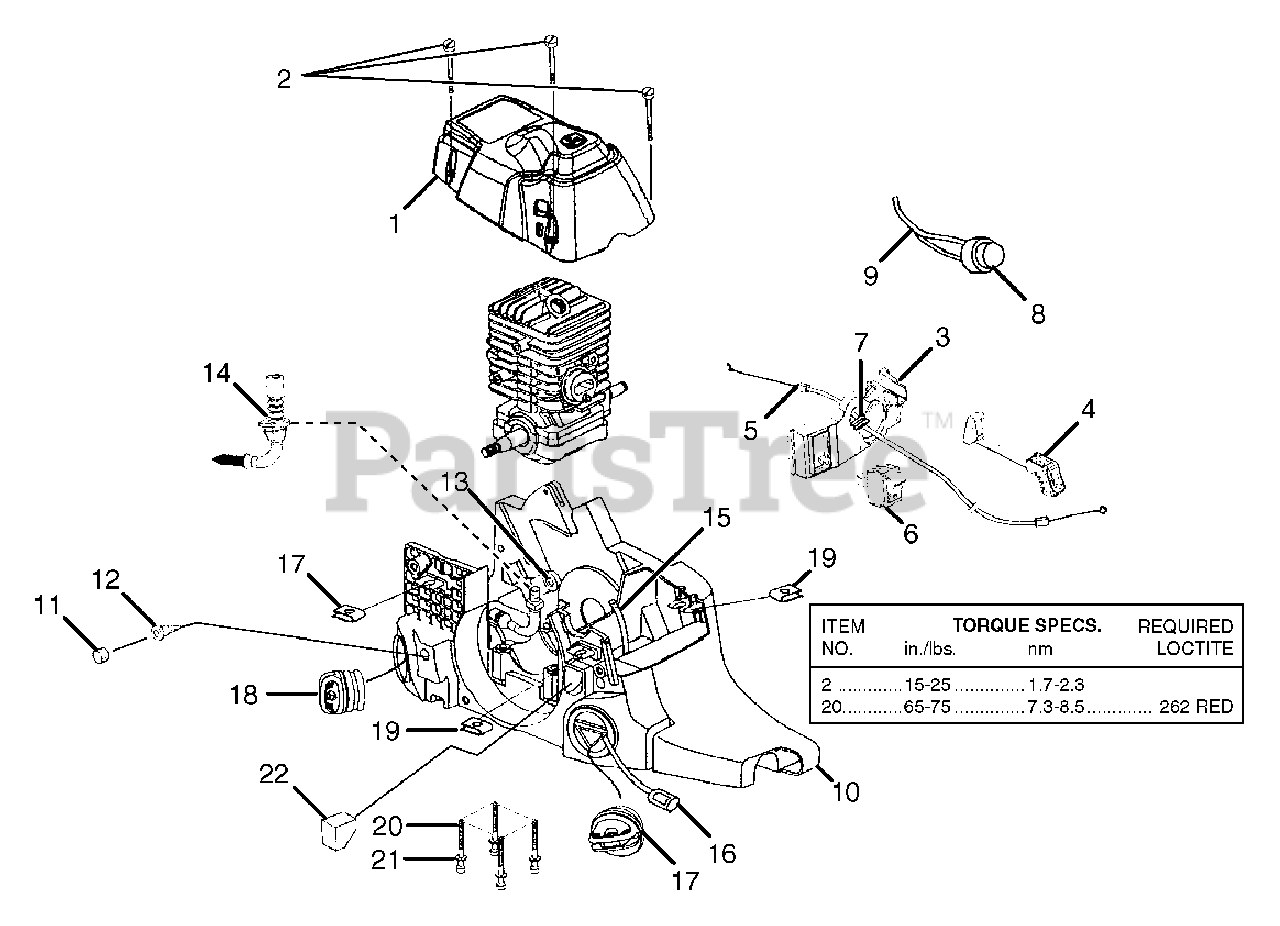

Engine Housing - Fuel Tank - Oil Tank Parts Diagram

  • Title
1

Homelite 984363001

CYLINDER COVER
(Superseded to 518042001)

$

$

Not available

2

Homelite 07597

SCREW (10-16 X 1.5 PAN HD.)
(Superseded to 660636001)

$

$

Not available

3

Homelite PS06119

CONTROL PANEL

$

$

Not available

4

Homelite PA01644

ROD, CHOKE

$

$

Not available

5

Homelite PS04377

THROTTLE CABLE
(Superseded to 900885001)

$

$

Not available

6

Homelite PS06163

SWITCH, ROCKER

$3.99

$

Usually ships in 3-7 days

0

7

Homelite 07587

GROMMET - SPLIT
(Superseded to 570227001)

$1.99

$

In Stock, only 1 left!

0

8

Homelite PS06164

PRIMER BULB
(Superseded to 308088001)

$

$

Not available

9

Homelite 07454

RUBBER TUBING (5-1/2 in.)

$

$

Not available

10

Homelite 985028001

CHASSIS ASSEMBLY (45CC)
(Superseded to 985250001)

Note: Includes items 11-18

$41.99

$

Usually ships in 3-7 days

0

11

N/A

ELEMENT, FILTER

$

$

Not available

12

N/A

DUCK BILL VALVE

$

$

Not available

13

N/A

OIL OUTLET GROMMET

$

$

Not available

14

Homelite PA01037

OIL INTAKE TUBE W/FILTER

$

$

Not available

15

Homelite 07454

RUBBER TUBING (8-1/2 in.)

$

$

Not available

16

Homelite PS03380

FUEL FILTER
(Superseded to 300759003)

$

$

Not available

17

N/A

FUEL CAP W/RETAINER

$

$

Not available

18

N/A

OIL CAP W/RETAINER

$

$

Not available

N/A

GUIDE BAR BOLT

Note: (NOT SHOWN)

$

$

Not available

19

Homelite 07598

SPEED NUT

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 82527

SCREW (10-24 x 2 in.)
(Superseded to 660622001)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 84008

WASHER
(Superseded to 671080001)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite PS05070

PRE FILTER

$

$

Not available

Homelite 984287001

SOUND LEVEL DECAL

$1.99

$

Usually ships in 3-7 days

0

Homelite 06976

CE DECAL

$1.99

$

Usually ships in 3-7 days

0

Homelite 983840001

ZIP START DECAL DECALS: 16 in. (38cc)

$

$

Not available

Homelite PS06324

SAFETY
(Superseded to 940299425)

$

$

Not available

Homelite PS00340

CHAIN BRAKE
(Superseded to 985271001)

$1.49

$

Usually ships in 3-7 days

0

Homelite 984346001

DRIVECASE COVER

$1.99

$

Usually ships in 3-7 days

0

Homelite 984343001

STARTER HOUSING DECALS: 18 in. (45cc)

$

$

Not available

Homelite PS06324

SAFETY
(Superseded to 940299425)

$

$

Not available

Homelite PS00340

CHAIN BRAKE
(Superseded to 985271001)

$1.49

$

Usually ships in 3-7 days

0

Homelite 984347001

DRIVECASE COVER

$

$

Not available

Homelite 984344001

STARTER HOUSING DECALS: 20 in. (45cc)

$

$

Not available

Homelite PS06324

SAFETY
(Superseded to 940299425)

$

$

Not available

Homelite PS00340

CHAIN BRAKE
(Superseded to 985271001)

$1.49

$

Usually ships in 3-7 days

0

Homelite 984347001

DRIVECASE COVER

$

$

Not available

Homelite 984345001

STARTER HOUSING

$

$

Currently unavailable
