UT-74127-D - Homelite 20" Chainsaw, 45cc Carburetor - Air Filter Parts Diagram

20" Chainsaw, 45cc

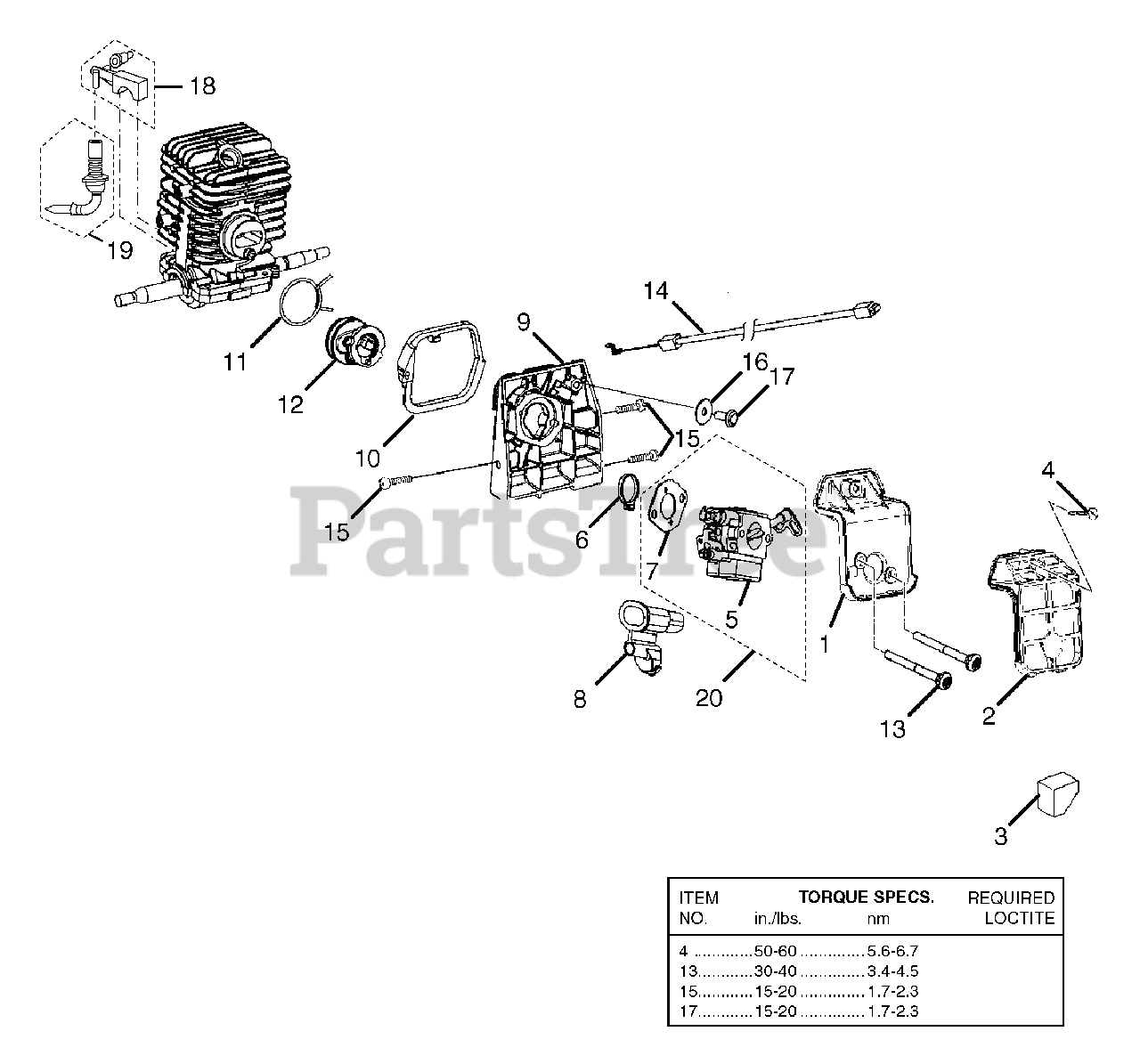

Carburetor - Air Filter Parts Diagram

  • Title

1

Homelite PA01284

AIR FILTER BASE

$

$

Not available

2

Homelite PS02798

AIR FILTER COVER
(Superseded to 518049002)

$

$

Not available

3

Homelite PS05070

PRE FILTER (IN ENGINE HOUSING)

$

$

Not available

4

Homelite 82617

SCREW (8-16 x 5/8 in.)

$1.99

$

In Stock, only 2 left!

0

5

Homelite 985208001

CARBURETOR

$

$

Currently unavailable

6

Homelite PS04375

PLATE, CARBURETOR

$

$

Not available

7

Homelite PS05105

GASKET, CARBURETOR

$2.49

$

Usually ships in 3-7 days

0

8

Homelite PS04371

GROMMET, CARBURETOR
(Superseded to 570242001)

$

$

Not available

9

Homelite PA01057

ADAPTOR, CARBURETOR

$

$

Not available

10

Homelite PS04374

SEAL-CARB. ADAPTOR

$2.49

$

Usually ships in 3-7 days

0

11

Homelite PS04309

CLAMP

$2.49

$

Usually ships in 3-7 days

0

12

Homelite PS02794

INTAKE BOOT

$13.99

$

Usually ships in 3-7 days

0

13

Homelite PS04446

SCREW (10-32 x 1.75 mm)

$

$

Not available

14

Homelite PS04377

THROTTLE CABLE
(Superseded to 900885001)

$

$

Not available

15

Homelite 82563

SCREW (TORX)

$1.99

$

In Stock, Qty 6

0

16

Homelite 12789

WASHER

$

$

Not available

17

Homelite 82623

SCREW
(Superseded to 660634001)

$1.99

$

In Stock, Qty 20+

0

18

Homelite PA01396

OIL PUMP ASSEMBLY

$

$

Not available

19

Homelite PA01037

OIL INTAKE W/FILTER

$

$

Not available

20

Homelite 984888001

CARBURETOR ASSEMBLY
(Superseded to UP08662A)

$

$

Not available
