UT-74123-D - Homelite 16" Chainsaw, 38cc Handles Parts Diagram

16" Chainsaw, 38cc

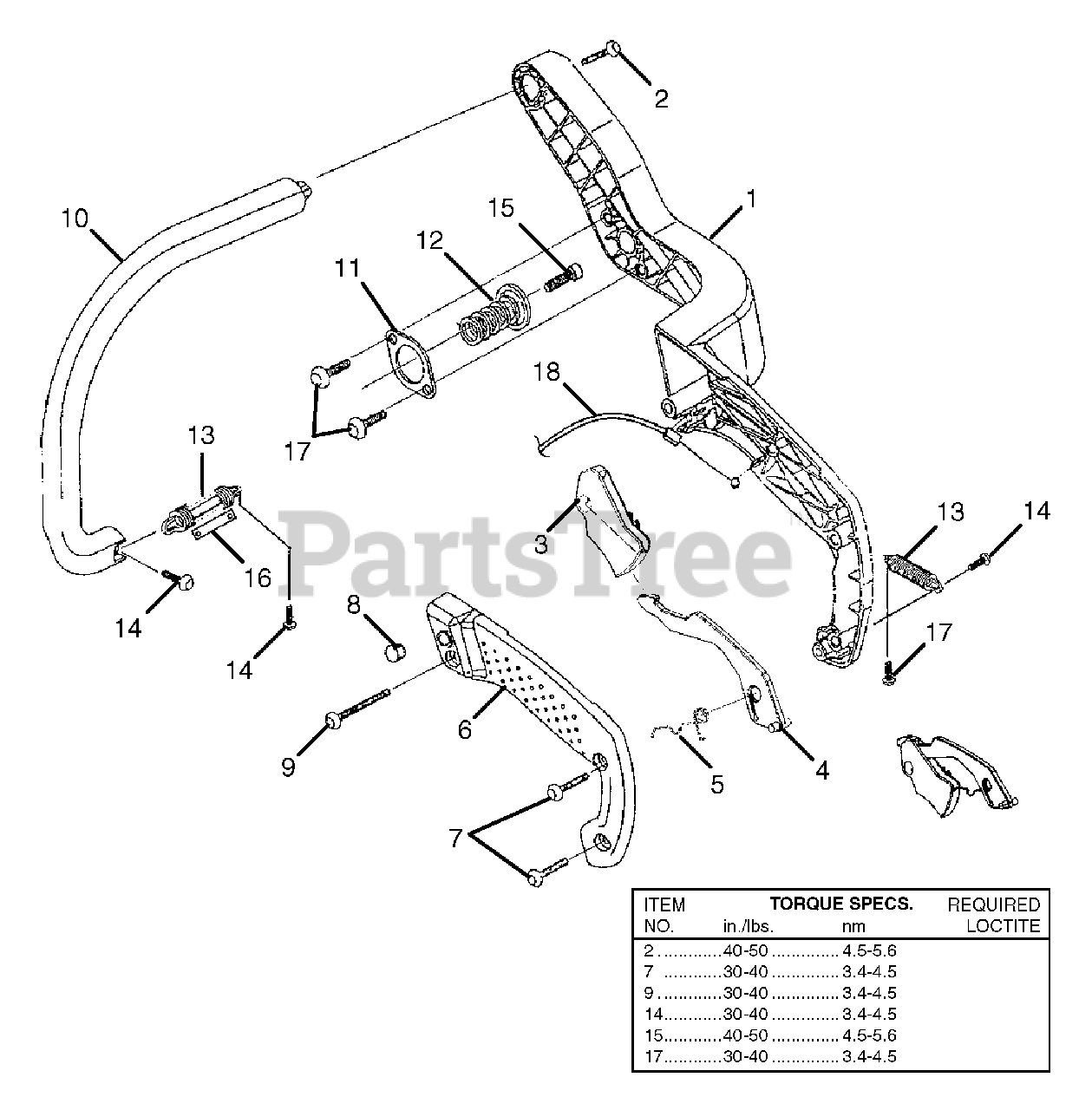

Handles Parts Diagram

  • Title
1

Homelite 06870

REAR HANDLE
(Superseded to 511721004)

$11.99

$

Usually ships in 3-7 days

0

2

Homelite 82615

SCREW (12-14 x 1-1/2 in.)

$4.99

$

Usually ships in 3-7 days

0

3

Homelite PS06110

TRIGGER, THROTTLE
(Superseded to 518052001)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite PS06111

THROTTLE LOCK OUT

$

$

Not available

5

Homelite PS04914

TORSION SPRING

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 06871

HANDLE COVER

$3.49

$

Usually ships in 3-7 days

0

7

Homelite 82563

SCREW (10-14 x 3/4 in.)

$1.99

$

In Stock, Qty 6

0

8

Homelite PS04932

PLUG-PLASTIC

$

$

Not available

9

Homelite 82622

SCREW (10-14 x 1-3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite PS03985

FRONT HANDLE KIT
(Superseded to UP07862A)

$

$

Not available

2

Homelite 82615

SCREW (12-14 x 1-1/2 in.)

$4.99

$

Usually ships in 3-7 days

0

11

Homelite 07384

ISOLATOR PLATE

$

$

Not available

12

Homelite PS05199

UPPER ISOLATION SPRING

$1.49

$

Usually ships in 3-7 days

0

13

Homelite PS05217

SPRING - ISOLATOR
(Superseded to 671101001)

$1.49

$

Usually ships in 3-7 days

0

Homelite PS05239

SHEET INSTRUCTIONS

$

$

Not available

14

Homelite 82621

SCREW (10-14 x 5/8 in.)

$

$

Not available

15

Homelite 82597

SCREW (10-24 x 5/8 in.)
(Superseded to 660630001)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 01812A

SPRING RETAINER
(Superseded to 631050001)

$

$

Not available

17

Homelite 82541

SCREW (10-14 x 1/2 in.)

$1.99

$

In Stock, only 3 left!

0

18

Homelite PS04377

THROTTLE CABLE
(Superseded to 900885001)

$

$

Not available
