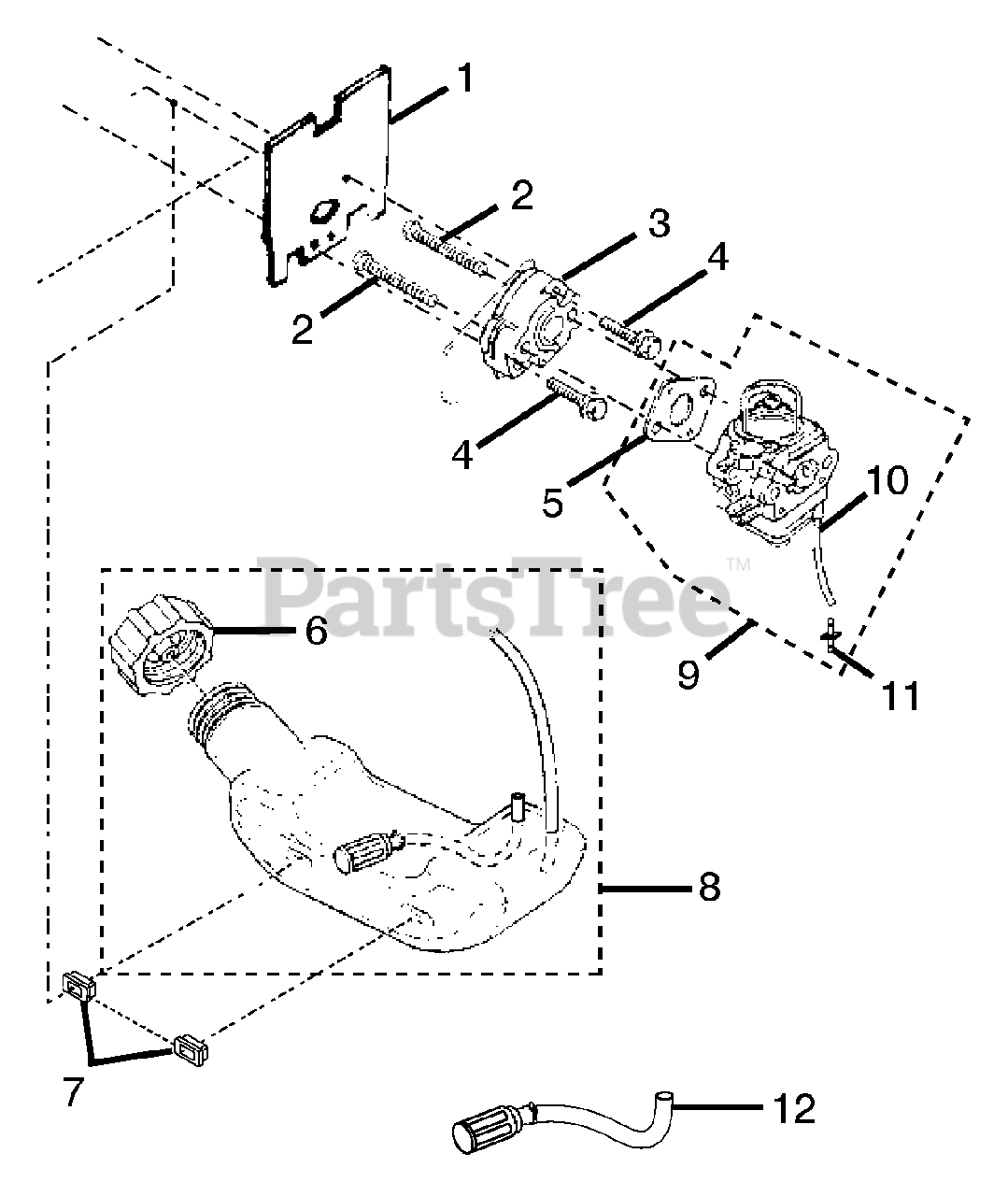

UT-70026 - Homelite Curved Shaft Trimmer Fuel Tank & Carburetor Parts Diagram

Curved Shaft Trimmer

Fuel Tank & Carburetor Parts Diagram

  • Title

1

Homelite 06900A

HEAT DAM GASKET

$

$

Not available

2

Homelite 04474

CARBURETOR BOLT

$

$

Not available

3

Homelite 98768A

HEAT DAM
(Superseded to 518070001)

$

$

Not available

4

Homelite 093221

PAN HEAD SEMS SCREW
(Superseded to 660662001)

$

$

Not available

5

Homelite 98766A

CARBURETOR GASKET
(Superseded to 900994004)

$

$

Not available

6

Homelite A09116

FUEL CAP
(Superseded to 300758006)

$

$

Not available

7

Homelite 98792

BUMPER

$

$

Not available

8

Homelite PA01624

FUEL TANK ASSEMBLY
(Superseded to 308181004)

Note: WHEN ORDERING FUEL TANK ASSEMBLY(ITEM NUMBER 8) ,ALSO ORDER BUMPERS(ITEM NUMBER 7)

$

$

Not available

9

Homelite 984528001

CARBURETOR ASSEMBLY KIT

$

$

Not available

10

Homelite 0143910

RUBBER HOSE (635 mm)

$1.99

$

In Stock, Qty 5

0

11

Homelite 07332

INLINE FUEL FITTING
(Superseded to 985304001)

$1.99

$

In Stock, Qty 6

0

12

Homelite 985077001

FUEL FILTER KIT
(Superseded to 000998272)

Note: (INCLUDED ON FUEL TANK ASSEMBLY)

$9.49

$

Usually ships in 3-7 days

0
