UT-60526 - Homelite Cultivator Figure A Parts Diagram

Cultivator

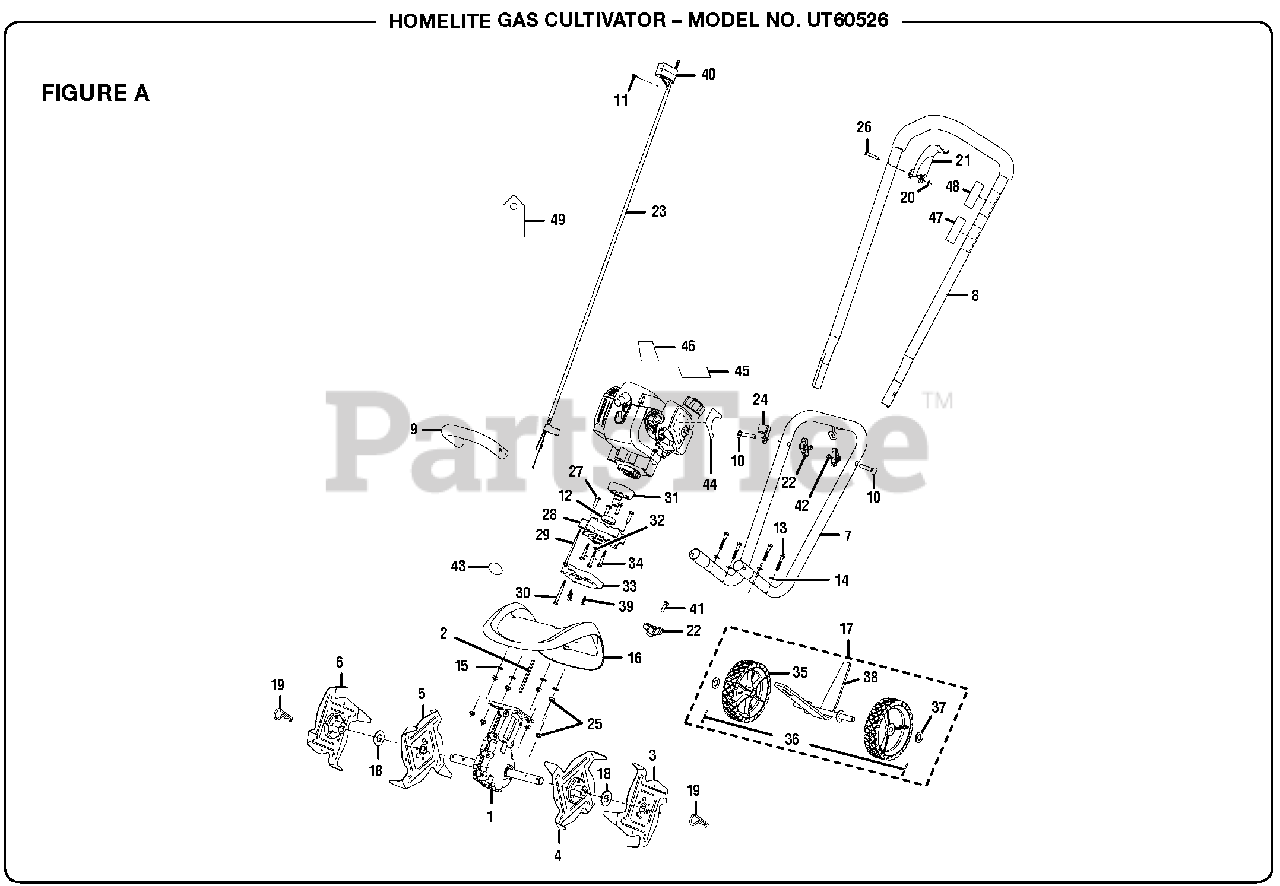

Figure A Parts Diagram

  • Title

1

Homelite 220101001

Gear Box Assembly

$

$

Not available

2

Homelite 620888001

Drive Shaft

$

$

Not available

3

Homelite 308693001

Tine A, Outer Right

$23.99

$

Usually ships in 3-7 days

0

4

Homelite 308693002

Tine B, Inner Right

$

$

Not available

5

Homelite 308693003

Tine C, Inner Left

$23.99

$

Usually ships in 3-7 days

0

6

Homelite 308693004

Tine D, Outer Left
(Superseded to UT15550A-28)

$23.99

$

Usually ships in 3-7 days

0

7

Homelite 638717001

Lower Handle

$

$

Not available

8

Homelite 308629002

Upper Handle Assembly

$

$

Not available

9

Homelite 310263001

Front Handle

$

$

Not available

10

Homelite 661527001

Carriage Bolt (M8 x 60 mm)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 660669001

Screw (8-16 x 1/2 in.)

$1.49

$

In Stock, only 3 left!

0

12

Homelite 638660001

Ball Bearing (6003zz)

$5.49

$

In Stock, only 1 left!

0

13

Homelite 660643001

Bolt (1/4-20 x 1.5 in.)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 690696001

Washer (Curved)
(Superseded to 6969601)

$1.99

$

In Stock, only 3 left!

0

15

Homelite 678013001

Washer

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 310261001

Tine Shield Assembly

$

$

Not available

17

Homelite 308213005

Wheel/Drag Stake Assembly (Incl. Key No. 35-38)

$

$

Not available

18

Homelite 900755001

Felt Washer
(Superseded to UT15550A-36)

$1.99

$

In Stock, Qty 8

0

19

Homelite 638001004

Clevis Pin
(Superseded to 3320543G)

$1.99

$

In Stock, Qty 5

0

20

Homelite 678135001

E-Clip

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 518256002

Trigger

$

$

Not available

22

Homelite 519790003

Knob (M8)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 308330004

Throttle Cable Assembly (Incl. Key No. 40)

$

$

Not available

24

Homelite 519807001

Cable Clip

$

$

Not available

25

Homelite 678132001

Lock Nut (1/4-20)

$

$

Not available

26

Homelite 638132001

Pin

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 660643002

Bolt (1/4-20 x 1 in.)
(Superseded to 82496)

$

$

Not available

28

Homelite 519794001

Engine Adapter

$3.99

$

Usually ships in 3-7 days

0

29

Homelite 660970010

Screw (M4 x 95 mm)

$1.49

$

In Stock, only 1 left!

0

30

Homelite 660934002

Screw (M5 x 60 mm T.F.)

$

$

Not available

31

Homelite 638566001

Clutch Drum

$

$

Not available

32

Homelite 678187002

Clip

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 519811001

Plate Adapter

$2.99

$

Usually ships in 3-7 days

0

34

Homelite 660466003

Screw (M5 x 40 mm T.F.)

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 308236002

Wheel Assembly (6 in. Dia.)

$9.49

$

Usually ships in 3-7 days

0

36

Homelite 638635001

Cotter Pin

$

$

Not available

37

Homelite 638017002

Washer

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 310260001

Frame Assembly

$20.99

$

Usually ships in 3-7 days

0

39

Homelite 661606001

Screw (M5 x 19 mm Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 760679001

Switch

$

$

Not available

41

Homelite 660973014

Bolt (M8 x 25 mm Hex Hd)

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 678355002

Hex Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 950119010

Foot Warning Label

$

$

Not available

44

Homelite 941484003

Starting Label

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 940974010

Combustion Warning Label

$

$

Not available

46

Homelite 941484004

Model Label

$

$

Not available

47

Homelite 940654082

Warning Label

$

$

Not available

48

Homelite 941484001

Icon Warning

$

$

Not available

49

Homelite 941485007

Hang Tag

$

$

Not available

50

Homelite 310266001

Airbox Cover

Note: (Not Shown)

$

$

Not available

51

Homelite 901688001

Filter

Note: (Not Shown)

$

$

Not available

52

Homelite 570367001

Airbox Seal

Note: (Not Shown)

$

$

Not available

53

Homelite 300758006

Fuel Cap

Note: (Not Shown)

$

$

Not available

54

Homelite 870174001

Spark Plug (Champion RCJ-6Y)

Note: (Not Shown), Purchase Locally

$4.99

$

In Stock, Qty 20+

0

Homelite 987000551

Operator' s Manual

Note: (Not Shown)

$

$

Not available

Homelite 987000571

Replacement Parts List

Note: (Not Shown)

$

$

Not available
