UT-49102 - Homelite Electric Log Splitter General Assembly (Part 2) Parts Diagram

Electric Log Splitter

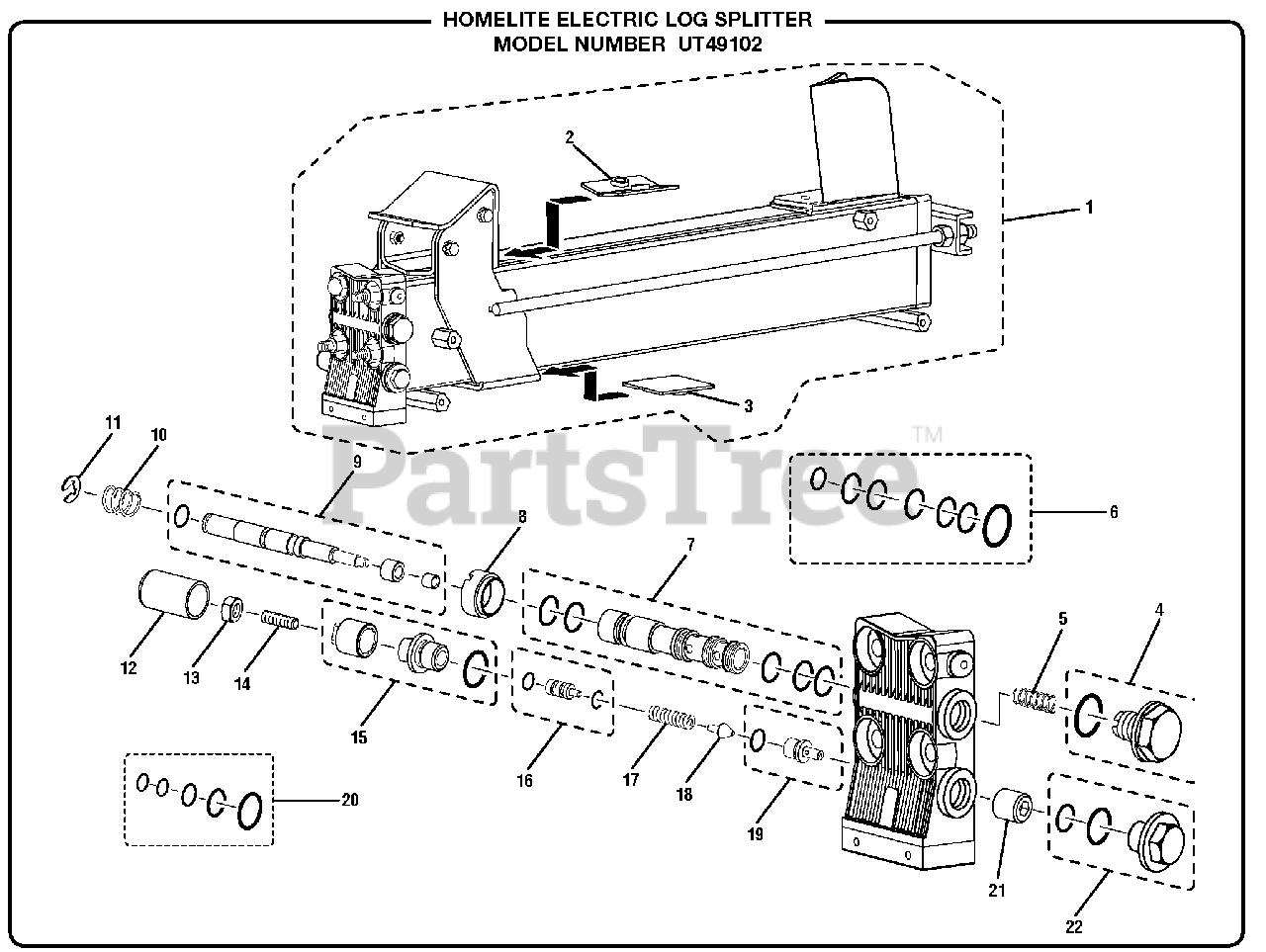

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 31101132G

Main Body Assembly

$

$

Not available

2

Homelite 34107131G

Upper Wear Pad

$

$

Not available

3

Homelite 34110131G

Lower Wear Pad

$

$

Not available

4

Homelite 31111132G

Valve Plug Assembly

$

$

Not available

5

Homelite 33903131G

Compression Spring

$1.49

$

In Stock, only 1 left!

0

6

Homelite 31112132G

O-ring Kit

$

$

Not available

7

Homelite 31113132G

Valve Body Assembly

$

$

Not available

8

Homelite 33231131G

Valve Body Retainer

$

$

Not available

9

Homelite 31114132G

Valve Assembly

$

$

Not available

10

Homelite 33902131G

Compression Spring

$

$

Not available

11

Homelite 32901131G

Retaining Ring

$

$

Not available

12

Homelite 34101131G

Pressure Relief Valve Cover

$

$

Not available

13

Homelite 3290205G

Nut (M6)

$1.49

$

In Stock, only 2 left!

0

14

Homelite 32212131G

Pressure Relief Screw (M6 x 20 mm)

$

$

Not available

15

Homelite 31115132G

Relief Valve Bushing Assembly

$

$

Not available

16

Homelite 31116132G

Adjustment Pin Assembly

$

$

Not available

17

Homelite 33901131G

Compression Spring

$

$

Not available

18

Homelite 33202131G

Pressure Relief Valve

$

$

Not available

19

Homelite 33201131G

Relief Valve Seat

$

$

Not available

20

Homelite 31118132G

Pressure Relief Valve O-ring Kit

$

$

Not available

21

Homelite 32213131G

Valve Seat Retainer

$

$

Not available

22

Homelite 31119132G

Pressure Relief Valve Plug Assembly

$

$

Not available
