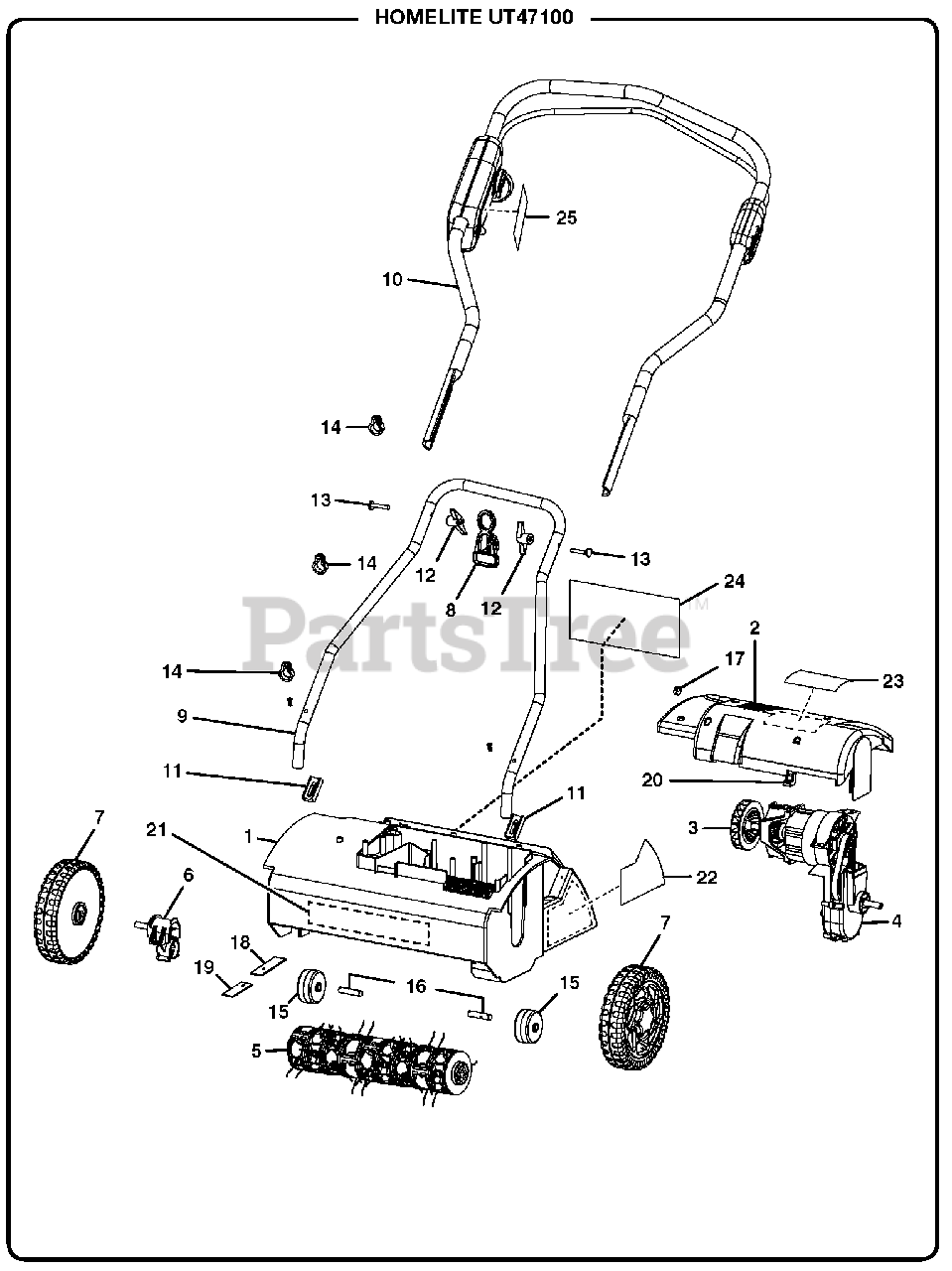

UT-47100 (099739001) - Homelite Dethatcher, Electric General Assembly Parts Diagram

Dethatcher, Electric

General Assembly Parts Diagram

  • Title

1

Homelite 099739001001

Housing

$

$

Not available

2

Homelite 099739001002

Motor Cover

$

$

Not available

3

Homelite 099739001003

Motor Assembly

$

$

Not available

4

Homelite 099739001004

Gear Case Assembly

$

$

Not available

5

Homelite 099739001005

Tines Assembly

$

$

Not available

6

Homelite 099739001006

Bracket

$

$

Not available

7

Homelite 099739001007

Wheel Assembly

$

$

Not available

8

Homelite 099739001009

Cord Retainer

$

$

Not available

9

Homelite 099739001015

Lower Handle

$

$

Not available

10

Homelite 099739001016

Upper Handle Assembly

$

$

Not available

11

Homelite 099739001017

Rubber Cushion

$

$

Not available

12

Homelite 099739001018

Knob

$

$

Not available

13

Homelite 099739001019

Bolt (need size)

$

$

Not available

14

Homelite 099739001020

Cable Clip

$

$

Not available

15

Homelite 099739001021

Rear Wheel Assembly

$

$

Not available

16

Homelite 099739001022

Shaft (Rear Wheel)

$

$

Not available

17

Homelite 099739001023

Strain Relief

$

$

Not available

18

Homelite 099739001024

Cover (Large)

$

$

Not available

19

Homelite 099739001025

Cover (Small)

$

$

Not available

20

Homelite 099739001026

Motor Support

$

$

Not available

21

Homelite 940705263

Front Logo Label

$

$

Currently unavailable

22

Homelite 940851043

Height Adjustment Label

$

$

Currently unavailable

23

Homelite 940851044

Performance Label

$

$

Currently unavailable

24

Homelite 940657160

Warning Icon/Data Label

$

$

Currently unavailable

25

Homelite 940851045

Start Label

$

$

Currently unavailable

Homelite 991000184

Operator's Manual

Note: NOT SHOWN

$

$

Not available
