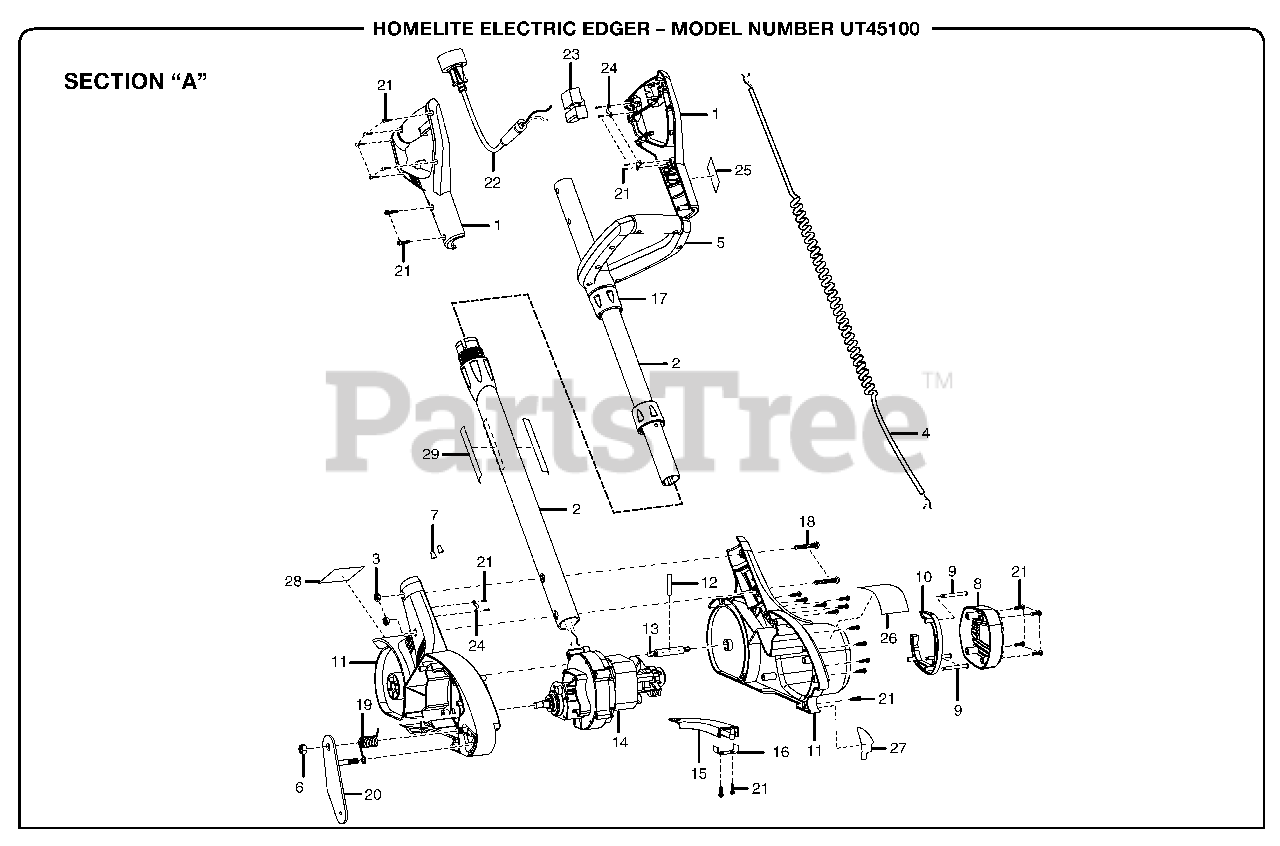

UT-45100 - Green Machine Electric Edger Section "A" Parts Diagram

Electric Edger

Section "A" Parts Diagram

  • Title

1

Homelite 31302261G

Handle Assembly

$

$

Not available

2

Homelite 31102261G

Pole Assembly

$

$

Not available

3

Homelite 32907152G

Hex Nut

Note: (M6) Purchase locally

$

$

Not available

4

Homelite 36901261G

Spring Cord Assembly

$

$

Not available

5

Homelite 31303261G

Auxiliary Handle Assembly

$

$

Not available

6

Homelite 32208261G

Lock Nut

Note: (M8)

$

$

Not available

7

Homelite 36511154G

Wire Nut

$

$

Not available

8

Homelite 34104261G

Motor Cover

$

$

Not available

9

Homelite 3220351G

Screw

Note: (M4 x 30 mm)

$

$

Not available

10

Homelite 34105261G

Air Damper

$

$

Not available

11

Homelite 34101261G

Housing Assembly

$

$

Currently unavailable

12

Homelite 32988261G

Axle Pin

$

$

Not available

13

Homelite 33201261G

Axle

$

$

Not available

14

Homelite 31101261G

Motor Assembly

$

$

Not available

15

Homelite 34108261G

Air Outlet

$

$

Not available

16

Homelite 34116261G

Air Outlet Cover

$

$

Not available

17

Homelite 34114152G

Collar

$

$

Not available

18

Homelite 32901163G

Screw

Note: (M6 x 41 mm) Purchase locally

$

$

Not available

19

Homelite 33401261G

Torsion Spring

$

$

Not available

20

Homelite 33302261G

Front Wheel Arm

$

$

Not available

21

Homelite 3220505G

Screw

Note: (M4 x 16 mm) Purchase locally

$

$

Not available

22

Homelite 36401261G

Power Cord

$

$

Not available

23

Homelite 36301261G

Switch

$

$

Not available

24

Homelite 3410302G

Cord Clamp

$

$

Not available

25

Homelite 38103261G

Handle Label

$

$

Not available

26

Homelite 38101261G

Data Label

$

$

Not available

27

Homelite 38107261G

Depth Adjustment Label

$

$

Not available

28

Homelite 38106261G

Curb Runner Label

$

$

Not available

29

Homelite 38102261G

Logo Label

$

$

Not available

Homelite 987000304

Operator's Manual

$

$

Not available
