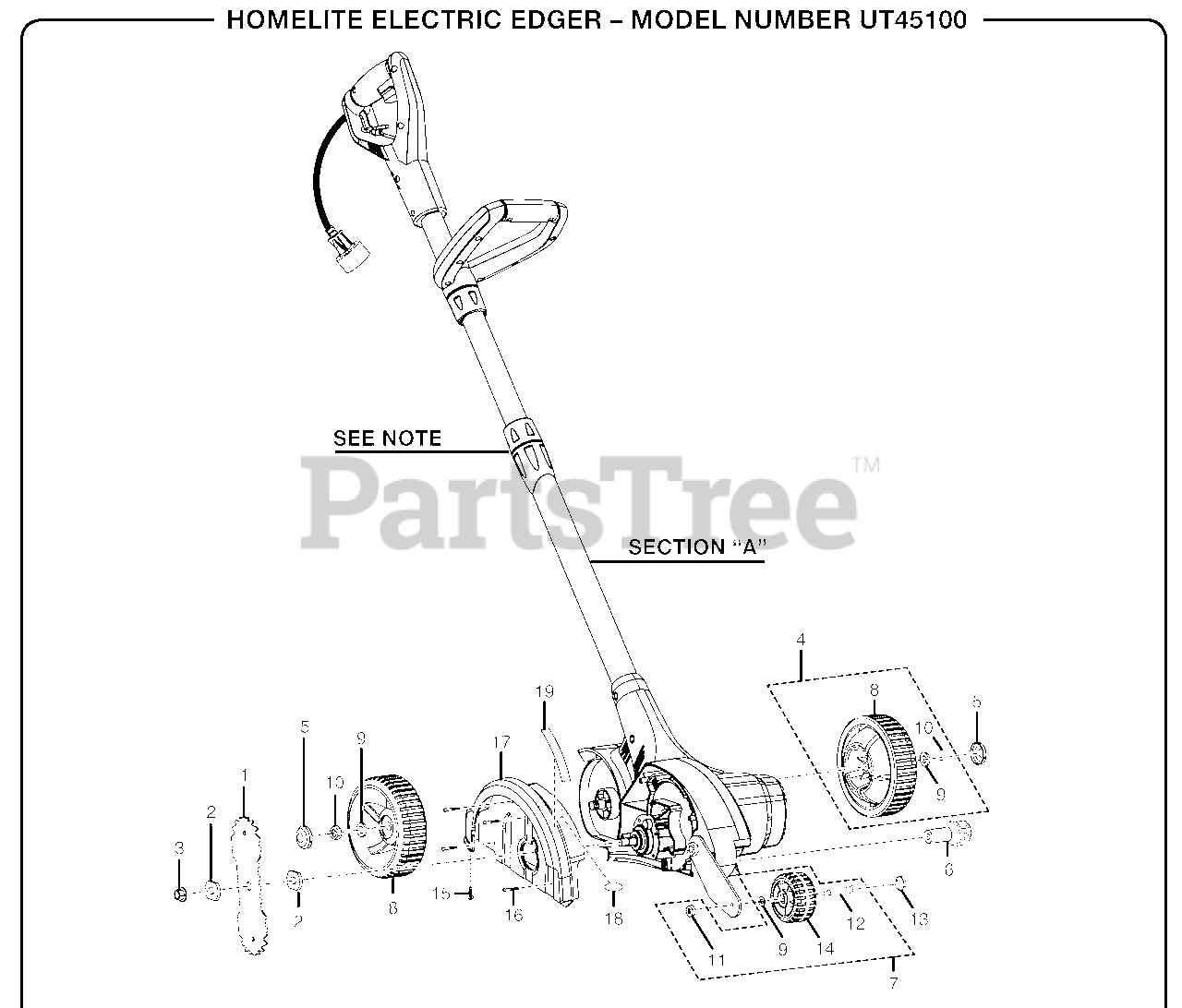

UT-45100 - Green Machine Electric Edger General Assembly Parts Diagram

Electric Edger

General Assembly Parts Diagram

  • Title

1

Homelite 33301261G

Blade

$

$

Not available

2

Homelite 3330418G

Blade Washer

$

$

Not available

3

Homelite 3221037G

Blade Nut

Note: (M10)

$

$

Not available

4

Homelite 31202261G

Rear Wheel Set

Note: (Incl. Key Nos. 8-10)

$

$

Not available

5

Homelite 34117261G

Rear Wheel Cap

$

$

Not available

6

Homelite 34106261G

Depth Adjustment Knob

$

$

Not available

7

Homelite 31203261G

Front Wheel Set

Note: (Incl. Key Nos. 9, 11 - 12 and 14)

$

$

Not available

8

Homelite 31204261G

Wheel

$

$

Not available

9

Homelite 33304261G

Washer

Note: (M8) Purchase locally

$

$

Not available

10

Homelite 32208261G

Lock Nut

Note: (M8) Purchase locally

$

$

Not available

11

Homelite 32907152G

Lock Nut

Note: (M6) Purchase locally

$

$

Not available

12

Homelite 33283261G

Front Wheel Axle

$

$

Not available

13

Homelite 34188261G

Front Wheel Cap

$

$

Not available

14

Homelite 34111261G

Front Wheel

$

$

Not available

15

Homelite 3220505G

Screw

Note: (M4 x 16 mm) Purchase locally

$

$

Not available

16

Homelite 3220133G

Screw

Note: (M4 x 50 mm) Purchase locally

$

$

Not available

17

Homelite 31108261G

Guard Assembly

Note: (Includes Key Nos. 18-19)

$

$

Not available

18

Homelite 38108261G

Warning Label

$

$

Not available

19

Homelite 38104261G

Cutting Edge Label

$

$

Not available
