UT-44180 - Homelite Extended Reach Hedge Trimmer Figure B Parts Diagram

Extended Reach Hedge Trimmer

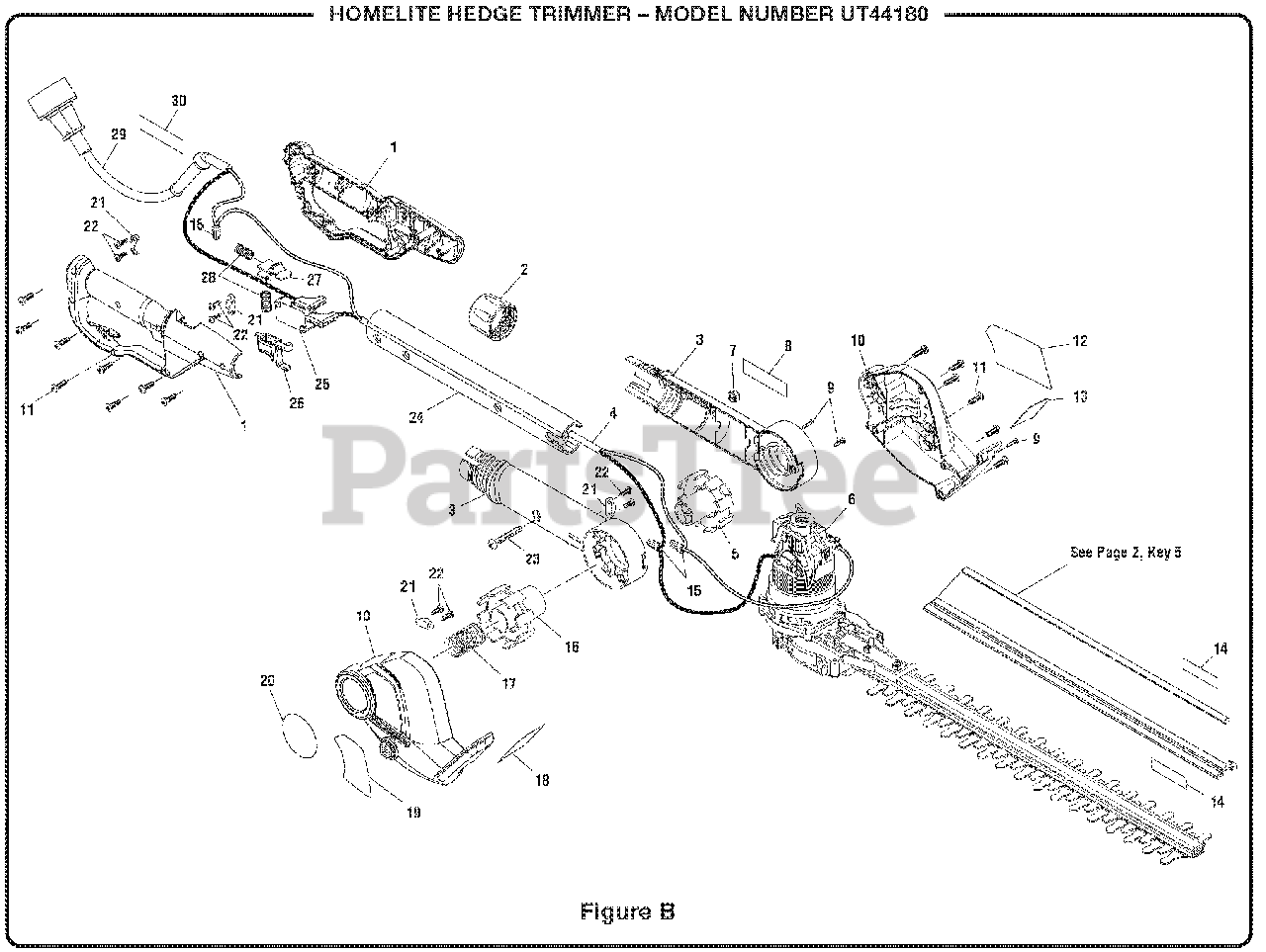

Figure B Parts Diagram

  • Title

1

Homelite 31302152BG

Handle Assembly

$

$

Not available

2

Homelite 34114152CG

Collar

$

$

Not available

3

Homelite 31102445G

Pivot Housing Assembly

$

$

Not available

4

Homelite 31306171G

Spring Cord Assembly

$

$

Not available

5

Homelite 34103171AG

Pivot Button

$

$

Not available

6

Homelite 31305445G

Motor w/Blade Assembly

$

$

Not available

7

Homelite 32907152G

Lock Nut (M6)

$

$

Not available

8

Homelite 099999499051

Icon Label

$

$

Not available

9

Homelite 3220203G

Screw (M2.9 x 12 mm)

$

$

Not available

10

Homelite 31101445G

Motor Housing Assembly

$

$

Not available

11

Homelite 3220313G

Screw (M4 x 14 mm)

$0.99

$

In Stock, Qty 5

0

12

Homelite 099941002900

Data Label

$

$

Not available

13

Homelite 099941002902

Left Danger Label

$

$

Not available

14

Homelite 099999499054

Deflector Warning Label

$

$

Not available

15

Homelite 36504161G

Wire Nut

$

$

Not available

16

Homelite 34104171AG

Pivot Lock

$

$

Not available

17

Homelite 33903171G

Compression Spring

$

$

Not available

18

Homelite 099941002903

Right Danger Label

$

$

Not available

19

Homelite 099941002901

Logo Label

$

$

Not available

20

Homelite 099941002904

Pivot Label

$

$

Not available

21

Homelite 3410801G

Cord Clamp

$

$

Not available

22

Homelite 3220345G

Screw (M3.5 x 12 mm)

$

$

Not available

23

Homelite 32901163G

Screw (M6 x 41 mm)

$

$

Not available

24

Homelite 34110445G

Tube

$

$

Not available

25

Homelite 36303152G

Switch

$

$

Not available

26

Homelite 34118152G

Switch Trigger

$

$

Not available

27

Homelite 34110152G

Lock Off Button

$

$

Not available

28

Homelite 33402161G

Compression Spring

$

$

Not available

29

Homelite 31305163G

Power Cord Assembly

$

$

Not available

30

Homelite 099941002910

Cord Warning Label

$

$

Currently unavailable

Homelite 987000834

Operator's Manual

$

$

Not available
