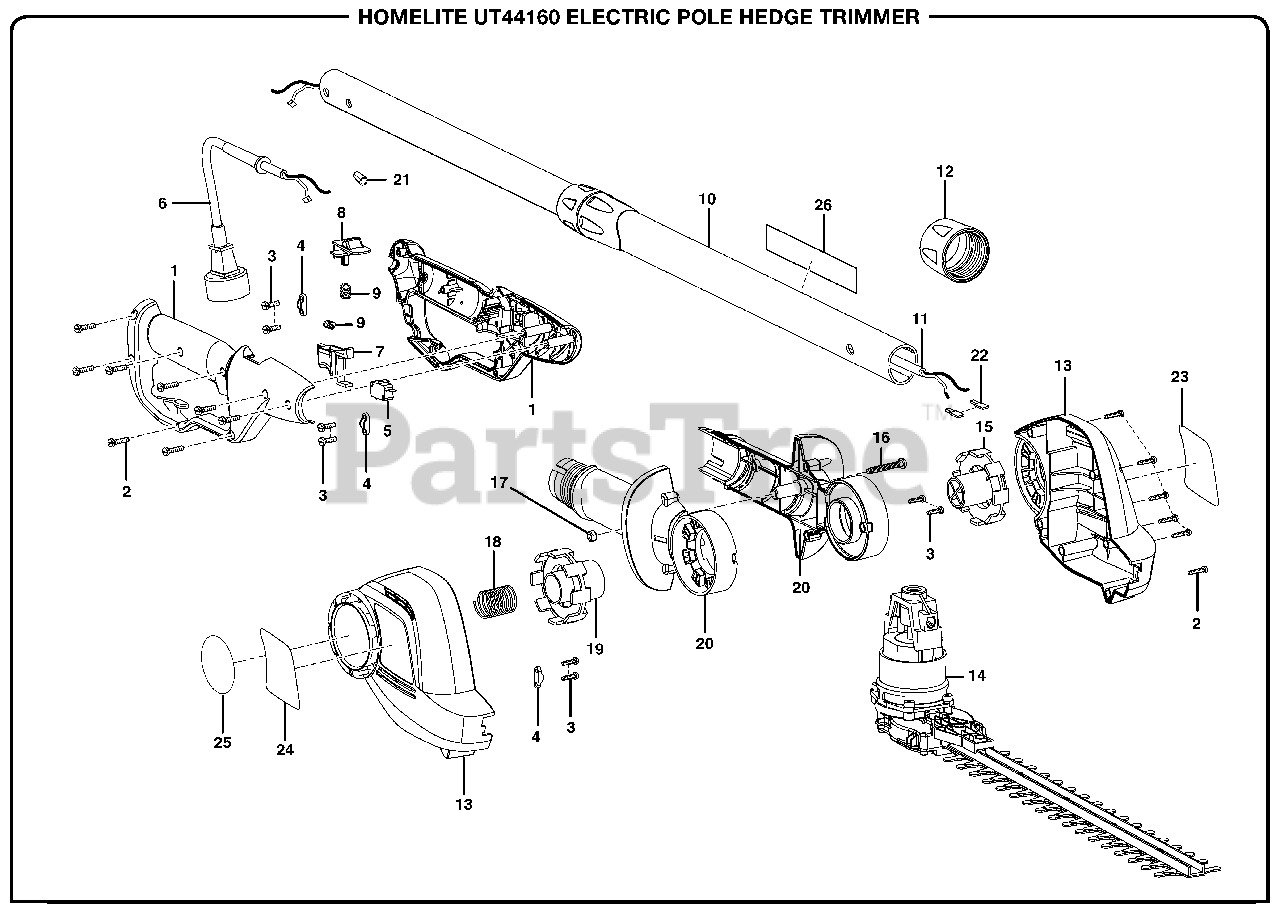

UT-44160 - Homelite Electric Pole Hedge Trimmer General Assembly Parts Diagram

Electric Pole Hedge Trimmer

General Assembly Parts Diagram

  • Title

1

Homelite 31302152G

Handle Assembly

$

$

Not available

2

Homelite 3220505G

Screw

Note: (M4 x 16 mm) Purchase locally

$

$

Not available

3

Homelite 3220905G

Screw

Note: (M4 x 12 mm) Purchase locally

$

$

Not available

4

Homelite 3410801G

Cord Clamp

$

$

Not available

5

Homelite 36303152G

Switch

$

$

Not available

6

Homelite 31305163G

Power Cord

$

$

Not available

7

Homelite 34118152G

Switch Trigger

$

$

Not available

8

Homelite 34110152G

Lock Off Button

$

$

Not available

9

Homelite 33402161G

Compression Spring

$

$

Not available

10

Homelite 31304163G

Pole Assembly

Note: (Inc. Part Number 26)

$

$

Not available

11

Homelite 31306163G

Spring Cord Assembly

$

$

Not available

12

Homelite 34107163G

Collar

$

$

Not available

13

Homelite 31301163G

Motor Housing Assembly

$

$

Not available

14

Homelite 31302163G

Motor w/Blade Assembly

$

$

Not available

15

Homelite 34103163G

Left Pivot Button

$

$

Not available

16

Homelite 32901163G

Bolt

Note: (M6 x 41 mm) Purchase locally

$

$

Not available

17

Homelite 32907152G

Lock Nut

Note: (M6) Purchase locally

$

$

Not available

18

Homelite 33903163G

Compression Spring

$

$

Not available

19

Homelite 34106163G

Right Pivot Button
(Superseded to 34104163G)

$

$

Not available

20

Homelite 31303163G

Pole Housing Assembly

$

$

Not available

21

Homelite 36504161G

Wire Nut

$

$

Not available

22

Homelite 3650135G

Terminal

Note: (B)

$

$

Not available

23

Homelite 38102163AG

Data Label

$

$

Not available

24

Homelite 38101163G

Logo Label

$

$

Not available

25

Homelite 38103163G

Pivot Label

$

$

Not available

26

Homelite 38104163G

Warning Label

$

$

Not available

Homelite 987000234

Operator's Manual

$

$

Not available
