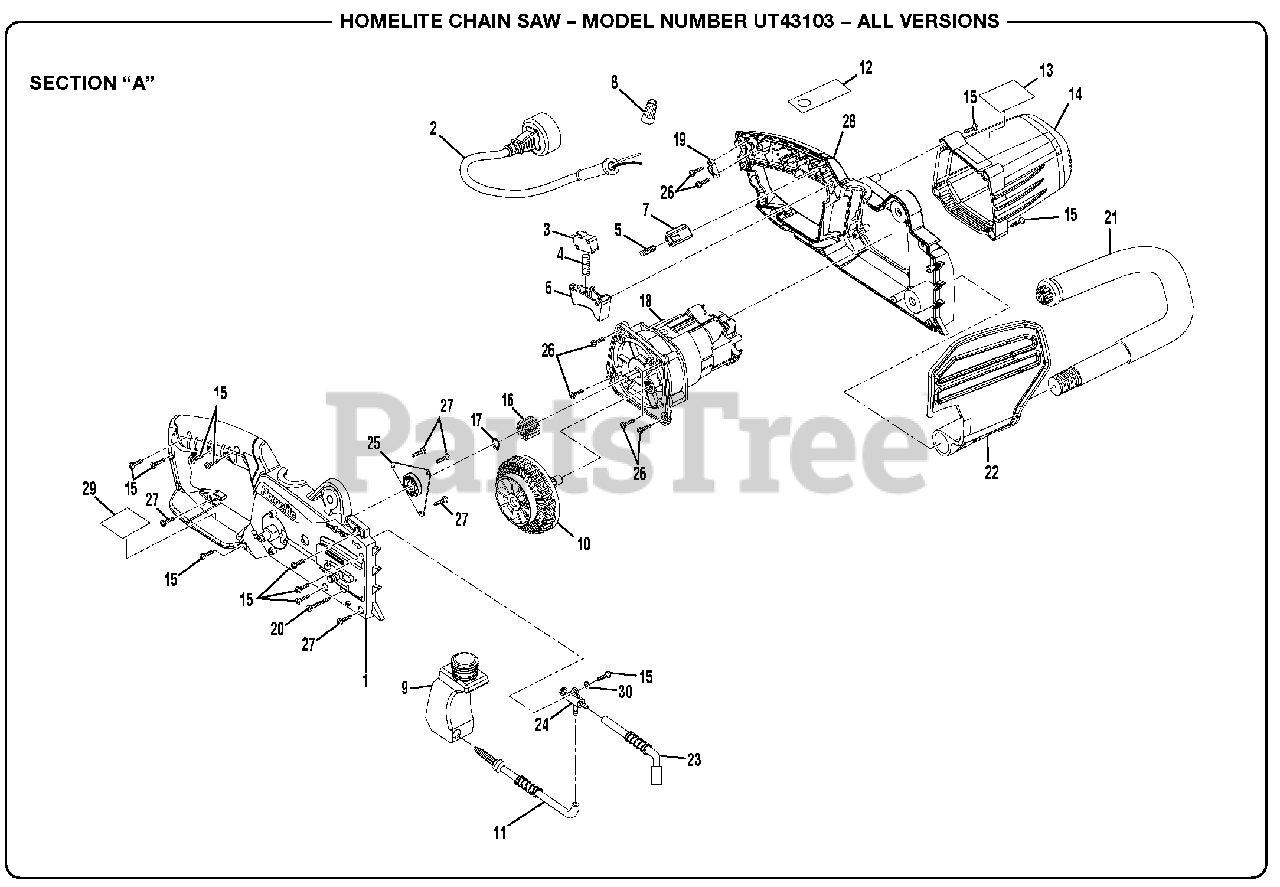

UT-43103 - Homelite Chainsaw, Electric General Assembly (Part 2) Parts Diagram

Chainsaw, Electric

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 31102419G

Right Housing

$

$

Not available

2

Homelite 31103419G

Power Cord

$

$

Not available

3

Homelite 36301154G

Switch

$

$

Not available

4

Homelite 33204403G

Trigger Spring

$

$

Not available

5

Homelite 33204154AG

Lock-off Spring

$

$

Not available

6

Homelite 34109419G

Trigger

$

$

Not available

7

Homelite 34102419G

Lock-off Button

$

$

Not available

8

Homelite 36511154G

Wire Nut

$

$

Not available

9

Homelite 31113419G

Oil Reservoir Assembly

$

$

Not available

10

Homelite 31115419G

Ring Gear Assembly

$

$

Not available

11

Homelite 31111419G

Oil Tube, Inlet

$

$

Not available

12

Homelite 38202154G

Hang Tag

$

$

Not available

13

Homelite 099928001900

Data and Warning Label

$

$

Not available

14

Homelite 34104419G

Motor Cover

$

$

Not available

15

Homelite 3220313G

Screw (M4.2 x 14 mm)

$0.99

$

In Stock, Qty 5

0

16

Homelite 33901419G

Pinion

$

$

Not available

17

Homelite 32901419G

Retaining Ring

$

$

Not available

18

Homelite 31110419G

Motor Assembly

$

$

Not available

19

Homelite 34103336G

Cord Clamp

$

$

Not available

20

Homelite 3220351AG

Screw (M4 x 30 mm)

$

$

Not available

21

Homelite 34106419G

Front Handle

$

$

Not available

22

Homelite 34105419G

Guard

$

$

Not available

23

Homelite 31112419G

Oil Tube, Outlet

$

$

Not available

24

Homelite 31104419G

Oil Pump

$

$

Not available

25

Homelite 31114419G

Ball Bearing Holder Assembly

$

$

Not available

26

Homelite 32203404G

Screw (M4.2 x 10 mm)

$

$

Not available

27

Homelite 3220301G

Screw (M4 x 8 mm)

$

$

Not available

28

Homelite 34101419G

Left Housing Assembly

$

$

Not available

29

Homelite 099928001901

Icon Strip

$

$

Not available

30

Homelite 3290186AG

Washer (M4)

$

$

Not available

Homelite 988000307

Operator's Manual

$

$

Not available
