UT-43103 - Homelite Chainsaw, Electric General Assembly (Part 1) Parts Diagram

Chainsaw, Electric

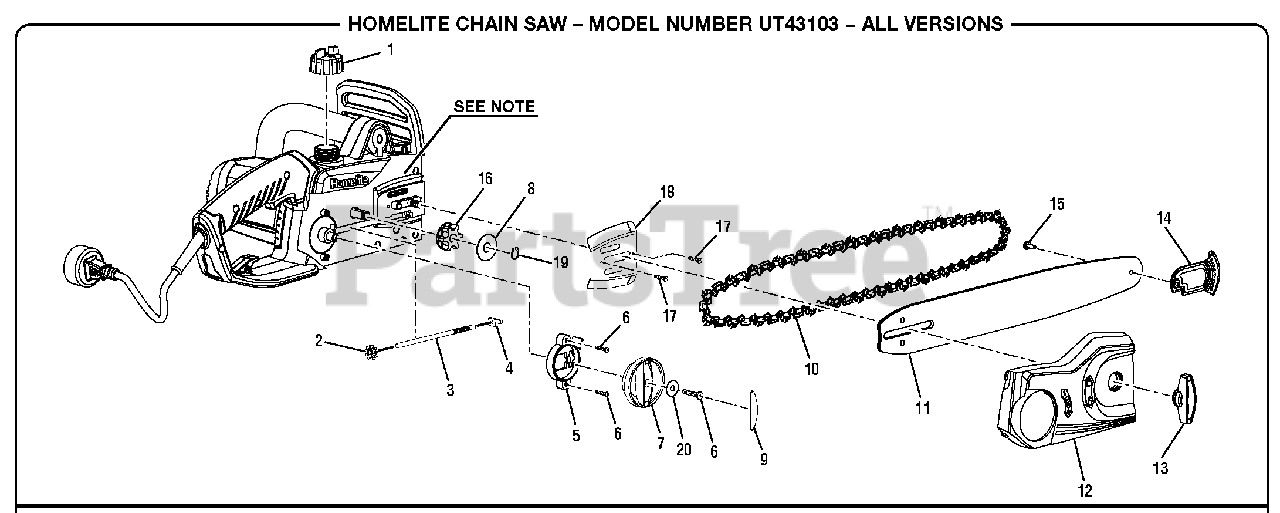

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 34109154G

Oil Reservoir Cap

$

$

Not available

2

Homelite 33904159G

Adjustment Gear

$

$

Not available

3

Homelite 33202419G

Adjustment Shaft

$

$

Not available

4

Homelite 33301419G

Adjustment Pin

$

$

Not available

5

Homelite 34111159G

Gear Cover

$

$

Not available

6

Homelite 32203404G

Screw (M4.2 x 10 mm)

$

$

Not available

7

Homelite 31102573G

Adjustment Knob

$

$

Not available

8

Homelite 33302102G

Washer

$1.49

$

In Stock, only 2 left!

0

9

Homelite 34106159-1G

Insert

$

$

Not available

10

Homelite 901212001

Chain (.375 x 52 link, 14 in.)

$32.99

$

In Stock, only 2 left!

0

11

Homelite 310625001

Guide Bar (14 in. with SAFE-T-TIP)

$

$

Not available

12

Homelite 31101419G

Chain Cover Assembly

$

$

Not available

13

Homelite 31101573G

Chain Cover Lock Knob

$

$

Not available

14

Homelite 308949001

SAFE-T-TIP
(Superseded to 308949004)

$

$

Not available

15

Homelite 660640001

Screw w/Washer

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 33902102G

Sprocket

$

$

Not available

17

Homelite 3221675AG

Screw (M3 x 12 mm)

$

$

Not available

18

Homelite 33302405G

Adjustment Pin Cover

$

$

Not available

19

Homelite 3290875G

Retaining Ring

$

$

Not available

20

Homelite 3290186AG

Washer (M4)

$

$

Not available

Homelite 34113419G

Sleeve

Note: (Not Shown)

$

$

Not available

Homelite 988000307

Operator's Manual

Note: (Not Shown)

$

$

Not available
