UT-41113 - Homelite String Trimmer/Edger General Assembly Parts Diagram

String Trimmer/Edger

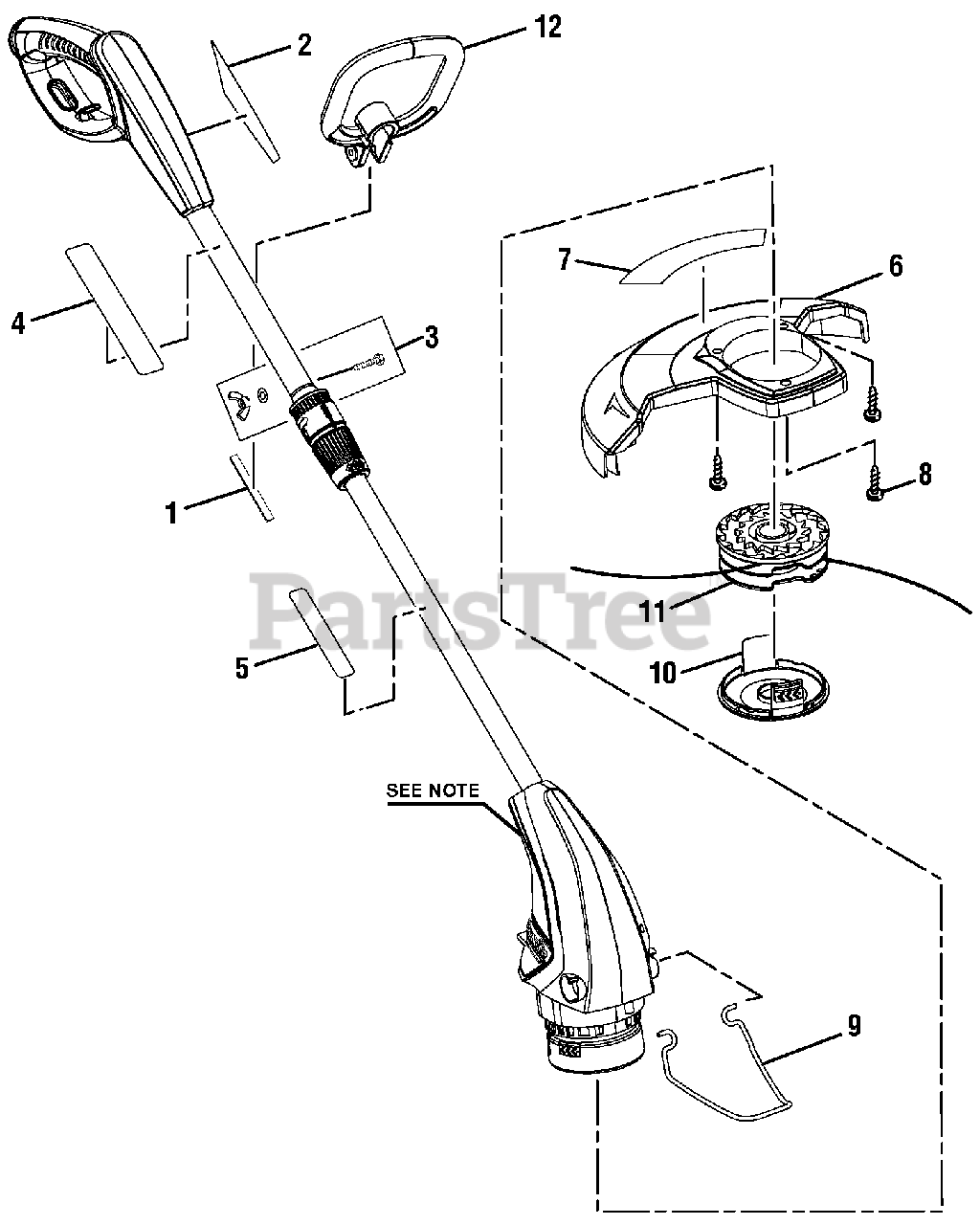

General Assembly Parts Diagram

  • Title

1

Homelite 993687001

Rubber Bumper

$

$

Not available

2

Homelite 941853001

Data Label

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 993842001

Fastener Kit

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 099963002901

Warning Icon Label

$

$

Not available

5

Homelite 099963002903

Warning Label

$

$

Not available

6

Homelite 993716001

Grass Deflector

Note: (Inc. Key. No. 7)

$14.99

$

In Stock, only 1 left!

0

7

Homelite 099942001902

Grass Deflector Label

$

$

Not available

8

Homelite 993674001

Screw (M4.2 x 15 mm)
(Superseded to 3220313G)

$0.99

$

In Stock, Qty 5

0

9

Homelite 993708001

Edge Guide
(Superseded to 993711001)

$

$

Not available

10

Homelite 993706001

Spool Cap

$

$

Not available

11

Homelite 993705001

Spool
(Superseded to 31104178G)

$26.99

$

Usually ships in 3-7 days

0

12

Homelite 993841001

Front Handle Assembly

Note: (Inc. Key. No. 1)

$6.99

$

Usually ships in 3-7 days

0

Homelite 990000713

Operator's Manual

Note: Not Shown

$

$

Not available
