UT-40903 - Homelite Mightylite Hedge Trimmer, 26cc Figure C Parts Diagram

Mightylite Hedge Trimmer, 26cc

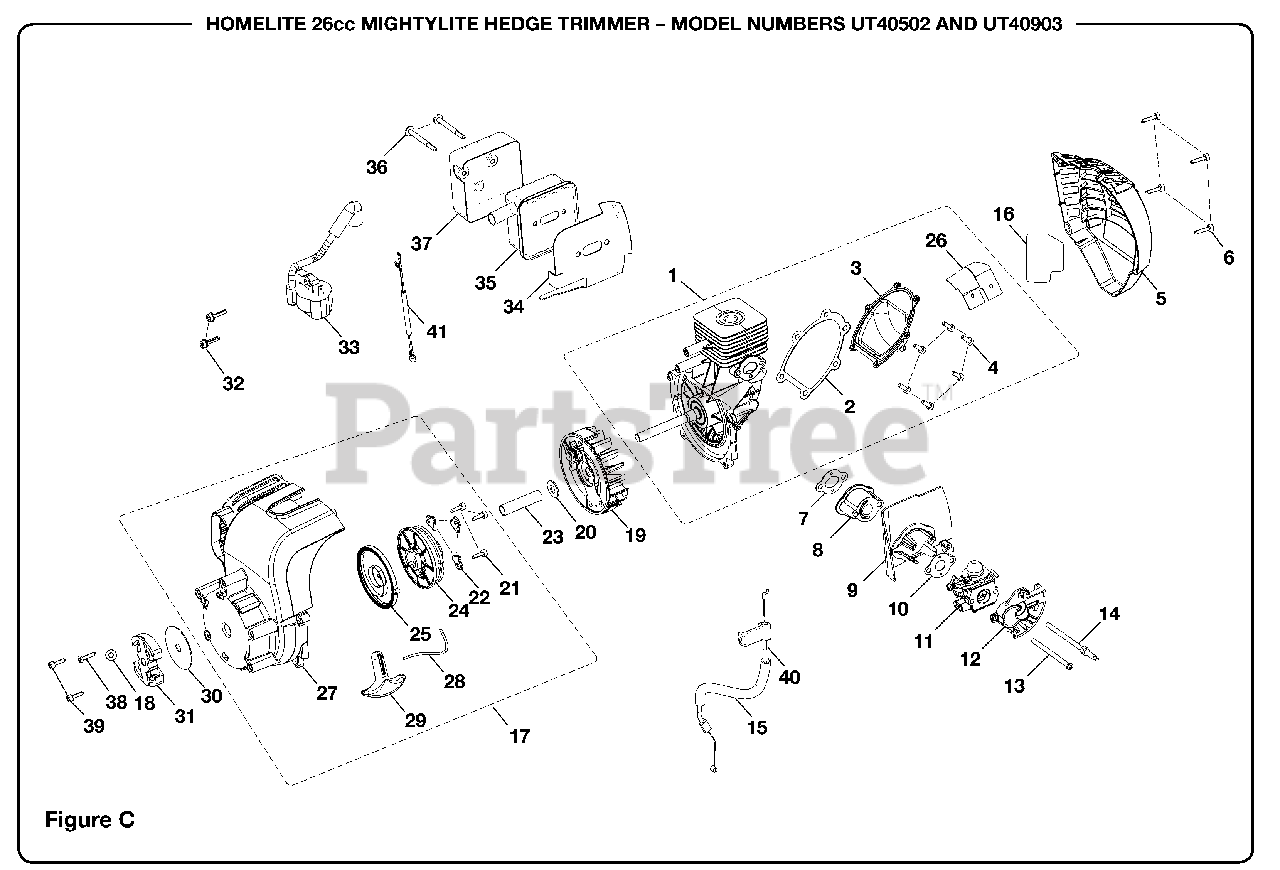

Figure C Parts Diagram

  • Title

1

Homelite 309960002

Short Block Assembly

Note: Inc Key Nos 2-4 and 26

$

$

Not available

2

Homelite 901550001

Crankcase Cover Gasket
(Superseded to 901550003)

$1.99

$

In Stock, only 4 left!

0

3

Homelite 638337001

Crankcase Cover
(Superseded to 638337005)

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 660925003

Screw (M4 x 12 mm)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 518726001

Upper Housing

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 660466001

Screw (M4 x 18 mm)

Note: Purchase locally

$1.99

$

In Stock, Qty 7

0

7

Homelite 901551001

Intake Gasket

$1.99

$

In Stock, only 3 left!

0

8

Homelite 518497001

Heat Dam

$3.99

$

In Stock, only 1 left!

0

9

Homelite 518690001

Heat Dam Deflector

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 901552001

Carburetor Gasket

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 308054002

Carburetor

$38.99

$

In Stock, only 1 left!

0

12

Homelite 518498001

Roto-Choke Base

$

$

Not available

13

Homelite 660454001

Bolt (M5 x 70 mm)

$1.49

$

In Stock, only 3 left!

0

14

Homelite 660453001

Double Sided Hex Bolt

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 518704001

Tube

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 900951007

Heat Shield Gasket

$

$

Not available

17

Homelite 308980001

Front Housing Assembly

Note: Inc Key Nos 21-22, 24-25 and 27-29

$13.99

$

Usually ships in 3-7 days

0

18

Homelite 690969001

Washer

$1.99

$

In Stock, Qty 5

0

19

Homelite 308674001

Flywheel Assembly

$15.99

$

Usually ships in 3-7 days

0

20

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

21

Homelite 660967001

Screw (M4 x 14 mm)

Note: Purchase locally

$1.99

$

In Stock, only 1 left!

0

22

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

23

Homelite 638284002

Spacer Tube

$

$

Not available

24

Homelite 518501001

Starter Pulley

$1.99

$

In Stock, Qty 6

0

25

Homelite 638033001

Spring & Container Assembly

$5.49

$

In Stock, only 4 left!

0

26

Homelite 638442004

Heat Shield (Crankcase)

$

$

Not available

27

Homelite 308981001

Lower Housing Assembly

$8.99

$

Usually ships in 3-7 days

0

28

Homelite 900849002

Starter Rope

$1.99

$

In Stock, Qty 5

0

29

Homelite 518502001

Pulley Handle

$

$

Not available

30

Homelite 638090001

Washer

$1.99

$

In Stock, only 4 left!

0

31

Homelite 300960002

Clutch Assembly

$10.99

$

In Stock, only 1 left!

0

32

Homelite 660968001

Screw (M4 x 19 mm)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 850108001

Ignition Module
(Superseded to 850108002)

$30.99

$

In Stock, only 1 left!

0

34

Homelite 901452004

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 308990002

Muffler Assembly

$

$

Not available

36

Homelite 660638003

Screw (10-24 x 2-3/16 in Shoulder)
(Superseded to PS03999)

Note: Purchase locally

$

$

Not available

37

Homelite 638442002

Heat Shield (Muffler)

$

$

Not available

38

Homelite 660970003

Screw (M4 x 20 mm)

Note: Purchase locally

$

$

Not available

39

Homelite 660970001

Screw (M4 x 16 mm)

Note: Purchase locally

$1.99

$

In Stock, only 1 left!

0

40

Homelite 270032003

Throttle Cable

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 308863002

Lead Assembly

$

$

Not available
