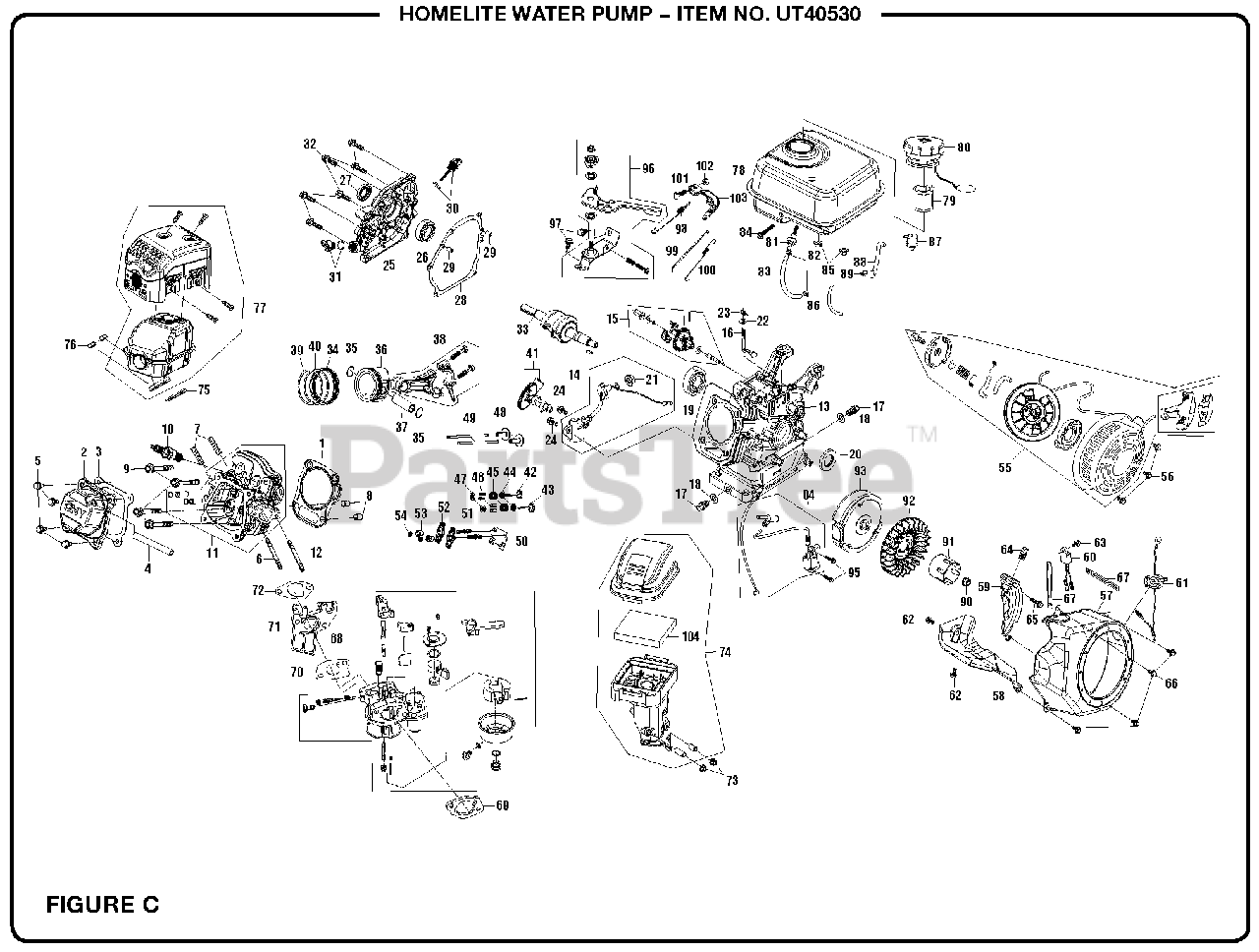

UT-40530 (099858002) - Homelite Water Pump Figure C Parts Diagram

Water Pump

Figure C Parts Diagram

  • Title

1

Homelite 12131-Z530320-0000

Cylinder Head Gasket

$7.49

$

In Stock, only 1 left!

0

2

Homelite 12410-Z440110-0099

Cylinder Head Cover Assembly

$12.99

$

In Stock, only 2 left!

0

3

Homelite 12004-Z440110-0000

Cylinder Head Cover Gasket

$2.49

$

In Stock, only 1 left!

0

4

Homelite 17004-Z440110-0000

Breather Tube

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 90001-0612-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 90204-Z010310-0000

Stud

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 90203-Z010110-0000

Stud

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 90502-1114-00

Pin

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 12003-Z010110-0000

Cylinder Head Bolt

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 30010-Z010110-0000

Spark Plug

$9.99

$

In Stock, only 1 left!

0

11

Homelite 12140-Z810120-0000

Cylinder Head Assembly

$76.99

$

Usually ships in 3-7 days

0

12

Homelite 90207-Z330210-0000

Stud

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 11310-Z530410-0099

Crankcase Assembly

$191.99

$

Usually ships in 3-7 days

0

14

Homelite 37060-Z010120-0000

Engine Oil Sensor

$12.99

$

Usually ships in 3-7 days

0

15

Homelite 16400-Z010110-0000

Governor Gear Assembly

$7.99

$

Usually ships in 3-7 days

0

16

Homelite 16061-Z010110-0000

Governor Arm

$3.99

$

In Stock, only 2 left!

0

17

Homelite 11007-Z010110-0000

Drain Plug Bolt

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 90408-Z010110-0000

Washer

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 90547-0205-CL

Ball Bearing

$

$

Not available

20

Homelite 90682-Z300110-0000

Oil Seal

$3.99

$

In Stock, only 1 left!

0

21

Homelite 90327-1000-31

Nut

$

$

Not available

22

Homelite 90408-Z010210-0000

Governor Gear Washer

$2.49

$

In Stock, only 2 left!

0

23

Homelite 90501-Z010110-0000

Pin

$2.49

$

In Stock, only 2 left!

0

24

Homelite 90001-0614-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 11411-Z440210-0000

Crankcase Cover Assembly

$69.99

$

Usually ships in 3-7 days

0

26

Homelite 90547-0205-CL

Ball Bearing

$

$

Not available

27

Homelite 90682-Z300110-0000

Oil Seal

$3.99

$

In Stock, only 1 left!

0

28

Homelite 11001-Z440110-0000

Crankcase Gasket

$6.99

$

In Stock, only 1 left!

0

29

Homelite 90502-0912-00

Pin

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 15010-Z010120-QG00

Oil Dipstick Assembly

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 15030-Z010120-QG00

Engine Oil Plug Assembly

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 90001-0832-01

Bolt

$1.99

$

In Stock, only 1 left!

0

33

Homelite 13300-Z530210-0000

Crankshaft Assembly

$94.99

$

Usually ships in 3-7 days

0

34

Homelite 13210-Z140220-0099

Oil Ring Set

$7.99

$

Usually ships in 3-7 days

0

35

Homelite 13122-Z010110-0000

Piston Pin Clip

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 13111-Z140220-0099

Piston Assembly

$21.99

$

In Stock, only 3 left!

0

37

Homelite 13121-Z010110-0000

Piston Pin

$5.99

$

Usually ships in 3-7 days

0

38

Homelite 13010-Z440210-0099

Connecting Rod

$19.99

$

Usually ships in 3-7 days

0

39

Homelite 13201-Z140210-0099

The First Ring

$6.99

$

Usually ships in 3-7 days

0

40

Homelite 13202-Z140210-0099

The Second Ring

$5.99

$

In Stock, only 1 left!

0

41

Homelite 14200-Z530110-0099

Camshaft Assembly

$43.99

$

Usually ships in 3-7 days

0

42

Homelite 12121-Z810110-0000

Exhaust Valve
(Superseded to 12121-Z810110-0099)

$15.99

$

Usually ships in 3-7 days

0

43

Homelite 12111-Z810110-0000

Intake Valve
(Superseded to 12111-Z810110-0099)

$10.99

$

In Stock, only 1 left!

0

44

Homelite 12101-Z810110-0000

Seal Guide

$5.49

$

Usually ships in 3-7 days

0

45

Homelite 12103-Z010110-0000

Valve Spring

$1.99

$

In Stock, only 4 left!

0

46

Homelite 12109-Z810110-0000

Valve Lock Clip

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 12112-Z810110-0000

Valve Spring Seat

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 14081-Z040110-0000

Valve Tappet

$3.99

$

Usually ships in 3-7 days

0

49

Homelite 14071-Z440110-0000

Valve Lifter

$3.49

$

In Stock, only 1 left!

0

50

Homelite 14090-Z010110-0000

Lifter Stopper Plate Assembly

$2.99

$

Usually ships in 3-7 days

0

51

Homelite 14313-Z010110-0000

Valve Adjusting Bolt

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 14311-Z010110-0000

Valve Rocker

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 14314-Z010110-0000

Valve Adjusting Nut

$3.49

$

Usually ships in 3-7 days

0

54

Homelite 14312-Z010110-0000

Valve Lock Nut

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 28200-Z301410-H600

Recoil Starter Assembly

$39.99

$

Usually ships in 3-7 days

0

56

Homelite 90001-0608-01

Bolt

$2.99

$

Usually ships in 3-7 days

0

57

Homelite 28110-Z010410-RD00

Shroud

$

$

Not available

58

Homelite 19304-Z010110-0000

Cylinder Body Shroud

$

$

Not available

59

Homelite 19340-Z010120-0000

Lower Shield

$

$

Not available

60

Homelite 37050-Z010210-0000

Oil Protector

$7.49

$

Usually ships in 3-7 days

0

61

Homelite 35540-Z060120-QG00

Stop Engine Switch Assembly

$5.99

$

Usually ships in 3-7 days

0

62

Homelite 90001-0610-01

Bolt

$

$

Not available

63

Homelite 90001-0612-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 90740-Z010110-0000

Collar

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 90001-0616-01

Bolt

$1.99

$

Usually ships in 3-7 days

0

66

Homelite 90001-0612-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

67

Homelite 90684-Z030120-0000

Clip

$2.49

$

Usually ships in 3-7 days

0

68

Homelite 16100-Z530610-QG99

Carburetor Assembly

$

$

Not available

69

Homelite 17001-Z010210-0000

Air Cleaner Gasket

$4.49

$

Usually ships in 3-7 days

0

70

Homelite 16001-Z010110-0000

Carburetor Gasket

$1.99

$

Usually ships in 3-7 days

0

71

Homelite 16003-Z010110-0000

Carburetor Insulator Plate

$4.99

$

In Stock, only 1 left!

0

72

Homelite 16002-Z050110-0000

Carburetor Insulator Gasket
(Superseded to 16002-Z050110)

$2.99

$

In Stock, only 3 left!

0

73

Homelite 90305-0600-31

Nut

$2.49

$

Usually ships in 3-7 days

0

74

Homelite 17100-Z440220-0099

Air Cleaner

$

$

Not available

75

Homelite 18001-Z440110-0000

Exhaust Outlet Gasket

$1.99

$

Usually ships in 3-7 days

0

76

Homelite 90303-0800-31

Nut

$2.49

$

Usually ships in 3-7 days

0

77

Homelite 18100-Z442910-H300

Muffler Assembly

$

$

Not available

78

Homelite 16620-Z440510-H600

Fuel Tank

$

$

Not available

79

Homelite 16652-Z010710-0000

Fuel Strainer

$1.99

$

Usually ships in 3-7 days

0

80

Homelite 16730-Z440330-0099

Fuel Tank Cover

$11.99

$

Usually ships in 3-7 days

0

81

Homelite 16680-Z010110-0000

Fuel Tank Oil Outlet Assembly

$3.49

$

In Stock, only 1 left!

0

82

Homelite 90740-Z010210-0000

Collar

$2.99

$

Usually ships in 3-7 days

0

83

Homelite 90686-Z010710-0000

Fuel Tube

$5.99

$

In Stock, only 1 left!

0

84

Homelite 90001-0630-01

Bolt

$

$

Not available

85

Homelite 90305-0600-31

Nut

$2.49

$

Usually ships in 3-7 days

0

86

Homelite 30431-Z010110-0000

Rubber Jacket

$2.49

$

Usually ships in 3-7 days

0

87

Homelite 15150-Z010510-0000

One Way Valve

$17.99

$

Usually ships in 3-7 days

0

88

Homelite 16804-Z440210-0099

Fuel Steam Rubber Hose

$2.49

$

Usually ships in 3-7 days

0

89

Homelite 90685-Z030410-0000

Clamp

$2.49

$

In Stock, only 1 left!

0

90

Homelite 13501-Z010110-0000

Nut

$2.49

$

Usually ships in 3-7 days

0

91

Homelite 28002-Z300110-0000

Starter Pulley

$7.99

$

Usually ships in 3-7 days

0

92

Homelite 19352-Z440110-0000

Impeller

$10.99

$

Usually ships in 3-7 days

0

93

Homelite 13510-Z440410-0000

Flywheel Assembly

$86.99

$

Usually ships in 3-7 days

0

94

Homelite 30400-Z440110-0100

Ignition Coil

$34.99

$

Usually ships in 3-7 days

0

95

Homelite 90001-0625-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

96

Homelite 16520-Z010430-0000

Throttle Control Assembly

$12.99

$

Usually ships in 3-7 days

0

97

Homelite 90001-0610-01

Bolt

$

$

Not available

98

Homelite 16063-Z050120-0000

Governor Spring

$2.49

$

Usually ships in 3-7 days

0

99

Homelite 16062-Z010110-0000

Governor Rod

$2.49

$

Usually ships in 3-7 days

0

100

Homelite 16012-Z010110-0000

Throttle Valve Return Spring
(Superseded to 16012-Z010110)

$2.49

$

In Stock, Qty 5

0

101

Homelite 16072-Z010110-0000

Governor Support Bolt

$2.49

$

Usually ships in 3-7 days

0

102

Homelite 90305-0600-31

Nut

$2.49

$

Usually ships in 3-7 days

0

103

Homelite 16070-Z010110-0000

Governor Support Assembly

$3.49

$

Usually ships in 3-7 days

0

104

Homelite 17151-Z440110-0000

Air Cleaner Element

$6.49

$

In Stock, only 1 left!

0

Homelite 120960007

High Altitude Kit (3000-6000 FT, Ruixing Carburetor)

Note: Not Shown

$

$

Not available

Homelite 120960008

High Altitude Kit (6000-8000 FT, Ruixing Carburetor)

Note: Not Shown

$

$

Not available

Homelite 120968027

High Altitude Kit (3000-6000 FT, Huayi Carburetor)

Note: Not Shown

$

$

Not available

Homelite 120968028

High Altitude Kit (6000-8000 FT, Huayi Carburetor)

Note: Not Shown

$

$

Not available
