UT-40520 (099858001) - Homelite Water Pump Figure B Parts Diagram

Water Pump

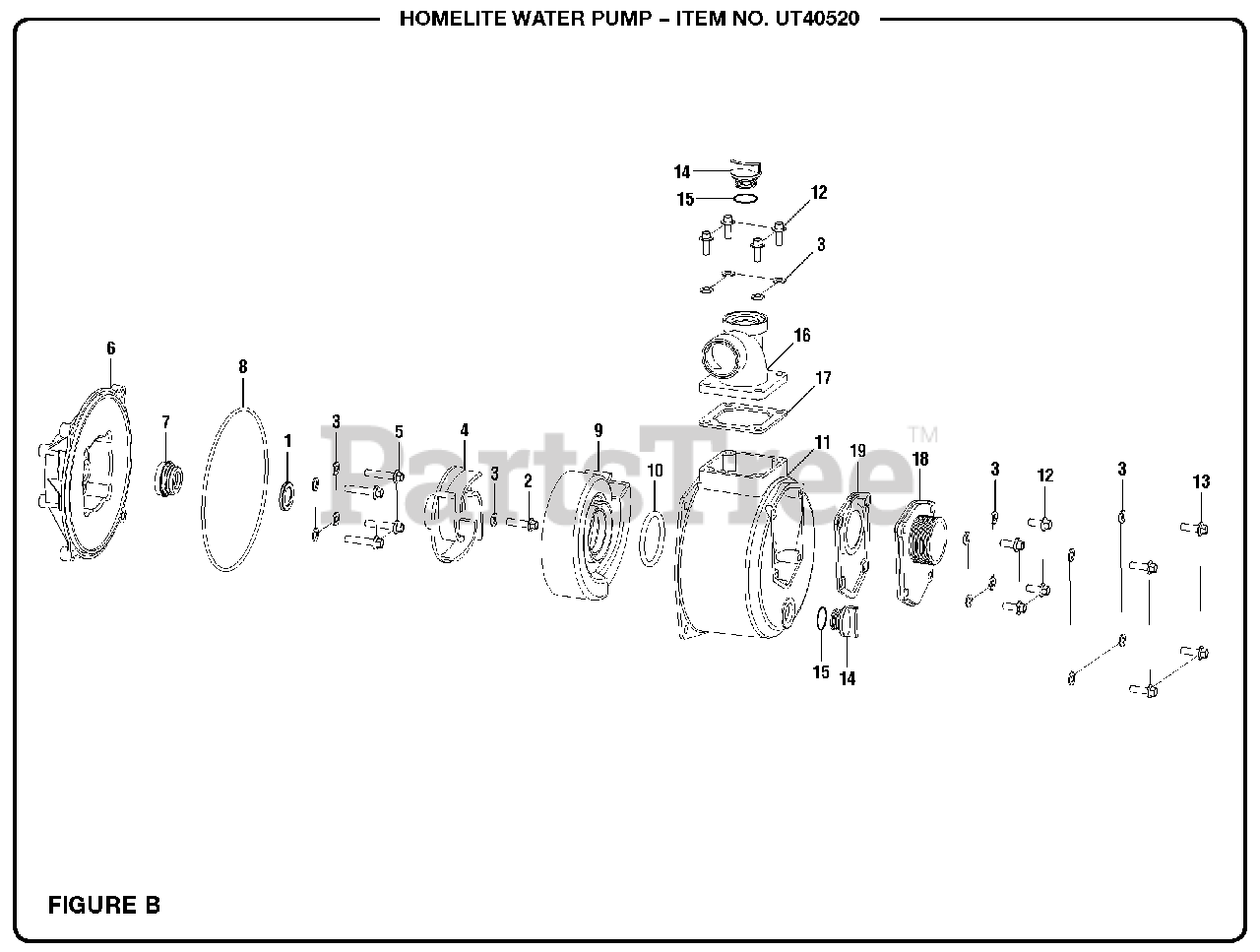

Figure B Parts Diagram

  • Title

1

Homelite 311200001

Ceramic Seal Assembly

$9.49

$

Usually ships in 3-7 days

0

2

Homelite 661505024

Bolt (5/16-24 x 30 mm)

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 638422007

Seal Washer

$

$

Not available

4

Homelite 673228002

Impeller

$

$

Not available

5

Homelite 661505028

Bolt (5/16-24 x 40 mm, Flange Hd)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 635746002

Housing Cover

$

$

Not available

7

Homelite 311201001

Mechanical Seal Assembly

$13.99

$

Usually ships in 3-7 days

0

8

Homelite 561384015

O-Ring (Housing Cover)

$3.99

$

Usually ships in 3-7 days

0

9

Homelite 642202002

Pump Volute

$32.99

$

Usually ships in 3-7 days

0

10

Homelite 561384016

O-Ring (Volute)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 638403004

Pump Housing

$

$

Not available

12

Homelite 660224016

Bolt (M8 x 20 mm, Flange Hd.)

$

$

Currently unavailable

13

Homelite 660224017

Bolt (M8 x 25 mm, Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 526871001

Pump Plug

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 561384014

O-Ring (Plug)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 678646005

Pump Outlet

$20.99

$

Usually ships in 3-7 days

0

17

Homelite 563338002

Gasket (Outlet)

$

$

Not available

18

Homelite 678645004

Pump Inlet

$

$

Not available

19

Homelite 518089003

Check Valve

$2.99

$

Usually ships in 3-7 days
