UT-40502 - Homelite Mightylite Hedge Trimmer, 26cc Figure A Parts Diagram

Mightylite Hedge Trimmer, 26cc

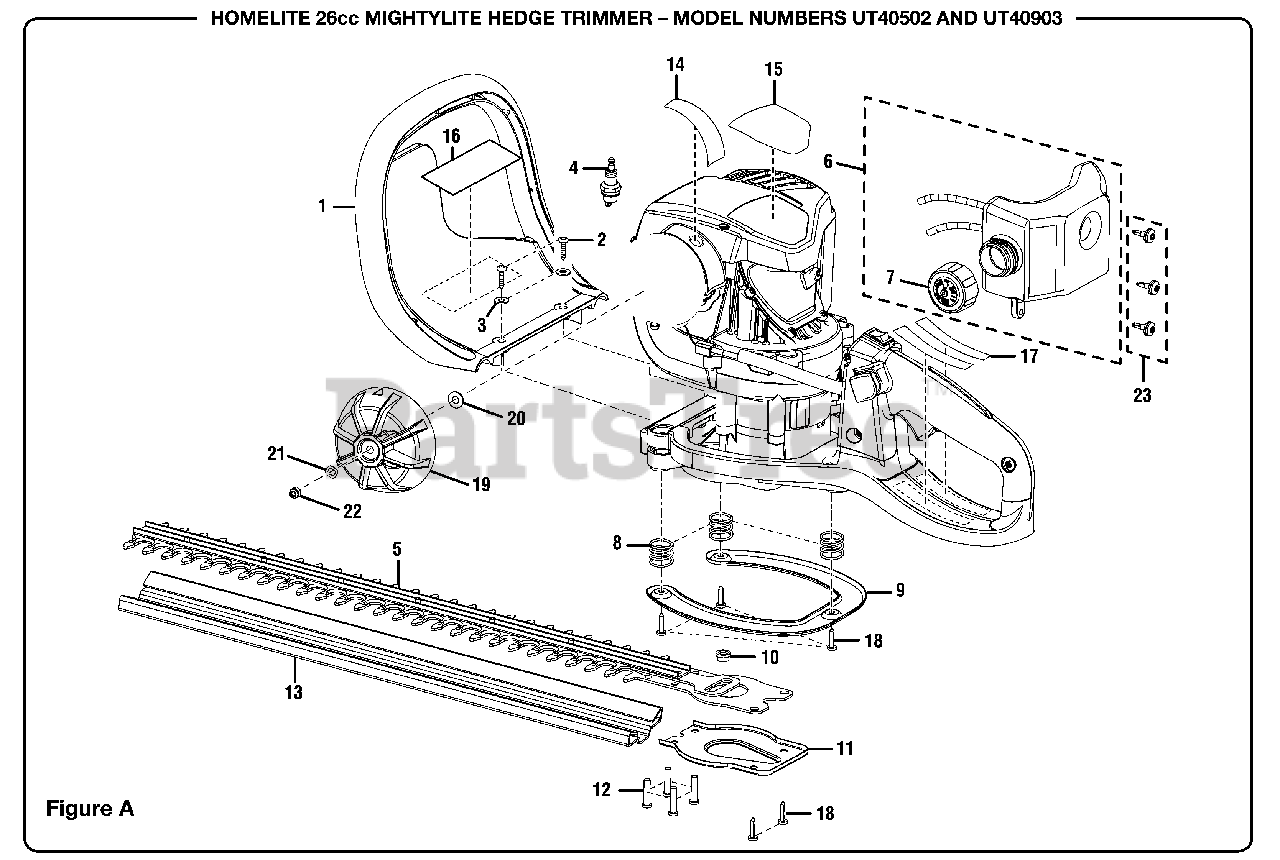

Figure A Parts Diagram

  • Title

1

Homelite 120900009

Front Handle

Note: Incl Key No 16

$

$

Not available

2

Homelite 660468001

Screw (M5 x 25 mm)

Note: Purchase locally

$

$

Not available

3

Homelite 678341001

Flat Washer (M5)
(Superseded to 099069001006)

Note: Purchase locally

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 870174001

Spark Plug

Note: (Champion RCJ6Y); Purchase locally

$4.99

$

In Stock, Qty 20+

0

5

Homelite 308548006

Blade Assembly

$

$

Not available

6

Homelite 308675001

Fuel Tank with Cap Assembly
(Superseded to 308675051)

Note: Incl Key No 7

$

$

Not available

7

Homelite 308680001

Fuel Cap

$

$

Not available

8

Homelite 678022002

Spring

$

$

Not available

9

Homelite 640111001

Brace

$

$

Not available

10

Homelite 638383001

Bushing

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 640110001

Gear Box Cover

$

$

Not available

12

Homelite 660469001

Screw (M5 x 24 mm)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 518463002

Scabbard

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 940647010

Choke Label

$

$

Not available

15

Homelite 940687003

Logo Label

$

$

Not available

16

Homelite 940964006

Warning Label

$

$

Not available

17

Homelite 120900010

Starting Label

$

$

Not available

18

Homelite 660468003

Screw (M5 x 17 mm)

Note: Purchase locally

$

$

Not available

19

Homelite 518496001

Roto-Choke Cover

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 678434001

Flat Washer

$

$

Not available

21

Homelite 678434002

Wavy Washer

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 678435001

Lock Nut (M4)

Note: Purchase locally

$

$

Not available

23

Homelite 660970002

Screw (M4 x 10 mm, Shoulder)

$1.99

$

In Stock, only 1 left!

0

Homelite 987000041

Operator's Manual (960639001)

$

$

Not available
