UT-36051 - Homelite 35" Rotary Mower Attachment Mower Parts Diagram

35" Rotary Mower Attachment

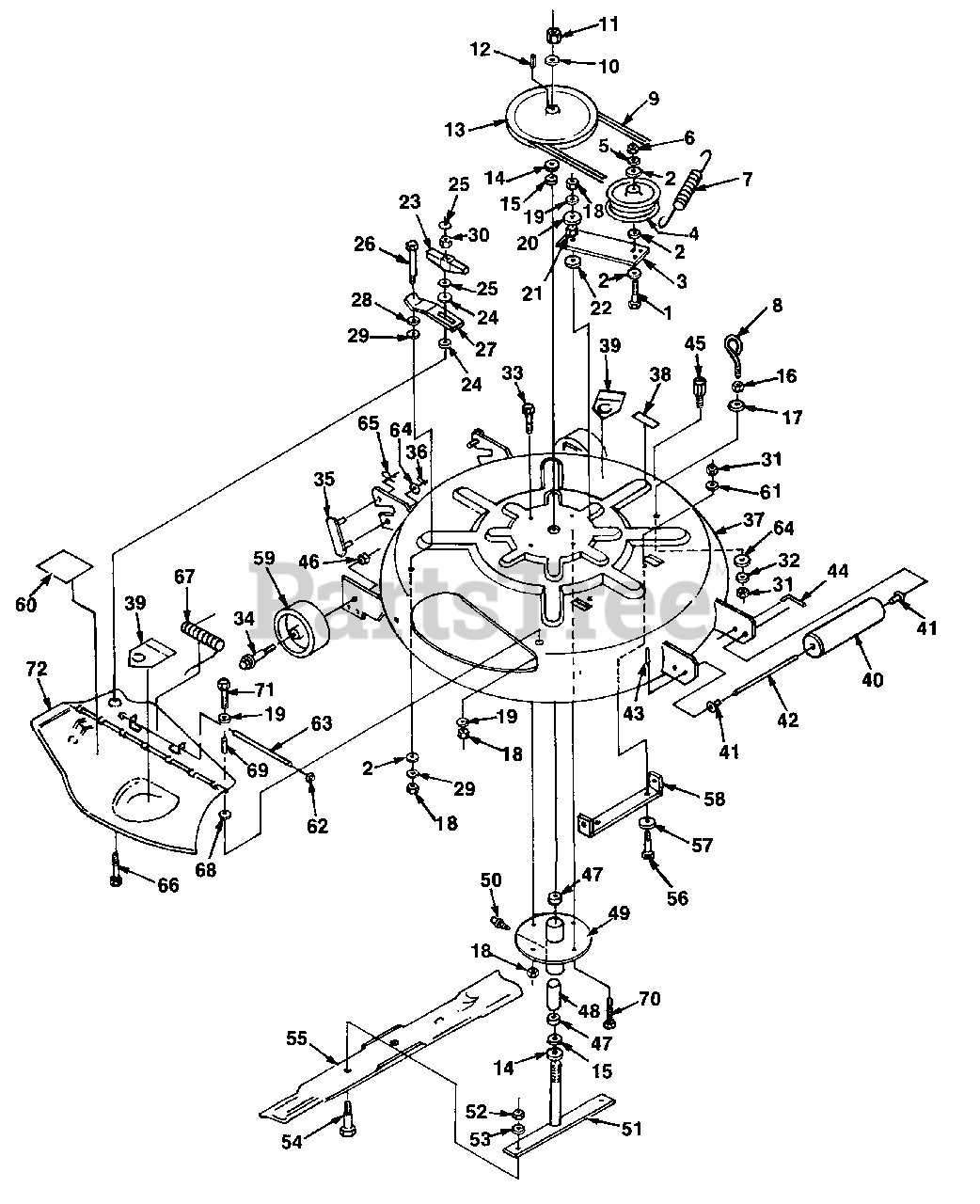

Mower Parts Diagram

  • Title

1

Homelite JA400192

SCREW

$

$

Currently unavailable

2

Homelite JA452008

WASHER- Flat 3/8

$3.49

$

Usually ships in 3-7 days

0

3

Homelite JA992096

ARM- Pivot

$

$

Currently unavailable

4

Homelite JA991151

PULLEY- Idler

$

$

Currently unavailable

5

Homelite JA446140

WASHER- Lock 3/8
(Superseded to UP07435)

$

$

Not available

6

Homelite JA444762

NUT- Hex centerlock 3/8 x 16

$

$

Currently unavailable

7

Homelite JA990983

SPRING

$

$

Currently unavailable

8

Homelite JA354532

EYEBOLT

$

$

Currently unavailable

9

Homelite JA992251

BELT

$

$

Currently unavailable

10

Homelite JA453022

WASHER- Flat 3/4

$

$

Currently unavailable

11

Homelite JA445783

NUT- Hex locking

$

$

Currently unavailable

12

Homelite JA321292

KEY

$

$

Currently unavailable

13

Homelite JA992243

PULLEY- Spindle

$

$

Currently unavailable

14

Homelite JA991497

SPACER

$

$

Currently unavailable

15

Homelite JA455055

WASHER- Flat

$

$

Not available

16

Homelite JA443802

NUT- Hex 1/4-20

$

$

Currently unavailable

17

Homelite JA455024

WASHER- Flat 1/4"

$

$

Currently unavailable

18

Homelite JA444718

NUT- Hex centerlock

$

$

Not available

19

Homelite JA446136

WASHER- Lock 5/16
(Superseded to UP03791)

$

$

Not available

20

Homelite JA350929

WASHER- 1 3/4 x .144/.1

$

$

Not available

21

Homelite JA991504

SPACER- Idler arm

$

$

Not available

22

Homelite JA453032

WASHER- Idler arm

$

$

Currently unavailable

23

Homelite JA339550

KNOB- Handle

$

$

Not available

24

Homelite JA452004

WASHER
(Superseded to 84026)

$

$

Not available

25

Homelite JA445272

NUT- Push

$4.99

$

Usually ships in 3-7 days

0

26

Homelite JA376094

BOLT- Shoulder

$

$

Not available

27

Homelite JA991519

ARM- Pivot

$

$

Currently unavailable

28

Homelite JA454020

WASHER- Spring

$

$

Not available

29

Homelite JA453009

WASHER- Flat
(Superseded to UP07173)

$

$

Not available

30

Homelite JA445784

NUT- 1/4-20

$

$

Currently unavailable

31

Homelite JA444708

NUT- Hex centerlock

$

$

Currently unavailable

32

Homelite JA446130

WASHER- Lock 1/4

$

$

Not available

33

Homelite JA400184

SCREW- Cap hex hd 5/16-18 x 3/4
(Superseded to UP03381)

$

$

Not available

34

Homelite JA376084

BOLT- Wheel

$

$

Currently unavailable

35

Homelite JA992347

STOP LINK ASSY.

$

$

Currently unavailable

36

Homelite JA460014

PIN- Cotter

$

$

Not available

37

Homelite JA992633

DECK-

Note: (Incl. #38 & #39)

$

$

Currently unavailable

38

Homelite JA339566

DECAL- No Step

$

$

Currently unavailable

39

Homelite JA339460

WARNING LABEL- CPSC

$

$

Not available

40

Homelite JA335178

ROLLER

$

$

Not available

41

Homelite JA549039

BUSHING- Roller

$

$

Not available

42

Homelite JA351426

SHAFT- Roller

$

$

Currently unavailable

43

Homelite JA461381

PIN- Roll 3/16-13/16

$

$

Not available

44

Homelite JA351494

PIN- Hold

$

$

Not available

45

Homelite JA375977

PLUG- Wash out

$

$

Currently unavailable

46

Homelite JA444762

NUT- Hex centerlock 3/8-16

$

$

Currently unavailable

47

Homelite JA991765

BEARING- Cutter shaft

$

$

Currently unavailable

48

Homelite JA992226

SPACER- Bearing

$

$

Currently unavailable

49

Homelite JA992206

SPINDLE HOUSING

$

$

Currently unavailable

50

Homelite JA471238

FITTING- Lubricant

$

$

Currently unavailable

51

Homelite JA992211

SPINDLE & ADAPTER

$

$

Not available

52

Homelite JA444758

NUT- Hex centerlock

$

$

Currently unavailable

53

Homelite JA446154

WASHER- Lock 1/2

$

$

Not available

54

Homelite JA408803

SCREW- Cap hex hd. 1/2-13 x 1.25

$

$

Currently unavailable

55

Homelite JA992566

BLADE- 35"

$

$

Currently unavailable

56

Homelite JA400108

SCREW- Cap hex hd.
(Superseded to 80052)

$

$

Not available

57

Homelite JA453009

WASHER- 5/16
(Superseded to UP07173)

$

$

Not available

58

Homelite JA992372

BRACKET- Front lift

$

$

Currently unavailable

59

Homelite JA339607

WHEEL

$

$

Not available

60

Homelite JA991217

DECAL- Door

$

$

Currently unavailable

61

Homelite JA446130

WASHER- Lock

$

$

Not available

62

Homelite JA445516

NUT

$

$

Not available

63

Homelite JA991703

ROD- Deck hinge

$

$

Not available

64

Homelite JA455024

WASHER- Flat 1/4"

$

$

Currently unavailable

65

Homelite JA460306

PIN- Hair

$

$

Not available

66

Homelite JA441668

SCREW-1/4 x 1 1/4

$

$

Currently unavailable

67

Homelite JA991701

SPRING- Torsion

$

$

Currently unavailable

68

Homelite JA453011

WASHER- Flat
(Superseded to PS84010)

$

$

Not available

69

Homelite JA991744

SPACER

$

$

Currently unavailable

70

Homelite JA400272

SCREW- 3/8-16 x 2.25

$

$

Not available

71

Homelite JA400182

SCREW- 5/16-18 x 5/8

$

$

Not available

72

Homelite JA991718

PLATE & COVER ASSY.

$

$

Currently unavailable
