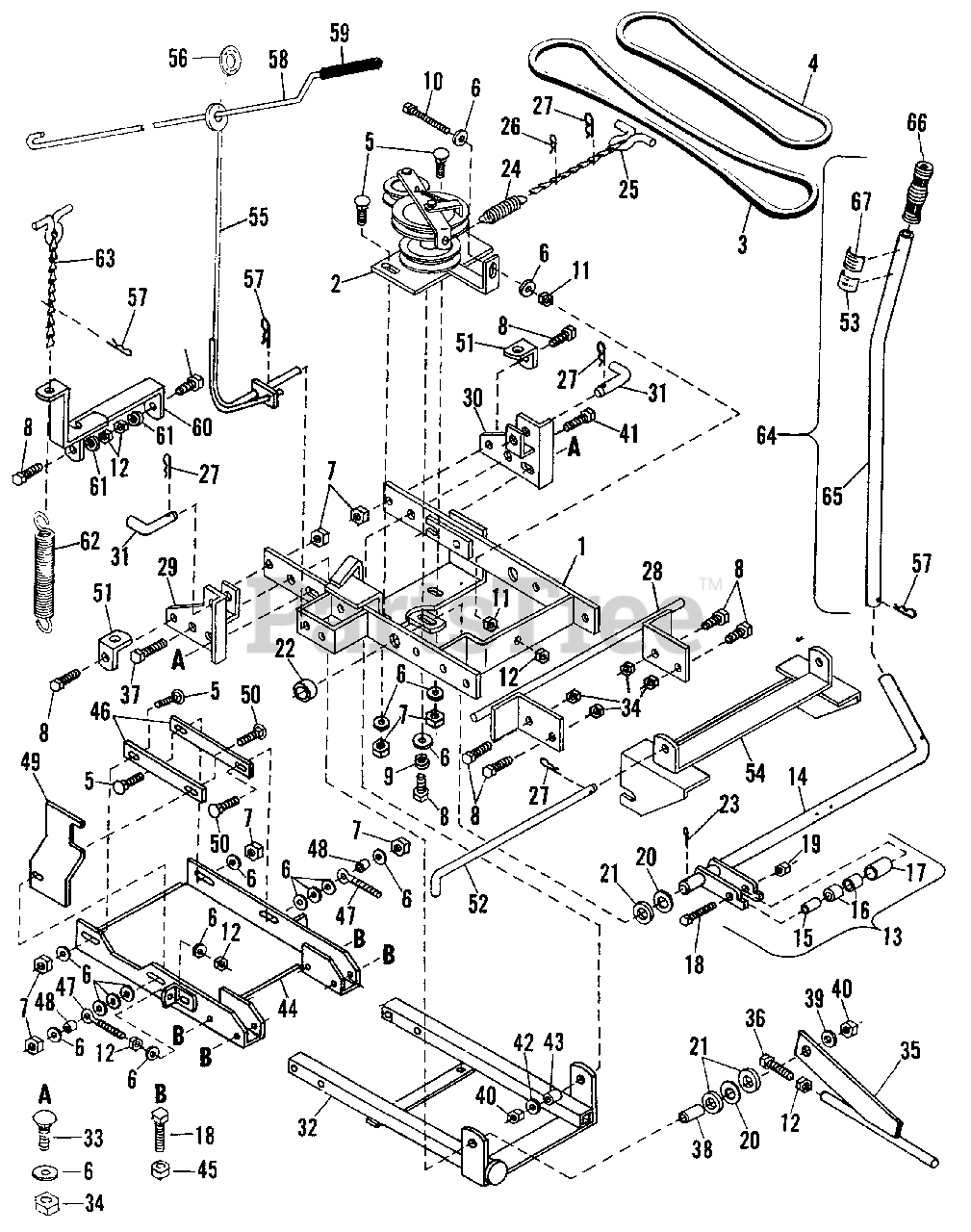

UT-36040 - Homelite Snow Thrower Attachment Lift & Drive Parts Diagram

Snow Thrower Attachment

Lift & Drive Parts Diagram

  • Title

1

Homelite JA 995718

Mounting Frame Upper Assembly

$

$

Currently unavailable

2

Homelite JA 995753

Pulley Mounting Bracket Assembly (Complete)

$

$

Currently unavailable

3

Homelite JA 995721

V-Belt - Pulley Housing to Header

$

$

Not available

4

Homelite JA 995722

V-Belt - Pulley Housing to Tractor

$

$

Currently unavailable

5

Homelite JA 995723

Bolt - 3/8-16 x 1" Carriage

$

$

Currently unavailable

6

Homelite JA 452008

Washer - 7/16" x 1" x .083 Flat

$3.49

$

Usually ships in 3-7 days

0

7

Homelite JA 444762

Nut & Lock Washer Assembly - 3/8-16 Hex

$

$

Currently unavailable

8

Homelite JA 400262

Bolt - 3/8-16 x 1" Hex Head

$

$

Currently unavailable

9

Homelite JA 446140

Washer - 3/8" Medium Lock

$

$

Currently unavailable

10

Homelite JA 995724

Bolt

$

$

Currently unavailable

11

Homelite JA 443810

Nut - 3/8-16 Hex Jam

$

$

Not available

12

Homelite JA 443110

Nut - 3/8-16 Light Hex

$

$

Not available

13

Homelite JA 995725

Lift Bar Assembly (Complete)

$

$

Currently unavailable

14

Homelite JA 995726

Lift Bar Assembly

$

$

Currently unavailable

15

Homelite JA 995727

Spacer

$

$

Currently unavailable

16

Homelite JA 995728

Spacer

$

$

Currently unavailable

17

Homelite JA 995729

Spacer

$

$

Currently unavailable

18

Homelite JA 400194

Bolt - 5/16-18 x 1-3/4" Hex Head

$

$

Currently unavailable

19

Homelite JA 444718

Nut & Lock Washer Assembly - 5/16-18 Hex

$

$

Not available

20

Homelite JA 995730

Washer

$

$

Currently unavailable

21

Homelite JA 995704

Washer - 13/16" x 1 1/2" x .134 Flat

$

$

Currently unavailable

22

Homelite JA 995731

Spacer

$

$

Currently unavailable

23

Homelite JA 995732

Pin - 1/8" x 1 1/4" Cotter

$

$

Currently unavailable

24

Homelite JA 995744

Spring

$

$

Currently unavailable

25

Homelite JA 995755

Chain & Toggle Assembly

$

$

Currently unavailable

26

Homelite JA 995733

Spring Clip

$

$

Currently unavailable

27

Homelite JA 995720

Hair Cotter Pin

$

$

Currently unavailable

28

Homelite JA 995756

Rear Mounting Bracket Assembly

$

$

Currently unavailable

29

Homelite JA 995757

Front Mounting Bracket (Left Hand) Assembly

$

$

Currently unavailable

30

Homelite JA 995758

Front Mounting Bracket (Right Hand) Assembly

$

$

Currently unavailable

31

Homelite JA 995759

Locating Pin

$

$

Currently unavailable

32

Homelite JA 995760

Mounting Frame Lower Assembly

$

$

Currently unavailable

33

Homelite JA 995761

Bolt - 3/8-16 x 1 1/4" Carriage

$

$

Currently unavailable

34

Homelite JA 995746

Nut - 3/8-16 Hex Lock

$

$

Currently unavailable

35

Homelite JA 995734

Lift Extension Assembly

$

$

Currently unavailable

36

Homelite JA 995735

Bolt

$

$

Currently unavailable

37

Homelite JA 400414

Bolt - 1/2-13 x 2 1/4" Hex Head

$

$

Currently unavailable

38

Homelite JA 995736

Spacer

$

$

Currently unavailable

39

Homelite JA 452010

Washer - 1/2" x 1 1/4" x .083 Flat

$

$

Currently unavailable

40

Homelite JA 444758

Nut - 1/2-13 Hex Lock

$

$

Currently unavailable

41

Homelite JA 400410

Bolt - 1/2-13 x 1-3/4" Hex Head

$

$

Currently unavailable

42

Homelite JA 453017

Washer - 17/32" x 1-1/16" x .095 Flat

$

$

Not available

43

Homelite JA 995728

Spacer

$

$

Currently unavailable

44

Homelite JA 995762

Pivot Bracket Channel Assembly

$

$

Currently unavailable

45

Homelite JA 995763

Nut - 5/16-18 Hex Lock

$

$

Currently unavailable

46

Homelite JA 995705

Header Channel Strap

$

$

Currently unavailable

47

Homelite JA 995706

Eye Bolt

$

$

Currently unavailable

48

Homelite JA 995707

Spacer

$

$

Currently unavailable

49

Homelite JA 995708

Belt Adjustment Guide Bracket

$

$

Currently unavailable

50

Homelite JA 441632

Bolt - 3/8-16 x 2 1/4" Carriage

$

$

Currently unavailable

51

Homelite JA 995764

Chain Anchor Bracket

$

$

Currently unavailable

52

Homelite JA 995765

Locating Pin

$

$

Currently unavailable

53

Homelite JA 995717

Lift Control Decal

$

$

Currently unavailable

54

Homelite JA 995766

Rear Hanger Assembly

$

$

Currently unavailable

55

Homelite JA 995767

Crank Rod Support & Decal Assembly

$

$

Currently unavailable

56

Homelite JA 995714

Chute Direction Decal

$

$

Currently unavailable

57

Homelite JA 995709

Hair Cotter Pin

$

$

Currently unavailable

58

Homelite JA 995712

Crank Rod

$

$

Currently unavailable

59

Homelite JA 995713

Handle Grip

$

$

Currently unavailable

60

Homelite JA 995768

Chain Anchor Assembly

$

$

Currently unavailable

61

Homelite JA 995769

Washer - 3/8" Medium Lock

$

$

Currently unavailable

62

Homelite JA 995710

Lift Spring

$

$

Currently unavailable

63

Homelite JA 995711

Chain & Toggle Assembly

$

$

Currently unavailable

64

Homelite JA 995770

Lift Handle Assembly (Complete)

$

$

Currently unavailable

65

Homelite JA 995771

Lift Handle

$

$

Currently unavailable

66

Homelite JA 995715

Handle Grip

$9.49

$

Usually ships in 3-7 days

0

67

Homelite JA 995716

Raise & Lower Decal

$

$

Currently unavailable

NP

Homelite JA 990126

Repair Parts Manual

$

$

Currently unavailable

NP

Homelite JA 992450

Operator's Manual

$

$

Currently unavailable
