UT-36037 - Homelite 42" Rotary Mower Attachment Mower Parts Diagram

42" Rotary Mower Attachment

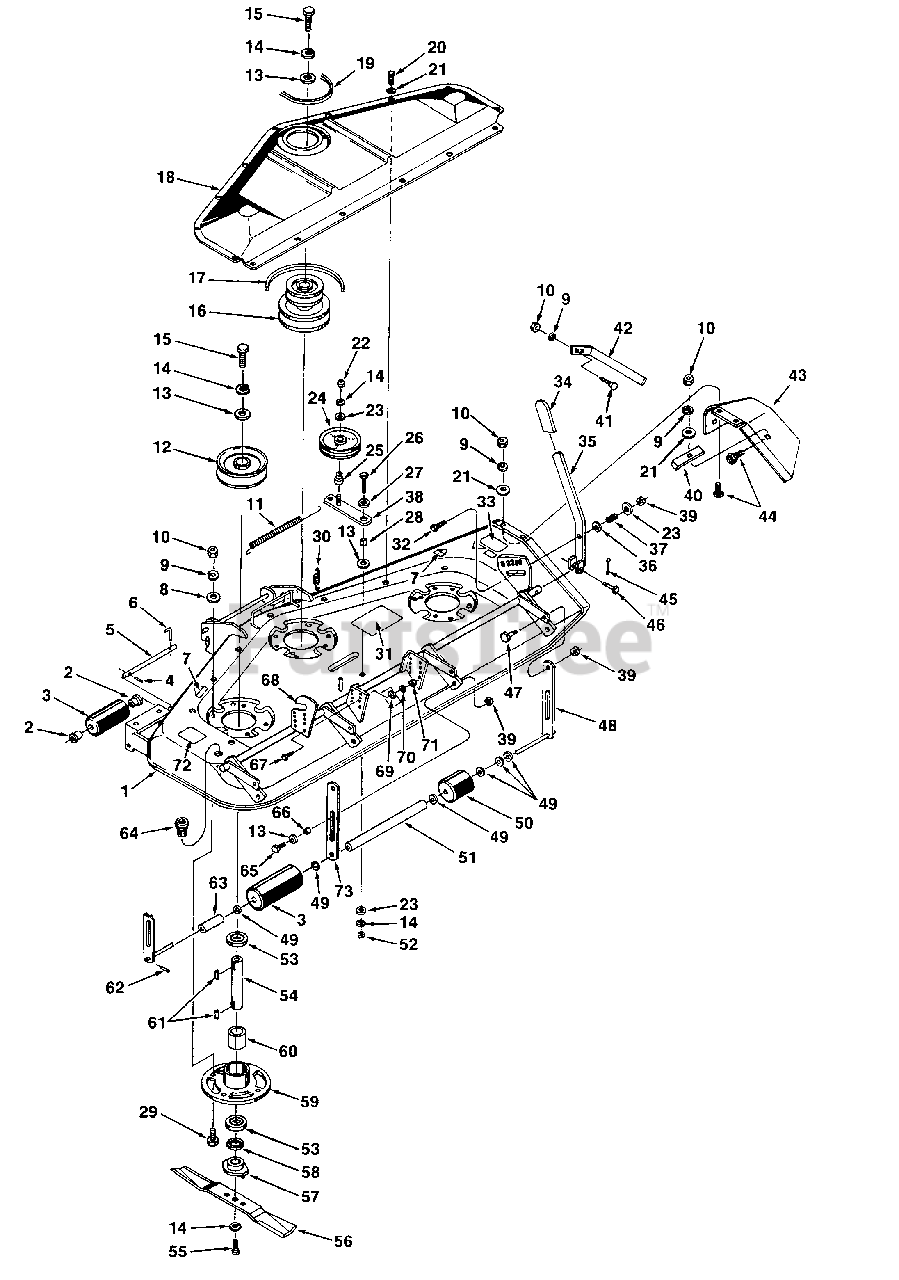

Mower Parts Diagram

  • Title

1

Homelite JA991711

MOWER HOUSING ASSEMBLY

$

$

Currently unavailable

2

Homelite JA549039

BUSHING- Roller

$

$

Not available

3

Homelite JA335178

ROLLER- Assy (long)

$

$

Not available

4

Homelite JA461381

PIN- 3/16 x 13/16 roller

$

$

Not available

5

Homelite JA351426

SHAFT- Front roller

$

$

Currently unavailable

6

Homelite JA351494

PIN- Hold

$

$

Not available

7

Homelite JA339460

DECAL- CPSC warning

$

$

Not available

8

Homelite JA452006

WASHER- Flat

$

$

Currently unavailable

9

Homelite JA446136

WASHER- Lock 5/16 hvy
(Superseded to UP03791)

$

$

Not available

10

Homelite JA443106

NUT- 5/16-18 hex
(Superseded to 81018)

$

$

Not available

11

Homelite JA352120

SPRING- Idler pulley

$

$

Not available

12

Homelite JA392601

PULLEY- R.H. & L.H. cutter drive

$

$

Currently unavailable

13

Homelite JA310711

WASHER- Pulley retainer

$

$

Not available

14

Homelite JA446142

WASHER- Lock 3/8 hvy

$

$

Not available

15

Homelite JA400300

SCREW- 3/8-24 x 1 1/4 hex hd cap

$

$

Currently unavailable

16

Homelite JA991570

PULLEY- Mower drive

$

$

Currently unavailable

17

Homelite JA328821

BELT- Cutter drive

$

$

Currently unavailable

18

Homelite JA991881

Cover- Pulley

$

$

Currently unavailable

19

Homelite JA328891

BELT- V engine to mower

$

$

Not available

20

Homelite JA408865

SCREW- 1/4-20 x 9/16 hex hd thd forming

$

$

Currently unavailable

21

Homelite JA453009

WASHER- 5/16 sae flat
(Superseded to UP07173)

$

$

Not available

22

Homelite JA443810

NUT- 3/8-16 hex jam

$

$

Not available

23

Homelite JA453011

WASHER- 3/8 std flat
(Superseded to PS84010)

$

$

Not available

24

Homelite JA154796

IDLER PULLEY ASSEMBLY

$

$

Currently unavailable

25

Homelite JA344952

STANDOFF- Idler

$

$

Currently unavailable

26

Homelite JA404122

SCREW- 3/8-16 x 1 1/4 C/R truss hd

$

$

Not available

27

Homelite JA319755

WASHER- Arm retaining

$15.99

$

Usually ships in 3-7 days

0

28

Homelite JA352594

SPACER- idler arm pivot

$

$

Currently unavailable

29

Homelite JA400184

SCREW- 5/16-18 x 3/4 hex hd
(Superseded to UP03381)

$

$

Not available

30

Homelite JA351493

SPRING- Hitch latch (front)

$

$

Currently unavailable

31

Homelite JA335207

DECAL- Instruction

$

$

Currently unavailable

32

Homelite JA400270

SCREW- 3/8-16 x 2 hex hd cap

$

$

Not available

33

Homelite JA336737

DECAL- Danger

$

$

Currently unavailable

34

Homelite JA351491

GRIP- height adjusting handle

$

$

Currently unavailable

35

Homelite JA130207

CONTROL LEVER- Cutter height

$

$

Currently unavailable

36

Homelite JA351492

WASHER- Control lever

$

$

Currently unavailable

37

Homelite JA351484

SPRING- Control lever latch

$

$

Currently unavailable

38

Homelite JA990075

WELDMENT- idler arm

$

$

Currently unavailable

39

Homelite JA444762

NUT- 3/8-16 hex gripco c/lock

$

$

Currently unavailable

40

Homelite JA353272

BRACKET- Deflector clamping

$

$

Currently unavailable

41

Homelite JA440080

BOLT- 5/16-18 x 7/8 rd hd

$

$

Currently unavailable

42

Homelite JA392604

GUARD- Toe

$

$

Currently unavailable

43

Homelite JA991281

DEFLECTOR- Discharge chute

$

$

Currently unavailable

44

Homelite JA441602

Bolt- 5/16-18 x 3/4 reg carr.

$4.99

$

Usually ships in 3-7 days

0

45

Homelite JA460024

PIN- 1/8 x 1/2 cotter

$

$

Currently unavailable

46

Homelite JA352699

PIN- Pivot

$

$

Currently unavailable

47

Homelite JA344996

PIN- Lift

$

$

Currently unavailable

48

Homelite JA160007

REAR ROLLER SHAFT & ARM ASSEMBLY

$

$

Currently unavailable

49

Homelite JA453017

WASHER- 1/2 std sae flat

$

$

Not available

50

Homelite JA335181

ROLLER ASSEMBLY (short)

$

$

Not available

51

Homelite JA351657

SPACER- Rear roller outer

$

$

Currently unavailable

52

Homelite JA443110

NUT- 3/8-16 hex

$

$

Not available

53

Homelite JA375882

BEARING- Cutter shaft

$

$

Not available

54

Homelite JA339609

SHAFT- Cutter Side

$

$

Currently unavailable

Homelite JA339610

SHAFT- Cutter center

$

$

Not available

55

Homelite JA824540

SCREW- 3/8-24 x 1 hex hd cap

$5.49

$

Usually ships in 3-7 days

0

56

Homelite JA519016

CUTTER BAR SET

$

$

Not available

57

Homelite JA339608

ADAPTOR- Blade

$

$

Currently unavailable

58

Homelite JA990140

WASHER- Flat
(Superseded to JA455055)

$

$

Not available

59

Homelite JA142192

CUTTER HOUSING ASSEMBLY

$

$

Currently unavailable

60

Homelite JA376076

SPACER- Bearing

$

$

Currently unavailable

61

Homelite JA320791

KEY- Par. 3/16 x 3/16 x 13/16

$

$

Not available

62

Homelite JA461361

PIN- 1/8 x 7/8 roll

$

$

Not available

63

Homelite JA351433

SPACER- Rear roller center

$

$

Currently unavailable

64

Homelite JA375977

FITTING- Washout

$

$

Currently unavailable

65

Homelite JA400264

SCREW- 3/8-16 x 1 1/4 hex hd cap

$

$

Currently unavailable

66

Homelite JA350638

SPACER- Rear roller guide

$

$

Not available

67

Homelite JA400110

SCREW- 1/4-20 x 7/8 hex

$

$

Currently unavailable

68

Homelite JA374983

BRACKET- Rear hanger

$

$

Currently unavailable

69

Homelite JA453023

WASHER- 1/4 flat bracket mounting
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

70

Homelite JA446130

WASHER- lock 1/4 hvy bracket mounting

$

$

Not available

71

Homelite JA443102

NUT- 1/4-20 hex bracket mtg
(Superseded to JA993730)

$

$

Not available

72

Homelite JA336736

DECAL- Danger

$

$

Currently unavailable

73

Homelite JA351431

ARM- Rear roller mounting

$

$

Currently unavailable
