UT-36020 - Homelite 34" Rotary Mower Attachment 34" Mower Parts Diagram

34" Rotary Mower Attachment

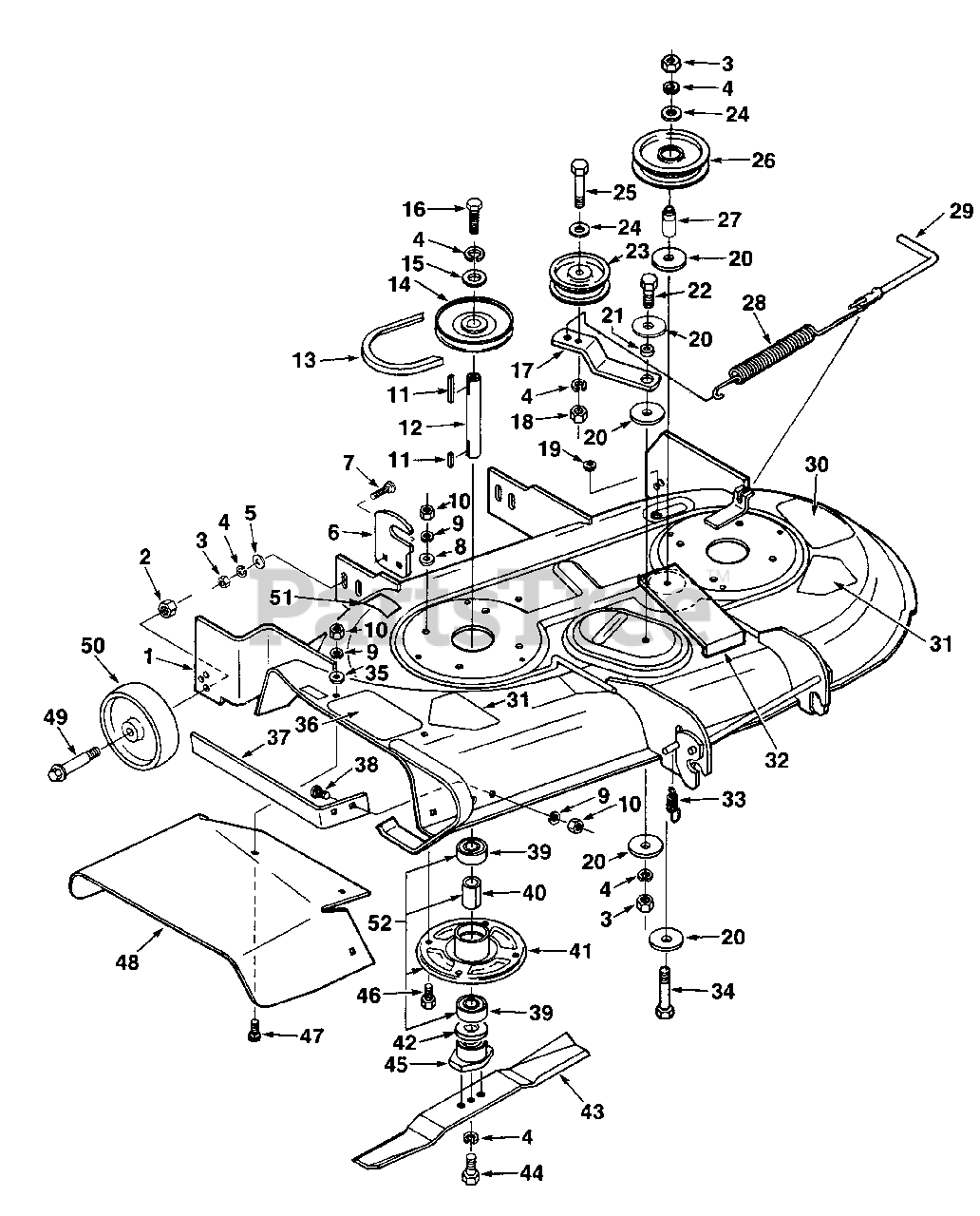

34" Mower Parts Diagram

  • Title

1

Homelite JA991790

MOWER HOUSING ASSEMBLY

$

$

Currently unavailable

2

Homelite JA444762

NUT- 3/8-16 Prev. tq. hex L' nut

$

$

Currently unavailable

3

Homelite JA443110

NUT- 3/8-16 Hex

$

$

Not available

4

Homelite JA446142

WASHER- Lock 3/8 heavy

$

$

Not available

5

Homelite JA314916

WASHER

$

$

Currently unavailable

6

Homelite JA991121

BRACKET- Rear hanger

$

$

Currently unavailable

7

Homelite JA441676

BOLT- 3/8-16 x 3/4 rd. hd. sq. neck Carr

$10.99

$

Usually ships in 3-7 days

0

8

Homelite JA452006

WASHER- 5/16 std. Flat

$

$

Currently unavailable

9

Homelite JA446136

WASHER- Lock 5/16 hvy.
(Superseded to UP03791)

$

$

Not available

10

Homelite JA443106

NUT- 5/16-18 Hex
(Superseded to 81018)

$

$

Not available

11

Homelite JA320791

KEY- 3/16 x 13/16 parallel

$

$

Not available

12

Homelite JA339610

CUTTER- Shaft

$

$

Not available

13

Homelite JA392606

BELT- Cutter drive

$

$

Currently unavailable

14

Homelite JA392595

PULLEY- Mower drive

$

$

Currently unavailable

15

Homelite JA310711

WASHER- Pulley retainer

$

$

Not available

16

Homelite JA824540

SCREW- 3/8-24 x 2 1/4 hex hd.

$5.49

$

Usually ships in 3-7 days

0

17

Homelite JA376140

ARM- Idler

$

$

Currently unavailable

18

Homelite JA443810

NUT- 3/8-16 hex jam

$

$

Not available

19

Homelite JA375977

FITTING- Wash out

$

$

Currently unavailable

20

Homelite JA309457

WASHER- Blade mtg.

$

$

Not available

21

Homelite JA352594

SPACER- Idler arm pivot

$

$

Currently unavailable

22

Homelite JA400266

SCREW- 3/8-16 x 1 1/4 hex hd.

$

$

Currently unavailable

23

Homelite JA336222

PULLEY- Idler

$

$

Currently unavailable

24

Homelite JA453011

WASHER- 3/8 flat
(Superseded to PS84010)

$

$

Not available

25

Homelite JA400270

SCREW- 3/8-16 x 2 Hex hd.

$

$

Not available

26

Homelite JA154796

IDLER PULLEY ASSEMBLY

$

$

Currently unavailable

27

Homelite JA376141

MOUNTING- Spacer idler

$

$

Currently unavailable

28

Homelite JA990146

SPRING- Extension

$

$

Currently unavailable

29

Homelite JA376144

ROD- Spring release

$

$

Currently unavailable

30

Homelite JA336737

DECAL- Danger

$

$

Currently unavailable

31

Homelite JA339460

DECAL- CPSC warning

$

$

Not available

32

Homelite JA993311

SUPPORT- Idler

$

$

Currently unavailable

33

Homelite JA351493

SPRING- Hinge latch, front

$

$

Currently unavailable

34

Homelite JA400278

SCREW- 3/8-16 x 3 hex hd.

$

$

Currently unavailable

35

Homelite JA453009

WASHER- 5/16 SAE flat
(Superseded to UP07173)

$

$

Not available

36

Homelite JA336736

DECAL- Danger

$

$

Currently unavailable

37

Homelite JA39265

GUARD- Toe

$

$

Currently unavailable

38

Homelite JA440080

BOLT- 5/16-18 x 7/8 rd. hd. short sq.

$

$

Currently unavailable

39

Homelite JA375882

BEARING- Cutter shaft

$

$

Not available

40

Homelite JA376076

SPACER- Bearing

$

$

Currently unavailable

41

Homelite JA142192

CUTTER HOUSING ASSEMBLY

$

$

Currently unavailable

42

Homelite JA990140

WASHER- Flat
(Superseded to JA455055)

$

$

Not available

43

Homelite JA519015

CUTTER BAR SET

$

$

Currently unavailable

44

Homelite JA400300

SCREW- 3/8-24 x 1 hex SAE Grade 8

$

$

Currently unavailable

45

Homelite JA339608

BLADE- Adapter

$

$

Currently unavailable

46

Homelite JA400184

SCREW- 5/16-18 x 3/4 hex hd
(Superseded to UP03381)

$

$

Not available

47

Homelite JA440076

BOLT- 5/16-18 x 5/8 sq. neck carr

$

$

Currently unavailable

48

Homelite JA991171

EXTENSION- Chute

$

$

Currently unavailable

49

Homelite JA376084

BOLT- Shoulder axle

$

$

Currently unavailable

50

Homelite JA339607

WHEEL- Gauge

$

$

Not available

51

Homelite JA990310

DECAL- Belt mtg. instruction

$

$

Currently unavailable

52

Homelite JA991870

CUTTER- Spindle

Note: Includes items #12, 39, 40 & 41

$

$

Currently unavailable
