UT-33650 (090330012) - Homelite String Trimmer, 26cc, Rev 02 Figure B Parts Diagram

String Trimmer, 26cc, Rev 02

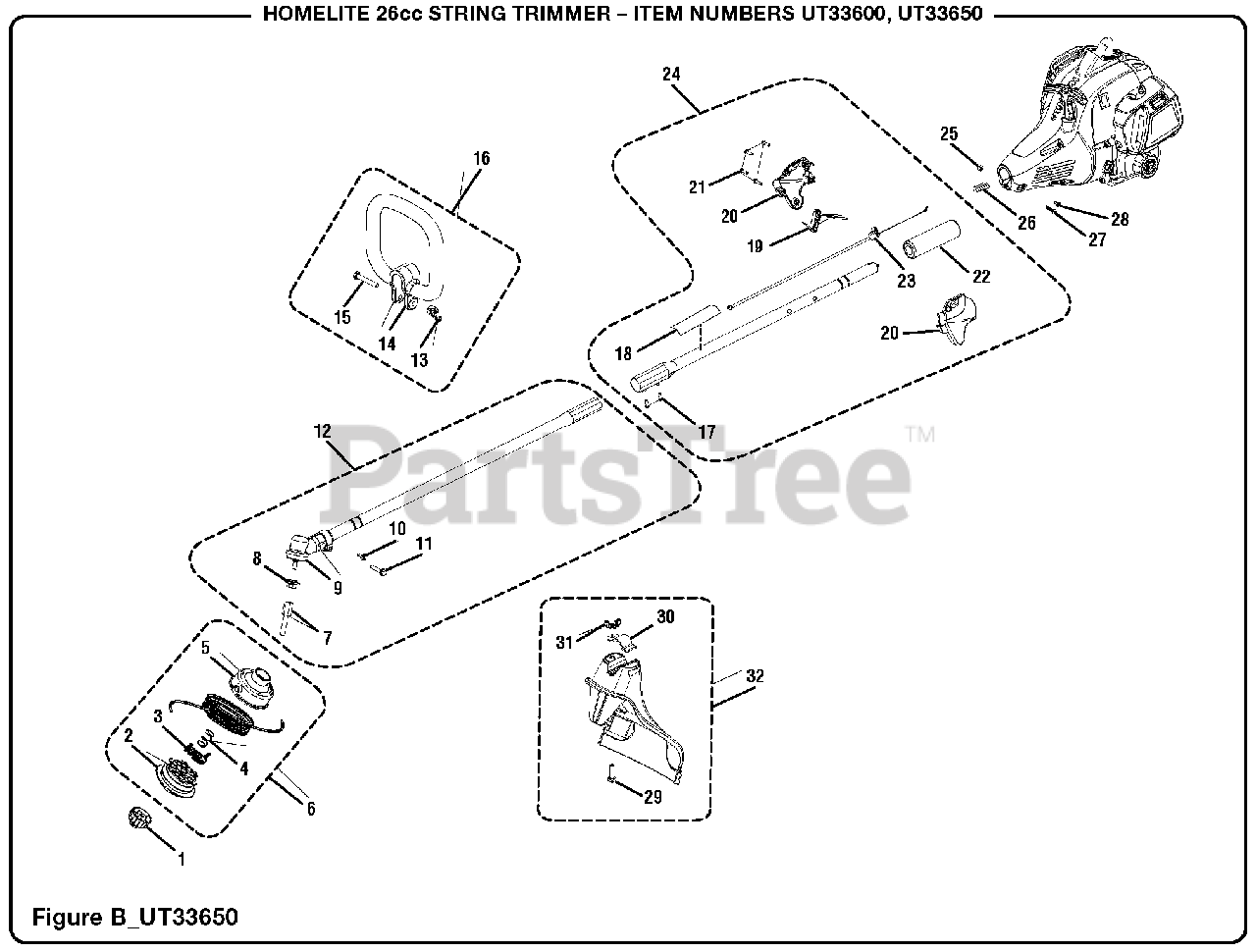

Figure B Parts Diagram

  • Title

1

Homelite 308042003

Spool Retainer

$7.49

$

In Stock, Qty 5

0

2

Homelite 526938001

Spool

$4.49

$

In Stock, only 3 left!

0

3

Homelite 526939001

Spool Cover

$

$

Not available

4

Homelite 678022001

Compression Spring
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

5

Homelite 310643004

String Head Housing

$8.99

$

In Stock, only 1 left!

0

6

Homelite 309562007

String Head Assembly

Note: (Inc. Key Nos. 2-5)

$

$

Not available

7

Homelite 678019003

Adaptor
(Superseded to 678019001)

$4.49

$

In Stock, only 1 left!

0

8

Homelite 678011002

Flange Washer

$

$

Not available

9

Homelite 308210009

Gear Head

$48.99

$

In Stock, only 1 left!

0

10

Homelite 660641001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Hd.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

12

Homelite 311101001

Lower Boom Assembly

Note: (Inc. Key Nos. 7-11)

$61.99

$

In Stock, only 1 left!

0

13

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

14

Homelite 518674001

Front Handle

$7.49

$

Usually ships in 3-7 days

0

15

Homelite 660643009

Bolt (1/4-20 x 45 mm, Cap Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 308741001

Front Handle Assembly

Note: (Inc. Key Nos. 13-15)

$12.99

$

In Stock, only 1 left!

0

17

Homelite 661848001

Set Screw (M5 x 10 mm, Hex Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 940657168

Icon Warning Label

$

$

Not available

19

Homelite 521811002

Throttle Trigger

$

$

Not available

20

Homelite 310831003

Handle Assembly

Note: (Inc. Key Nos. 19 and 21)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 660526003

Screw (M4 x 20 mm, T20 Torx Pan Hd. T.Fl.)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 570087005

Foam Grip

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 308842008

Throttle Cable

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 311105002

Boom Assembly

Note: (Inc. Key Nos. 17-23)

$18.99

$

Usually ships in 3-7 days

0

25

Homelite 678029002

Hex Nut (M6)

$1.99

$

In Stock, Qty 6

0

26

Homelite 679974001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 660697002

Screw (M6 x 20 mm, T27 Torx Button Hd.)

$1.99

$

In Stock, only 1 left!

0

28

Homelite 660925011

Screw (M4 x 8 mm, T20 Torx Round Hd.)

$1.99

$

In Stock, only 3 left!

0

29

Homelite 660857001

Bolt (1/4-20 x 1 in., Square Hd.)
(Superseded to PS02435)

$3.99

$

In Stock, only 1 left!

0

30

Homelite 678436001

Bracket

$1.49

$

In Stock, only 2 left!

0

31

Homelite 678034001

Wing Nut (1/4-20)

$1.99

$

In Stock, Qty 7

0

32

Homelite 308781001

Grass Deflector Assembly

Note: (Inc. Key Nos. 29-31)

$

$

Not available
