UT-33600 (090330017) - Homelite String Trimmer, 26cc, Rev 01 (2018-04) Figure A_UT33600 Parts Diagram

String Trimmer, 26cc, Rev 01

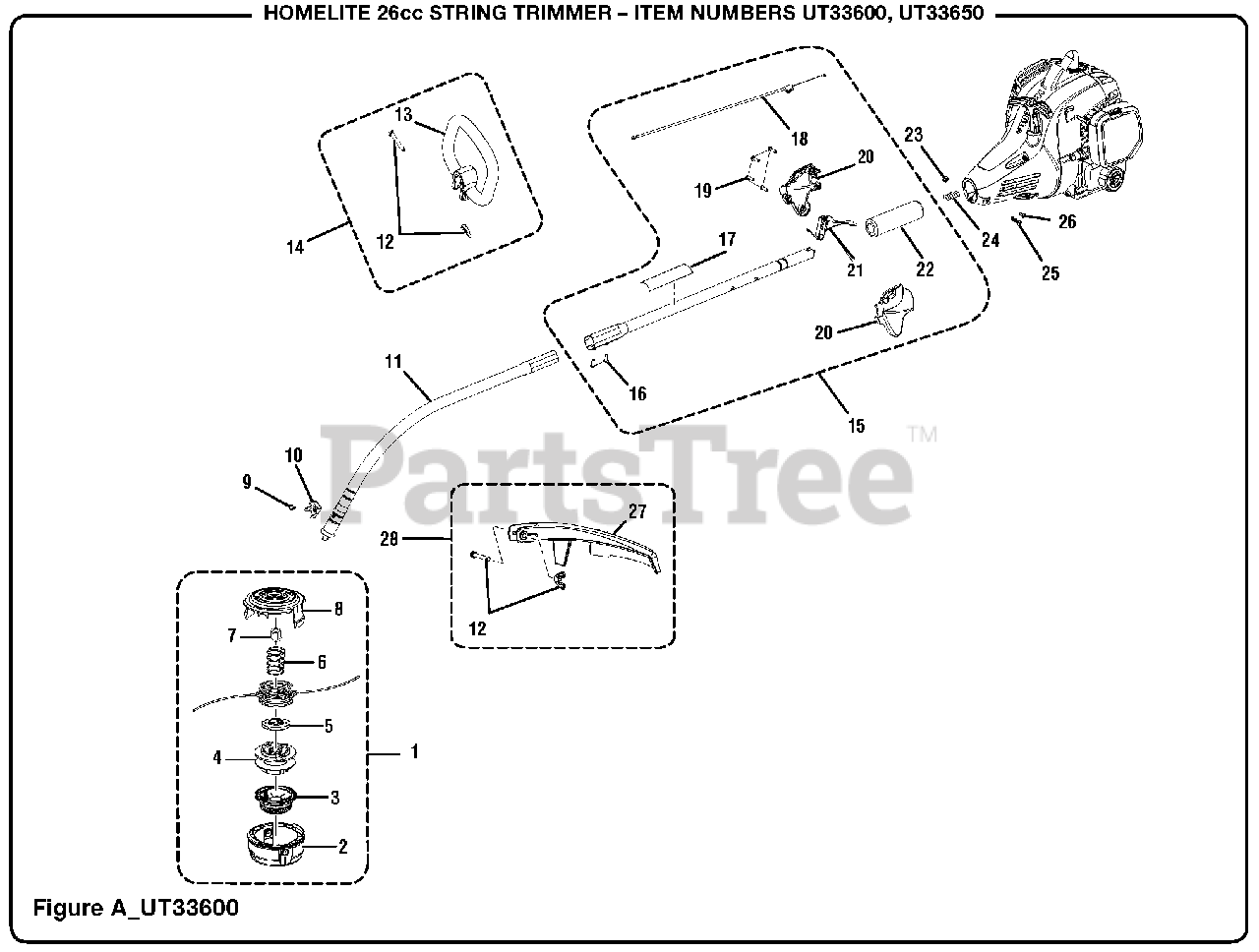

Figure A_UT33600 Parts Diagram

  • Title
1

Homelite 311759011

Trimmer Head Assembly

Note: (Inc. Key Nos. 2-8)

$20.99

$

In Stock, only 1 left!

0

2

Homelite 530366001

Lower Housing

$8.49

$

In Stock, only 2 left!

0

3

Homelite 530455001

Bump Knob (Gray)

$3.99

$

In Stock, Qty 5

0

$2.99

$

In Stock, Qty 14

0

5

Homelite 529803001

String Guide

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 678749001

Compression Spring

$1.99

$

In Stock, Qty 20+

0

7

Homelite 662569001

Hex Nut (M8)

$1.99

$

In Stock, Qty 6

0

8

Homelite 530001004

Upper Housing

$4.49

$

In Stock, only 2 left!

0

9

Homelite 660647001

Screw (10-32 x 3/8 in., Hex Hd.)

$1.99

$

In Stock, only 1 left!

0

$1.99

$

In Stock, Qty 5

0

11

Homelite 311100002

Lower Boom Assembly

$41.99

$

Usually ships in 3-7 days

0

12

Homelite 205012001

Fastener Kit

$7.49

$

In Stock, only 1 left!

0

13

Homelite 518674001

Front Handle

$7.49

$

Usually ships in 3-7 days

0

14

Homelite 308741001

Front Handle Assembly

Note: (Inc. Key Nos. 12-13)

$12.99

$

In Stock, only 1 left!

0

15

Homelite 205039001

Boom Assembly

Note: (Inc. Key Nos. 16-22)

$41.99

$

In Stock, only 1 left!

0

16

Homelite 661848001

Screw (M5 x 10 mm, Hex. Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 940657168

Icon Warning Label

$

$

Not available

18

Homelite 307196007

Throttle Cable

$3.99

$

In Stock, only 4 left!

0

19

Homelite 660526003

Screw (M4 x 20 mm, T20 Torx Pan Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 310831007

Trigger Handle Assembly

Note: (Inc. Key Nos. 19 and 21)

$9.49

$

In Stock, only 1 left!

0

21

Homelite 533909001

Throttle Trigger

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 570087005

Foam Grip

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 678029002

Hex Nut (M6)

$1.99

$

In Stock, Qty 6

0

24

Homelite 679974001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 660697002

Screw (M6 x 20 mm, T27 Torx Button Hd.)

$1.99

$

In Stock, only 1 left!

0

26

Homelite 660925011

Screw (M4 x 8 mm, T20 Torx Round Hd.)

$1.99

$

In Stock, only 3 left!

0

27

Homelite 308052015

Grass Deflector

$12.99

$

In Stock, only 1 left!

0

28

Homelite 308744010

Grass Deflector Assembly

Note: (Inc. Key Nos. 12 and 27)

$14.99

$

In Stock, only 1 left!

0

Homelite 995000053

Operator's Manual

Note: Not Shown

$

$

Not available
