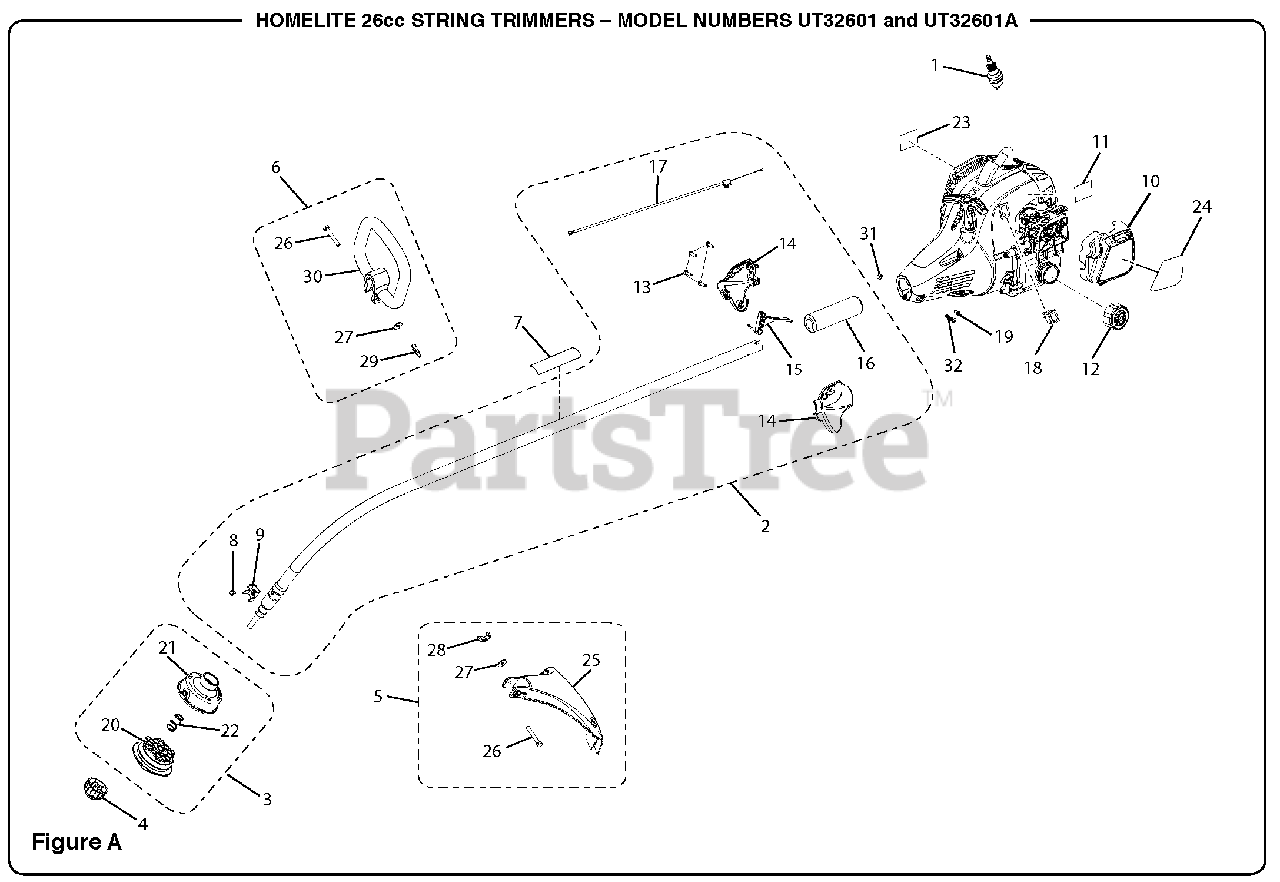

UT-32601-A - Homelite String Trimmer, 26cc Figure A Parts Diagram

String Trimmer, 26cc

Figure A Parts Diagram

  • Title

1

Homelite 870174001

Spark Plug (Champion RCJ6Y)

Note: Purchase Locally

$4.99

$

In Stock, Qty 20+

0

2

Homelite 310827001

Boom Assembly

$

$

Not available

3

Homelite 309562001

String Head Assembly
(Superseded to 309562007)

$

$

Not available

4

Homelite 308042002

Spool Retainer

$

$

Not available

5

Homelite 308744001

Grass Deflector Assembly
(Superseded to T308744001)

$

$

Not available

6

Homelite 308741001

Front Handle Assembly

$12.99

$

In Stock, only 1 left!

0

7

Homelite 940964009

Icon Warning Label
(Superseded to 940964039)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 660647001

Screw (10-32 x 3/8 in.)

$1.99

$

In Stock, only 1 left!

0

9

Homelite 638001001

Clamp

$1.99

$

In Stock, Qty 5

0

10

Homelite 519823001

Air Box Cover

$

$

Not available

11

Homelite 940991038

Model Label (26CS)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 310817001

Fuel Cap

$

$

Not available

13

Homelite 660526003

Screw (M4 x 20 mm)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 308888002

Handle Assembly

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 521811001

Throttle Trigger

$

$

Not available

16

Homelite 570087005

Foam Grip

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 308842008

Throttle Cable

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 760700002

Momentary Stop Switch
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

19

Homelite 660634001

Screw (8-16 x 5/16 in.)

$1.99

$

In Stock, Qty 20+

0

20

Homelite 310412001

Spool
(Superseded to 312223001)

$

$

Not available

21

Homelite 310643001

String Head Housing
(Superseded to 310643004)

$8.99

$

In Stock, only 1 left!

0

22

Homelite 678022001

Spring
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

23

Homelite 940974010

Combustion Warning Label

$

$

Not available

24

Homelite 940686060

Starting Label

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 308052001

Grass Deflector
(Superseded to T308744001)

$

$

Not available

26

Homelite 660643009

Bolt (1/4-20 x 2 in.)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 678008001

Washer

$1.99

$

In Stock, only 1 left!

0

28

Homelite 678034001

Wing Nut (1/4-20)

$1.99

$

In Stock, Qty 7

0

29

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

30

Homelite 518674001

Front Handle

$7.49

$

Usually ships in 3-7 days

0

31

Homelite 678029002

Hex Nut (M6)

$1.99

$

In Stock, Qty 6

0

32

Homelite 660697002

Screw (M6 x 20 mm)

$1.99

$

In Stock, only 1 left!

0

Homelite 988000434

Operator's Manual (960437002)

Note: (Not Shown)

$

$

Not available
