UT-32600 - Homelite String Trimmer, 26cc Figure B Parts Diagram

String Trimmer, 26cc

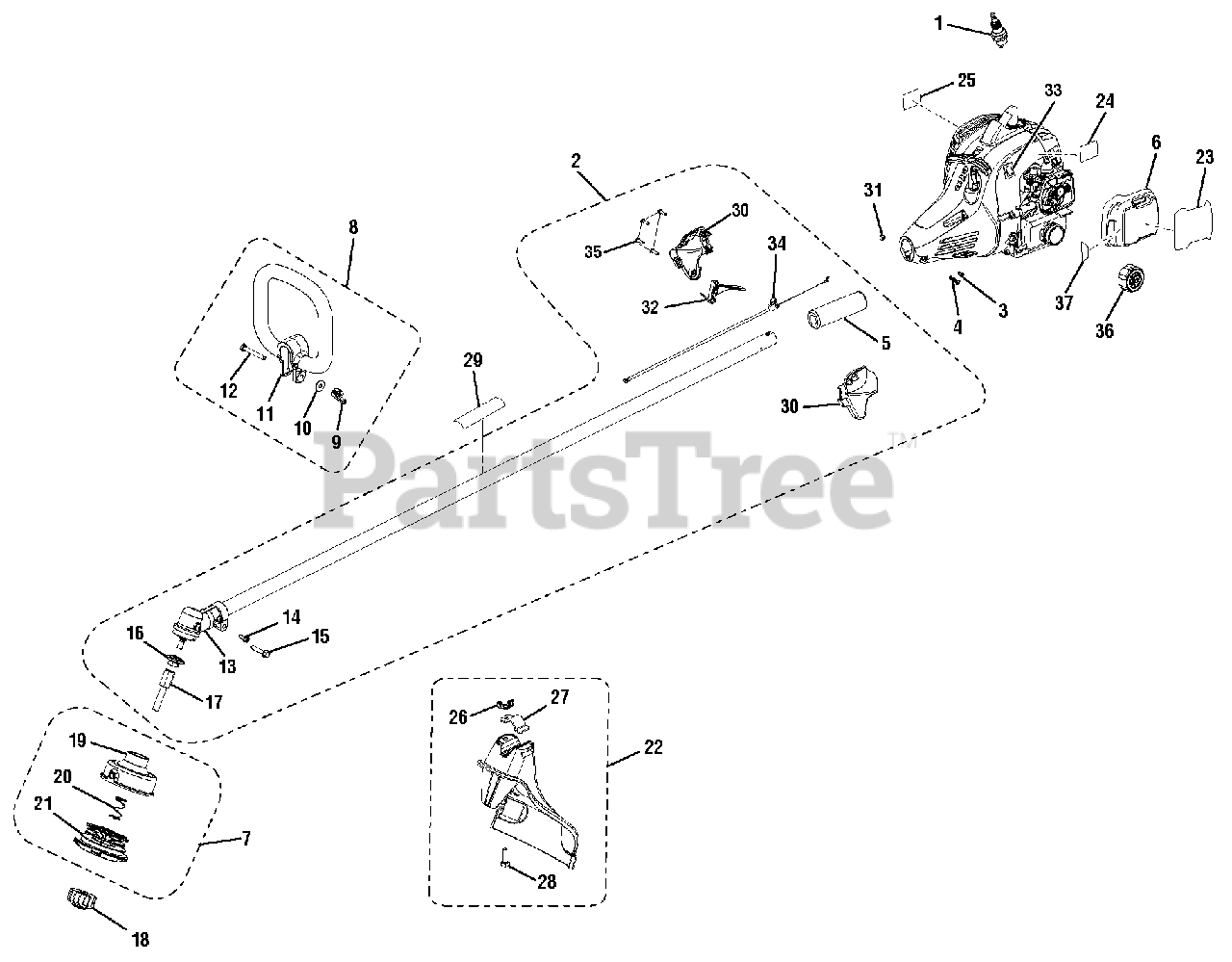

Figure B Parts Diagram

  • Title

1

Homelite 870174001

Spark Plug (Champion RCJ6Y)

$4.49

$

In Stock, Qty 20+

0

2

Homelite 310828001

Boom Assembly

$

$

Not available

3

Homelite 660634001

Screw (8-16 x 5/16 in.)

$1.99

$

In Stock, Qty 20+

0

4

Homelite 660697002

Screw (M6 x 20 mm)

$1.99

$

In Stock, only 1 left!

0

5

Homelite 570087005

Foam Grip

$1.99

$

In Stock, Qty 10

0

6

Homelite 521805001

Air Box Cover

$

$

Not available

7

Homelite 309562001

String Head Assembly
(Superseded to 309562007)

$

$

Not available

8

Homelite 308741001

Front Handle Assembly

$12.99

$

In Stock, only 1 left!

0

9

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

10

Homelite 678008001

Washer

$1.99

$

In Stock, only 1 left!

0

11

Homelite 518674001

Front Handle

$7.49

$

Usually ships in 3-7 days

0

12

Homelite 660643009

Bolt (1/4-20 x 2 in.)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 308210002

Gear Head
(Superseded to 308210009)

$48.99

$

In Stock, only 1 left!

0

14

Homelite 660641001

Screw (10-25 x 5/16 in.)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 660642001

Screw (1/4-20 x 1.25 in.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

16

Homelite 678011002

Flange Washer

$

$

Not available

17

Homelite 678019003

Adaptor
(Superseded to 678019001)

$4.49

$

In Stock, only 1 left!

0

18

Homelite 308042003

Spool Retainer

$7.49

$

In Stock, Qty 5

0

19

Homelite 310643001

String Head Housing
(Superseded to 310643004)

$8.99

$

In Stock, only 1 left!

0

20

Homelite 678022001

Spring
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

21

Homelite 310412001

Spool
(Superseded to 312223001)

$

$

Not available

22

Homelite 308781001

Grass Deflector Assembly

$

$

Not available

23

Homelite 940686065

Starting Label

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 940991039

Model Label (26SS)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 940654088

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 678034001

Wing Nut (1/4-20)

$1.99

$

In Stock, Qty 7

0

27

Homelite 678436001

Bracket

$1.49

$

In Stock, only 2 left!

0

28

Homelite 660857001

Bolt (Square Head)
(Superseded to PS02435)

$3.99

$

In Stock, only 1 left!

0

29

Homelite 940964009

Icon Warning Label
(Superseded to 940964039)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 308888002

Handle Assembly

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 678029002

Hex Nut (M6)

$1.99

$

In Stock, Qty 6

0

32

Homelite 521811001

Throttle Trigger

$

$

Not available

33

Homelite 760700002

Switch
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

34

Homelite 308842008

Throttle Cable

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 660526003

Screw (M4 x 20 mm)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 310817001

Fuel Cap

$

$

Not available

37

Homelite 940216003

Throttle Label

$1.49

$

Usually ships in 3-7 days

0
