UT-32050 - Homelite String Trimmer, 26cc Figure B Parts Diagram

String Trimmer, 26cc

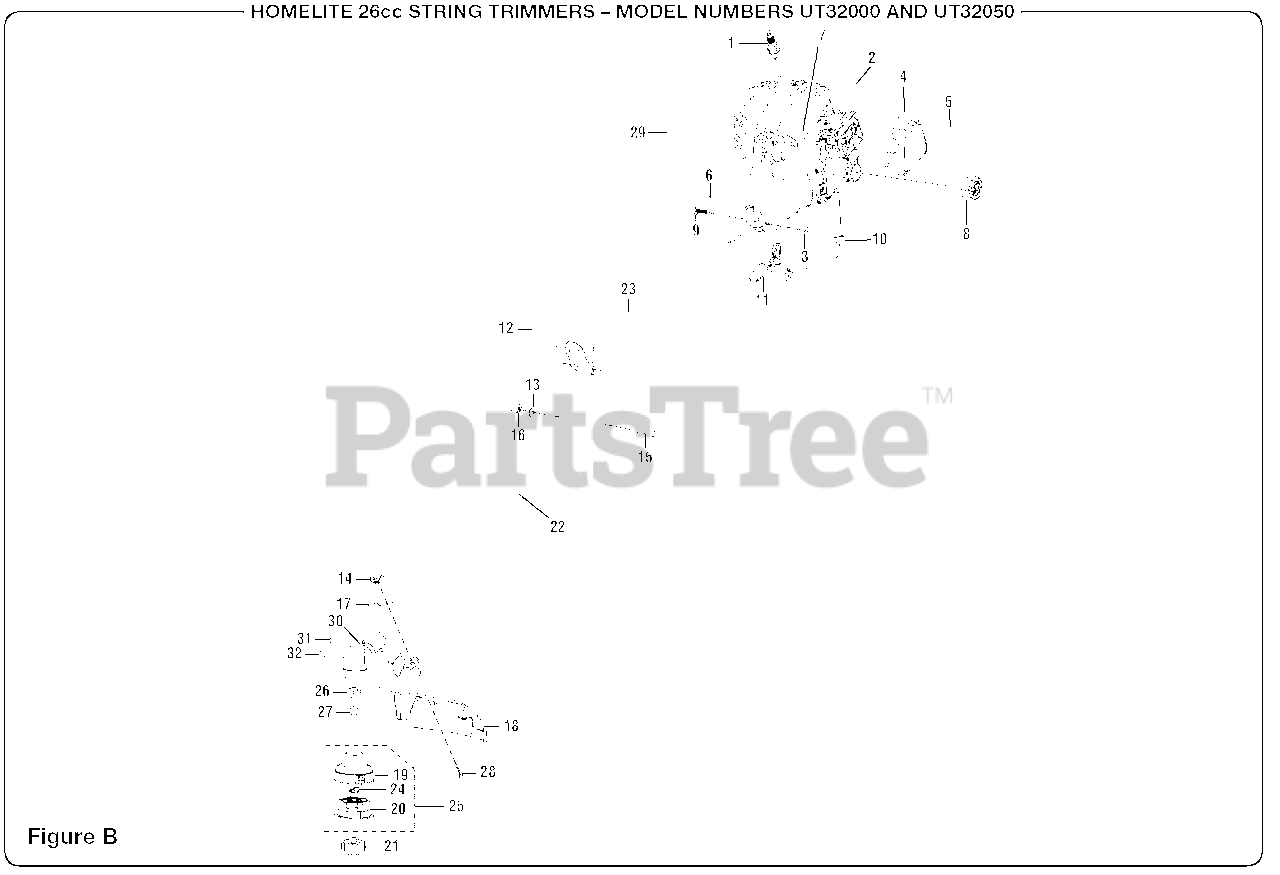

Figure B Parts Diagram

  • Title

1

Homelite 870174001

Spark Plug (Champion RCJ6Y)

Note: Purchase Locally

$4.99

$

In Stock, Qty 20+

0

2

Homelite 940991039

Logo Label

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 678029002

Hex Nut (M6)

$1.99

$

In Stock, Qty 6

0

4

Homelite 519823001

Air Box Cover

$

$

Not available

5

Homelite 940734059

Starting Label

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 660634001

Screw (8-16 x 5/16 in.)

$1.99

$

In Stock, Qty 20+

0

7

Homelite 760700002

Switch
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

8

Homelite 308680001

Fuel Cap

$

$

Not available

9

Homelite 660697002

Bolt (M6 x 20 mm)

$1.99

$

In Stock, only 1 left!

0

10

Homelite 270032001

Throttle Cable

$3.49

$

In Stock, only 1 left!

0

11

Homelite 518529001

Throttle Trigger

$

$

Not available

12

Homelite 518674001

Handle

$7.49

$

Usually ships in 3-7 days

0

13

Homelite 678008001

Washer (1/4-20)

$1.99

$

In Stock, only 1 left!

0

14

Homelite 678034001

Wing Nut (1/4-20)

$1.99

$

In Stock, Qty 7

0

15

Homelite 660643009

Bolt (1/4-20 x 45 mm)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

17

Homelite 678436001

Mounting Bracket

$1.49

$

In Stock, only 2 left!

0

18

Homelite 308781001

Straight Shaft Grass Deflector (Incl. Key Nos. 14, 17, and 28)

$

$

Not available

19

Homelite 308746002

Large String Head Housing
(Superseded to 099068001005)

$

$

Not available

20

Homelite 308044007

Dual Line Spool and String (0.080 in.)

$4.49

$

Usually ships in 3-7 days

0

21

Homelite 308042003

Spool Retainer

$7.49

$

In Stock, Qty 5

0

22

Homelite 308401002

Boom Assembly Incl. Key Nos. 26, 27, 31 and 32)

$

$

Not available

23

Homelite 940964009

Warning Label
(Superseded to 940964039)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 678022001

Spring
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

25

Homelite 308743002

String Head Assembly (Incl. Key Nos. 19-20 and 24)

$

$

Not available

26

Homelite 678011002

Flanged Washer

$

$

Not available

27

Homelite 678019002

Arbor

$

$

Not available

28

Homelite 660857001

Square Bolt (1/4-20 x 1 in.)
(Superseded to PS02435)

$3.99

$

In Stock, only 1 left!

0

29

Homelite 940654088

Combusion Warning Label

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 308210002

Gear Head
(Superseded to 308210009)

$48.99

$

In Stock, only 1 left!

0

31

Homelite 660642001

Bolt (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

32

Homelite 660641001

Screw (10-24 x 5/8 in.)

$1.99

$

Usually ships in 3-7 days

0
