UT-32000 - Homelite String Trimmer, 26cc Figure C Parts Diagram

String Trimmer, 26cc

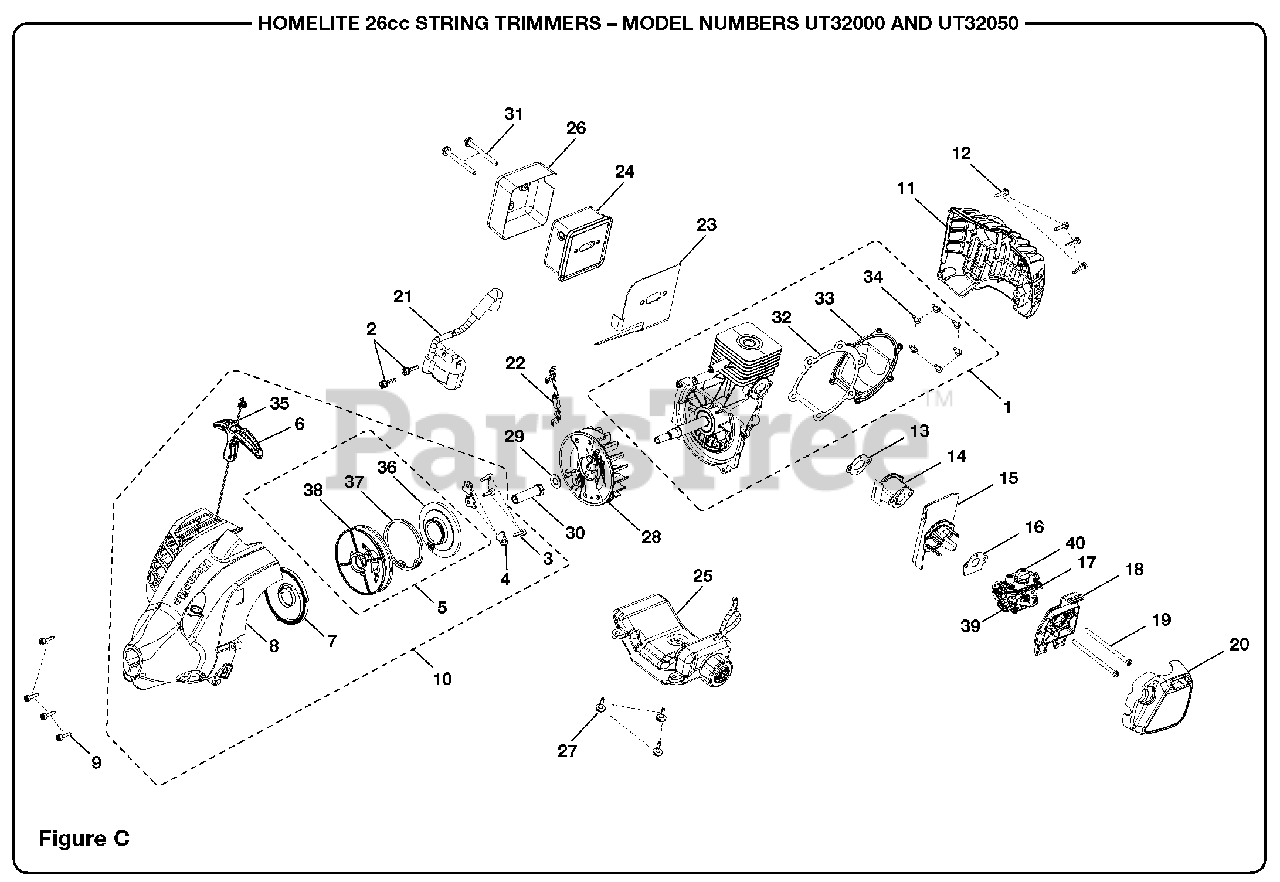

Figure C Parts Diagram

  • Title

1

Homelite 308891001

Short Block Assembly (Inc. Key Nos. 32-34)

$58.99

$

Usually ships in 3-7 days

0

2

Homelite 660968001

Screw (M4 x 19 mm)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 660967001

Screw (M4 x 14 mm)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

5

Homelite 310022002

Starter Pulley Assembly (Inc. Key Nos. 36-38)

$11.99

$

Usually ships in 3-7 days

0

6

Homelite 511731001

Pulley Handle
(Superseded to PS06114)

$

$

Not available

7

Homelite 638033001

Spring & Container Assembly

$5.49

$

In Stock, only 2 left!

0

8

Homelite 308672009

Front Housing

$

$

Not available

9

Homelite 660970001

Screw (M4 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

10

Homelite 308671012

Front Housing Assembly (Inc. Key Nos. 3-8; Plus Key Nos. 7, 10 and 11 from pages 2 & 4)

$20.99

$

Usually ships in 3-7 days

0

11

Homelite 519824001

Rear Housing
(Superseded to 519824002)

$3.99

$

Usually ships in 3-7 days

0

12

Homelite 660466001

Screw (M4 x 8 mm)

$1.99

$

In Stock, Qty 6

0

13

Homelite 901551001

Intake Gasket

$1.99

$

In Stock, only 3 left!

0

14

Homelite 518497001

Heat Dam

$3.99

$

In Stock, only 1 left!

0

15

Homelite 519826001

Heat Dam Deflector

$

$

Not available

16

Homelite 901552001

Carburetor Gasket

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 308054027

Carburetor

$33.99

$

Usually ships in 3-7 days

0

18

Homelite 518766001

Air Box Base

$

$

Not available

19

Homelite 660454007

Screw (M5 x 70 mm)

$1.99

$

In Stock, only 3 left!

0

20

Homelite 519823001

Air Box Cover

$

$

Not available

21

Homelite 850108001

Ignition Module
(Superseded to 850108002)

$30.99

$

In Stock, only 1 left!

0

22

Homelite 308863001

Lead Assembly

$

$

Not available

23

Homelite 901452001

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 308990016

Muffler Assembly

$28.99

$

Usually ships in 3-7 days

0

25

Homelite 308675001

Fuel Tank Assembly w/Cap
(Superseded to 308675051)

$

$

Not available

26

Homelite 638442001

Heat Shield

$4.49

$

In Stock, only 1 left!

0

27

Homelite 660970002

Screw (M4 x 10 mm, Shoulder)

$1.99

$

In Stock, only 1 left!

0

28

Homelite 308811001

Flywheel Assembly
(Superseded to 308811004)

$

$

Not available

29

Homelite 631049001

Washer
(Superseded to PS84065)

$

$

Not available

30

Homelite 638348001

Drive Connector

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 660638003

Screw (10-24 x 2-3/16 in.)
(Superseded to PS03999)

$

$

Not available

32

Homelite 901550001

Gasket
(Superseded to 901550003)

$1.99

$

In Stock, only 4 left!

0

33

Homelite 638337001

Crankcase Cover
(Superseded to 638337005)

$6.49

$

Usually ships in 3-7 days

0

34

Homelite 660925003

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 900849011

Starter Rope (49 in.)

$

$

Not available

36

Homelite 519867001

Starter Plate

$

$

Not available

37

Homelite 638412004

Torsion Return Spring

$

$

Not available

38

Homelite 519866001

Rope Pulley

$

$

Not available

39

Homelite 521523001

Choke Lever

$

$

Not available

40

Homelite 561635001

Primer Bulb

$8.49

$

In Stock, only 2 left!

0
