UT-26SSL3 VNM (095330108) - Homelite String Trimmer, 26cc, Rev 02 (2020-11) FIGURE B Parts Diagram

String Trimmer, 26cc, Rev 02

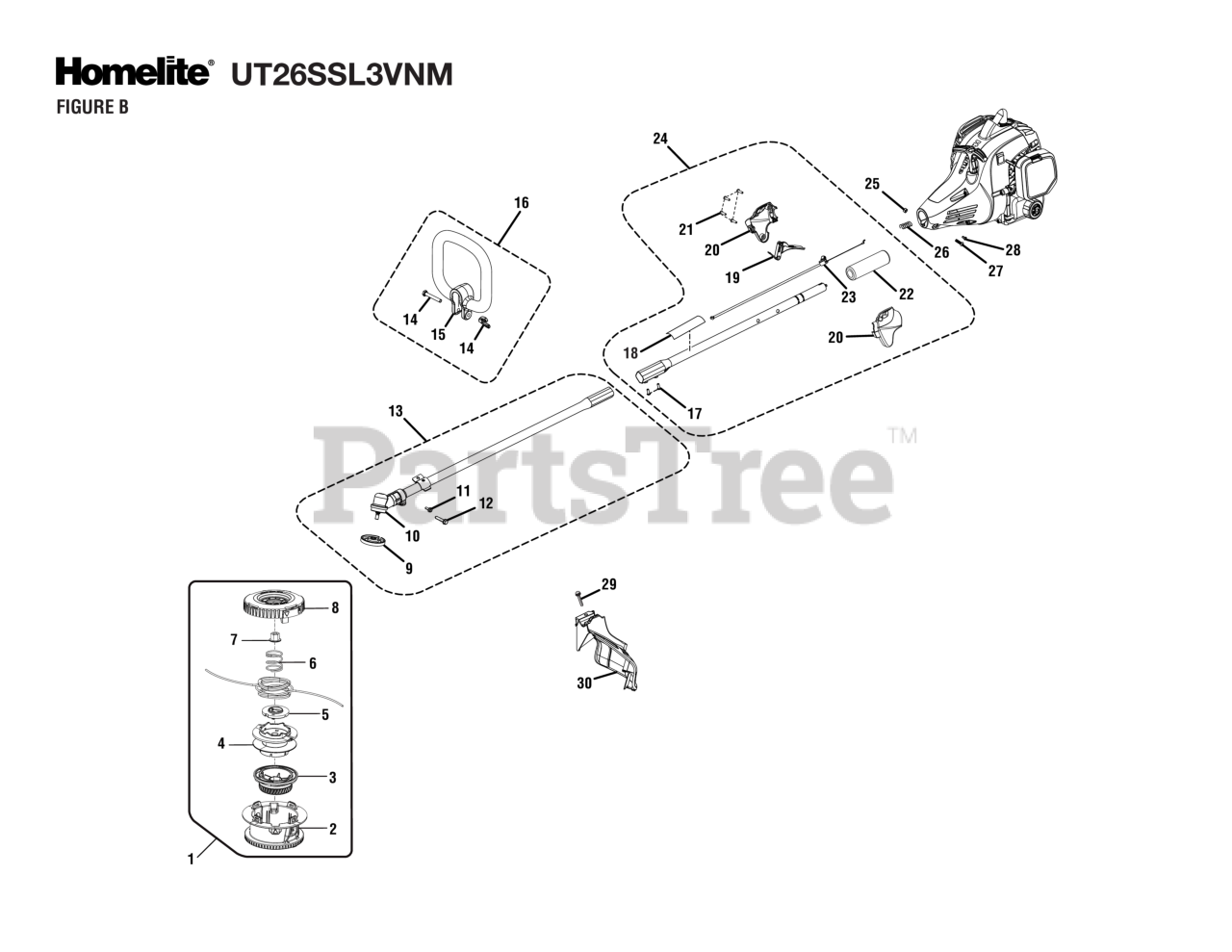

FIGURE B Parts Diagram

  • Title

1

Homelite 314608004

Trimmer Head Assembly (Inc. Key Nos. 2-8)

Note: (Inc. Key Nos. 2-8)

$44.99

$

Usually ships in 0 days

0

2

Homelite 537189001

Bump Head

$14.99

$

In Stock, only 2 left!

0

3

Homelite 530455001

Bump Knob (Gray)

$3.99

$

In Stock, Qty 5

0

4

Homelite 530670001

Spool Assembly

$2.99

$

In Stock, Qty 5

0

5

Homelite 529803001

String Guide

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 679958001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 662568002

Hex Nut (M8, Left Hand Threads)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 314796001

Locking Assembly

$20.99

$

In Stock, only 2 left!

0

9

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

10

Homelite 308210018

Gear Head

$53.99

$

Usually ships in 3-7 days

0

11

Homelite 660736001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)
(Superseded to 983774003)

$2.49

$

In Stock, Qty 5

0

12

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

13

Homelite 311101002

Lower Boom Assembly

Note: (Inc. Key Nos. 9-12)

$76.99

$

In Stock, only 1 left!

0

14

Homelite 205012001

Fastener Parts Kit

$7.49

$

In Stock, only 1 left!

0

15

Homelite 518674001

Front Handle

$7.49

$

Usually ships in 3-7 days

0

16

Homelite 308741001

Front Handle Assembly

Note: (Inc. Key Nos. 14-15)

$12.99

$

In Stock, only 1 left!

0

17

Homelite 661848001

Set Screw (M5 x 10 mm, Hex Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 940657168

Icon Warning Label

$

$

Not available

19

Homelite 533909001

Throttle Trigger

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 310831007

Trigger Handle Assembly

Note: (Inc. Key Nos. 19 and 21)

$9.49

$

In Stock, only 1 left!

0

21

Homelite 660526003

Screw (M4 x 20 mm, T20 Torx Pan Hd. T.Fl.)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 570087005

Rubber Grip

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 307196007

Throttle Cable

$3.99

$

Usually ships in 3-7 days

0

24

Homelite 205039001

Boom Assembly

Note: (Inc. Key Nos. 17-23)

$41.99

$

In Stock, only 1 left!

0

25

Homelite 678029002

Hex Nut (M6.3 x 1)

$1.99

$

In Stock, Qty 6

0

26

Homelite 679974001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 660697002

Screw (M6 x 20 mm, T27 Torx Button Hd.)

$1.99

$

In Stock, only 1 left!

0

28

Homelite 660925011

Screw (M4 x 8 mm, T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, only 3 left!

0

29

Homelite 660738002

SCREW (#1/4-20 X 1-1/4 in. HEX WASHER HD.)
(Superseded to 983379078)

$

$

Not available

30

Homelite 308473004

Grass Deflector Assembly
(Superseded to 308473006)

Note: (Inc. Key No. 29)

$11.99

$

In Stock, only 1 left!

0
