UT-26SS EMC (090330020) - Homelite String Trimmer, 26cc, Rev 02 (2018-07) Figure C Parts Diagram

String Trimmer, 26cc, Rev 02

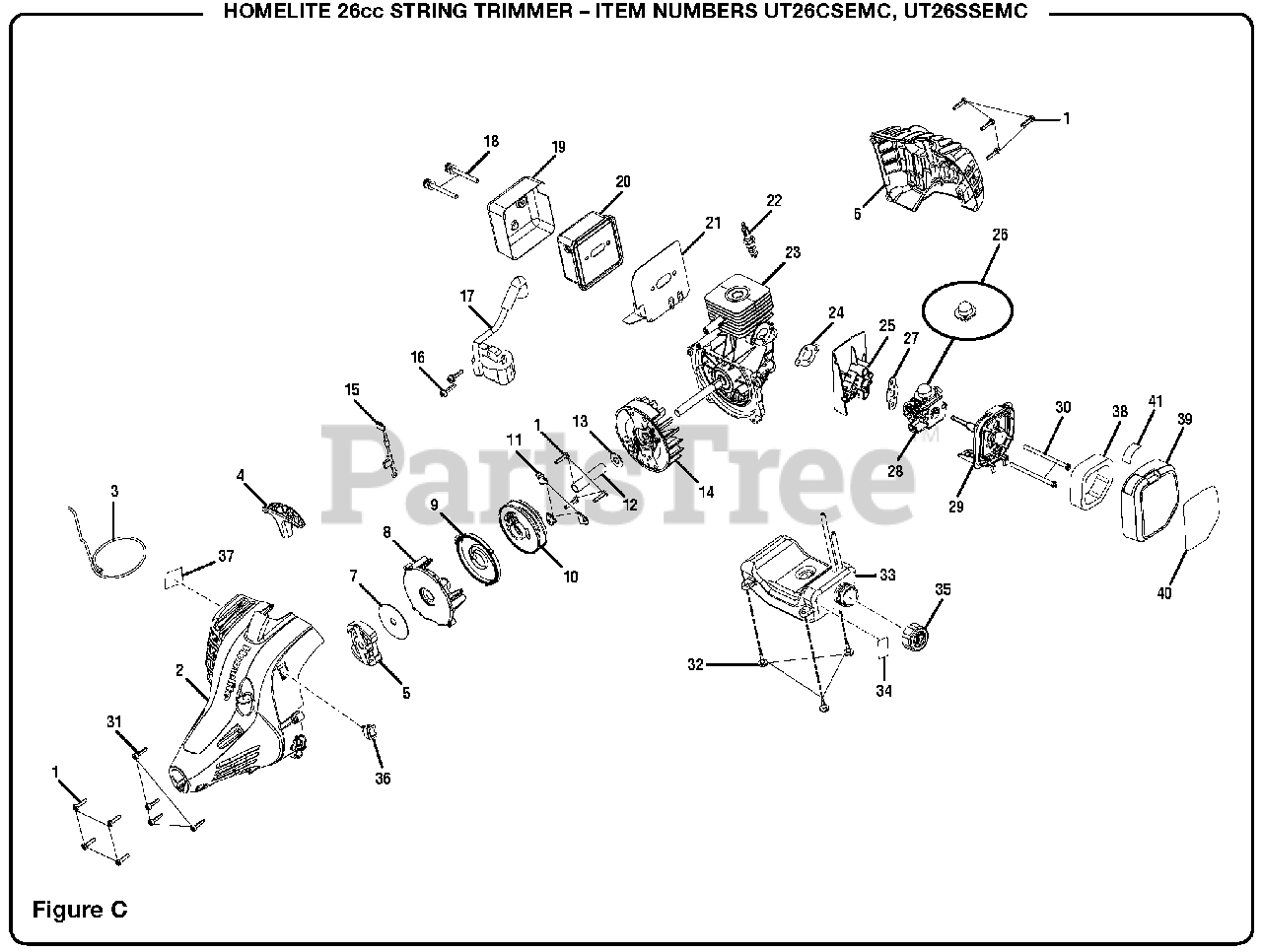

Figure C Parts Diagram

  • Title

1

Homelite 660563002

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

2

Homelite 205038001

Starter Housing Assembly

Note: (Inc. Key No. 37)

$41.99

$

Usually ships in 3-7 days

0

3

Homelite 900849012

Starter Rope (42 in.)

$1.99

$

In Stock, only 2 left!

0

4

Homelite 525485001

Pulley Handle

$1.99

$

In Stock, only 4 left!

0

5

Homelite 300960002

Clutch Assembly

$10.99

$

In Stock, only 1 left!

0

6

Homelite 519824002

Rear Housing

$3.99

$

Usually ships in 3-7 days

0

7

Homelite 638090001

Clutch Washer

$1.99

$

In Stock, only 4 left!

0

8

Homelite 518692001

Starter Housing

$2.49

$

In Stock, only 4 left!

0

9

Homelite 638033001

Spring & Container Assembly

$5.49

$

In Stock, only 2 left!

0

10

Homelite 310022004

Starter Pulley Assembly

$12.99

$

In Stock, only 1 left!

0

11

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

12

Homelite 638284006

Spacer

$1.99

$

In Stock, only 1 left!

0

13

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

14

Homelite 308811008

Flywheel Assembly

$25.99

$

In Stock, only 1 left!

0

15

Homelite 308863032

Lead Assembly

$

$

Not available

16

Homelite 660968001

Screw w/Washer (M4 x 19 mm, T20 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 850108032

Ignition Module

$40.99

$

Usually ships in 3-7 days

0

18

Homelite 660638003

Screw w/Washers (10-24 x 2-1/8 in., T25 Torx Truss Hd.)
(Superseded to PS03999)

$

$

Not available

19

Homelite 638442001

Heat Shield

$4.49

$

In Stock, only 1 left!

0

20

Homelite 308990016

Muffler Assembly

$28.99

$

Usually ships in 3-7 days

0

21

Homelite 901452011

Muffler Gasket

$2.49

$

In Stock, Qty 5

0

22

Homelite 870174001

Spark Plug (RCJ6Y)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$4.49

$

In Stock, Qty 20+

0

23

Homelite 308892038

Short Block Assembly

$

$

Not available

24

Homelite 901551001

Intake Gasket

$1.99

$

In Stock, only 3 left!

0

25

Homelite 518497006

Heat Dam Deflector

$8.99

$

Usually ships in 3-7 days

0

26

Primer Bulb (Kit AC20100)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$

$

Not available

27

Homelite 903034001

Carburetor Gasket

$1.99

$

In Stock, Qty 5

0

28

Homelite 309375009

Carburetor Assembly

$58.99

$

In Stock, only 1 left!

0

29

Homelite 525106001

Air Box Base

$5.49

$

In Stock, Qty 5

0

30

Homelite 660454007

Screw (M5 x 76 mm, T20 Torx Truss Hd.)

$1.99

$

In Stock, only 3 left!

0

31

Homelite 660970001

Screw w/Washer (M4 x 16 mm, T25 Torx Truss Hd.)

$1.99

$

In Stock, only 1 left!

0

32

Homelite 660970002

Shoulder Screw w/Washer (M4 x 14 mm, T25 Torx Truss Hd.)

$1.99

$

In Stock, only 1 left!

0

33

Homelite 205001003

Fuel Tank w/Label & Cap Assembly

Note: (Inc. Key Nos. 34-35)

$30.99

$

In Stock, only 1 left!

0

34

Homelite 941790001

Gas Tank Warning Label

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 310816018

Fuel Cap

$11.99

$

In Stock, only 1 left!

0

36

Homelite 760961002

Momentary Stop Switch

$3.99

$

Usually ships in 3-7 days

0

37

Homelite 940654088

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 560873001

Air Filter
(Superseded to 5687301)

$

$

Not available

39

Homelite 205040001

Air Box Cover

Note: (Inc. Key No. 40-41)

$7.99

$

In Stock, only 1 left!

0

40

Homelite 940734178

Starting Label

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 940216005

Choke Label

$1.99

$

Usually ships in 3-7 days

0
