UT-26204 - Green Machine Chainsaw, 33cc Engine Internal Parts Diagram

Chainsaw, 33cc

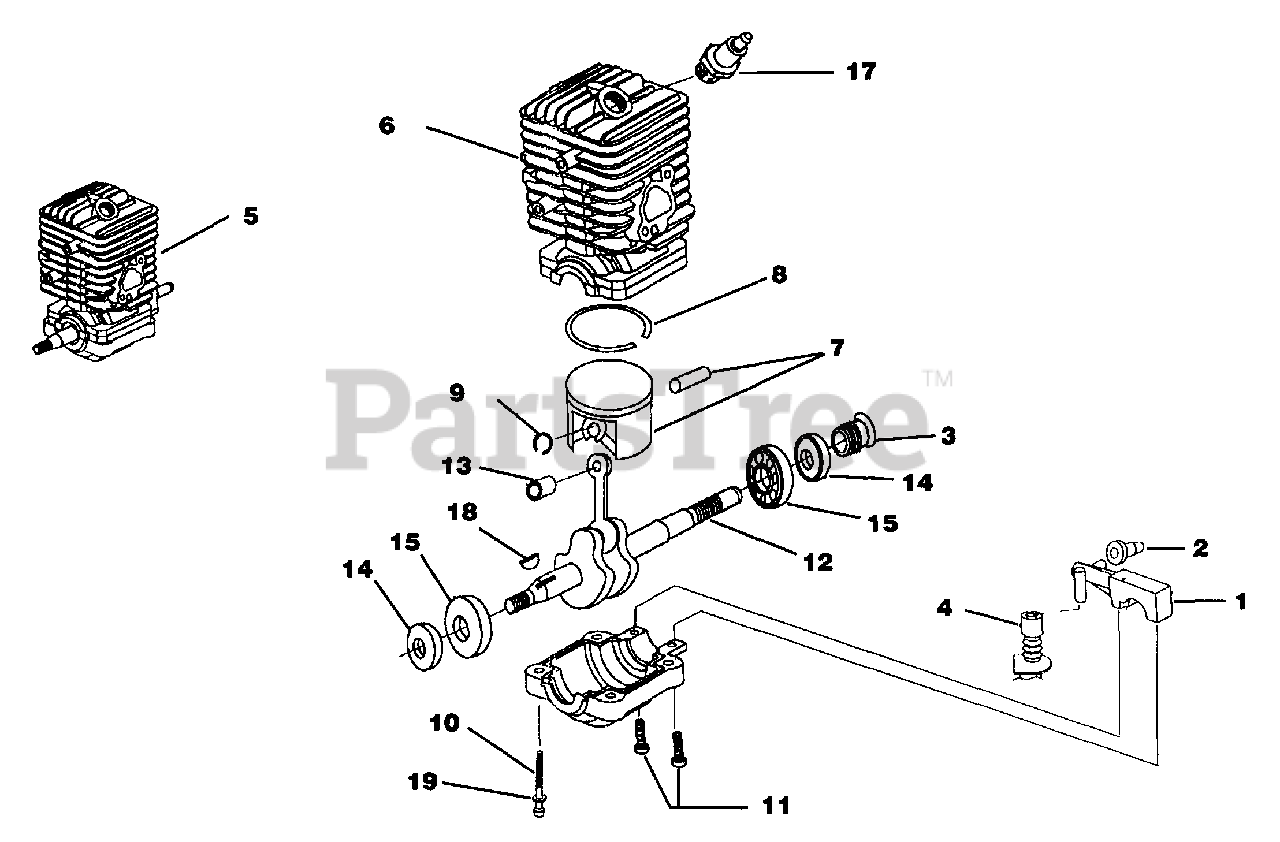

Engine Internal Parts Diagram

  • Title

1

Homelite A08682

Oil Pump Kit
(Superseded to UP06602)

$

$

Not available

2

Homelite 06841

Grommet, Oil Outlet
(Superseded to 570226001)

$1.99

$

In Stock, only 4 left!

0

3

Homelite 06847

Left Hand Worm
(Superseded to T610389001)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 06848

Tube, Oil Intake
(Superseded to UP04048)

$

$

Not available

Homelite A68593

Oil Filter

Note: (Not Shown)

$

$

Not available

5

Homelite A08671

Short Block, Complete
(Superseded to UP03696)

Note: (33cc)

$

$

Not available

Homelite A08672

Short Block, Complete
(Superseded to UP03853)

Note: (38cc)

$

$

Not available

6

Homelite A08666

Cylinder Kit
(Superseded to A08666A)

Note: (33cc)

$

$

Not available

Homelite A08667

Cylinder Kit
(Superseded to A08667A)

Note: (38cc)

$335.99

$

Usually ships in 3-7 days

0

Homelite 06839

Gasket, Muffler
(Superseded to 900848001)

Note: (Not Shown)

$2.49

$

In Stock, only 4 left!

0

Homelite 06840A

Gasket, Heat Dam

Note: (Not Shown)

$

$

Not available

Homelite 98339

Gasket, Carburetor
(Superseded to 900843001)

Note: (Not Shown)

$

$

Not available

7

Homelite A08668

Piston & Pin
(Superseded to UP06971)

Note: (33cc)

$

$

Not available

8

Homelite 04933

Piston Ring

$

$

Not available

9

Homelite 64813

Ring, Retaining

$4.99

$

Usually ships in 3-7 days

0

7

Homelite A08669

Piston & Pin
(Superseded to UP06972A)

Note: (38cc)

$

$

Not available

8

Homelite 06857

Piston Ring

$

$

Not available

9

Homelite 64813

Ring, Retaining

$4.99

$

Usually ships in 3-7 days

0

10

Homelite 82527

Screw, Cap-Socket Hd. (10-24 x 2")
(Superseded to 660622001)

Note: Torque Specs: 65-75 In/Lbs; 7.3-8.5 Nm

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 82546

Screw, Pan Hd. (8-16 x 5/8")
(Superseded to 660675001)

Note: Torque Specs: 15-20 In/Lbs; 1.7-2.3 Nm

$1.99

$

In Stock, only 1 left!

0

12

Homelite A08670

Crankshaft & Rod Assembly
(Superseded to UP03587)

$

$

Not available

13

Homelite 04921

Bearing, Needle
(Superseded to UP04174)

$

$

Not available

14

Homelite 04920

Shaft Seal
(Superseded to 570220001)

$

$

Not available

15

Homelite A04931

Bearing & Case
(Superseded to UP04176A)

$

$

Not available

16

Homelite 04919

Case
(Superseded to 570221001)

Note: (Not Shown)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 93561S

Spark Plug
(Superseded to D93561)

Note: Torque Specs: 120-180 In/Lbs; 1.7-2.3 Nm

$

$

Not available

18

Homelite 69250

Woodruff Key

$

$

Not available

19

Homelite 84008

Washer
(Superseded to 671080001)

$1.99

$

Usually ships in 3-7 days

0
