UT-26203 - Green Machine Chainsaw, 30cc Handles Parts Diagram

Chainsaw, 30cc

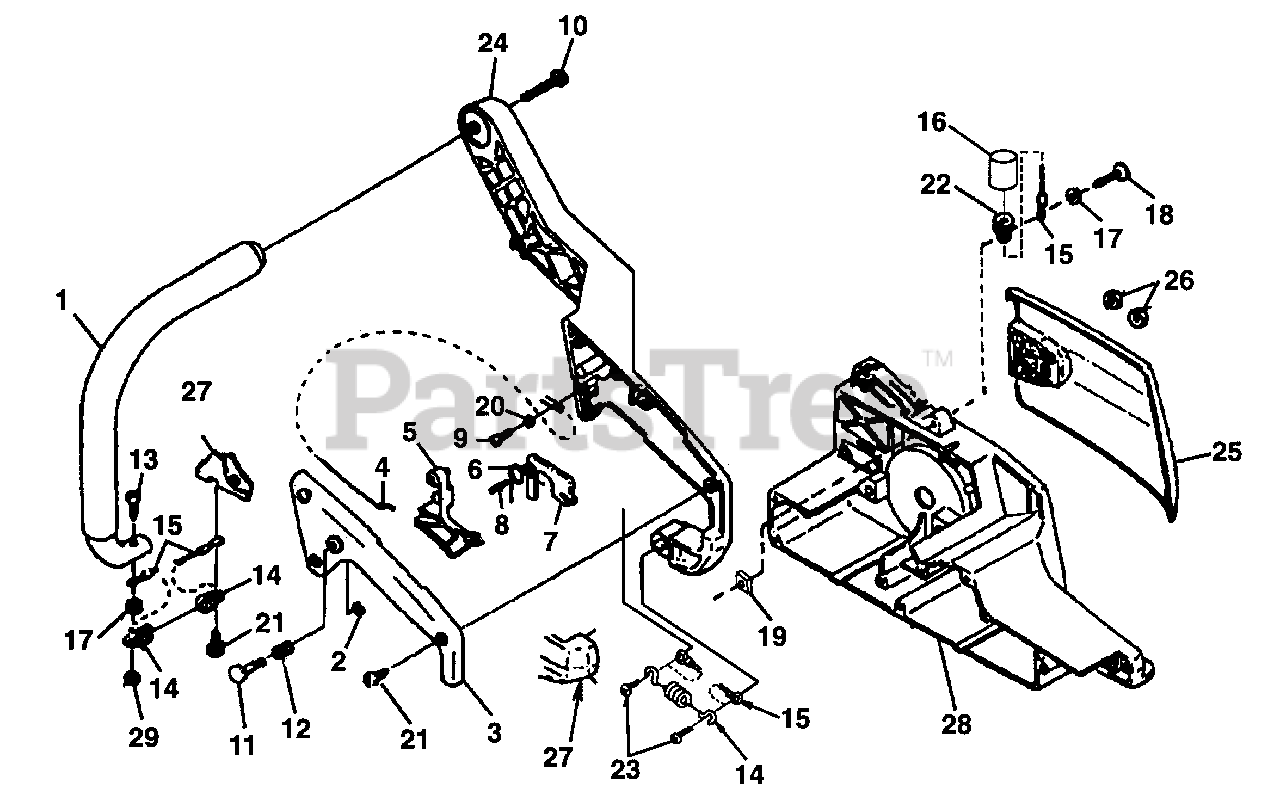

Handles Parts Diagram

  • Title

Homelite A07215

HANDLE KIT

$

$

Currently unavailable

1

Homelite A03496

HANDLE BAR
(Superseded to A07215)

$

$

Currently unavailable

2

Homelite 58409

RING, RETAINING

$4.49

$

Usually ships in 3-7 days

0

3

Homelite 00210C

COVER, REAR HANDLE

$

$

Not available

4

Homelite 00997D

CABLE, THROTTLE

$

$

Currently unavailable

5

Homelite A03806A

TRIGGER, THROTTLE

$

$

Currently unavailable

6

Homelite 02316

SPRING, THROTTLE

$

$

Not available

7

Homelite 93385A

LOCK, THROTTLE

$

$

Not available

8

Homelite 70253

PIN, DOWEL

$

$

Not available

9

Homelite 82513

SCREW, THREAD FORM (6-19 X 1/2")

Note: Torque Specs: 8-12 In/Lbs; .9-1.4 Nm

$2.49

$

In Stock, Qty 5

0

10

Homelite 80891

SCREW, HEX Hd (12-24 X 7/8")

Note: Torque Specs: 50-60 In/Lbs; 5.7-6.9 Nm

$

$

Not available

11

Homelite 95671

PIN, THROTTLE LOCK
(Superseded to UP05997)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 95020

SPRING, COMPRESSION
(Superseded to UP04716)

$2.49

$

Usually ships in 3-7 days

0

Homelite A07214

ISOLATOR KIT

$

$

Not available

13

Homelite 96620

SCREW, TORX (10-24 X 1/2")

Note: Torque Specs: 40-50 In/Lbs; 4.6-5.7 Nm

$4.99

$

Usually ships in 3-7 days

0

14

Homelite 01168

SPRING, EXTENSION

$11.99

$

Usually ships in 3-7 days

0

15

Homelite 03583

RETAINER, SPRING
(Superseded to UP07420)

$

$

Not available

16

Homelite 01813

SLEEVE, SPRING

$

$

Not available

17

Homelite 84008

WASHER, FLAT (#12)
(Superseded to 671080001)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 82562

SCREW, PAN Hd. (10-24 X 7/8")
(Superseded to UP06535)

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Not available

19

Homelite 70810

NUT, SQUARE (#10-24)
(Superseded to UP06986)

$

$

Not available

20

Homelite 84123

WASHER, FLAT

$

$

Not available

21

Homelite 82546

SCREW, THREAD FORM (8-16 X 5/8")
(Superseded to 660675001)

Note: Torque Specs: 20-40 In/Lbs; 2.3-4.6 Nm

$1.99

$

In Stock, only 1 left!

0

22

Homelite 02813

SPRING, EXTENSION
(Superseded to UP07388)

$10.99

$

Usually ships in 3-7 days

0

23

Homelite 82546

SCREW, THREAD FORM (8-16 X 1/2")
(Superseded to 660675001)

Note: Torque Specs: 20-40 In/Lbs; 2.3-4.6 Nm

$1.99

$

In Stock, only 1 left!

0

24

Homelite 07163

HANDLE, REAR

$

$

Not available

25

Homelite A002262

COVER, DRIVE CASE

$

$

Currently unavailable

26

Homelite 81196

NUT, HEX
(Superseded to 671076001)

$1.49

$

In Stock, only 2 left!

0

27

Homelite 017155

HSG., STARTER SIDE

$

$

Currently unavailable

28

Homelite A037201

ENG. HSG. DRIVE SIDE

$

$

Currently unavailable

29

Homelite 81261

NUT, HEX

Note: Torque Specs: 40-50 In/Lbs; 4.6-5.7 Nm

$

$

Not available
