UT-26203 - Green Machine Chainsaw, 30cc Fuel & Oil Tanks Parts Diagram

Chainsaw, 30cc

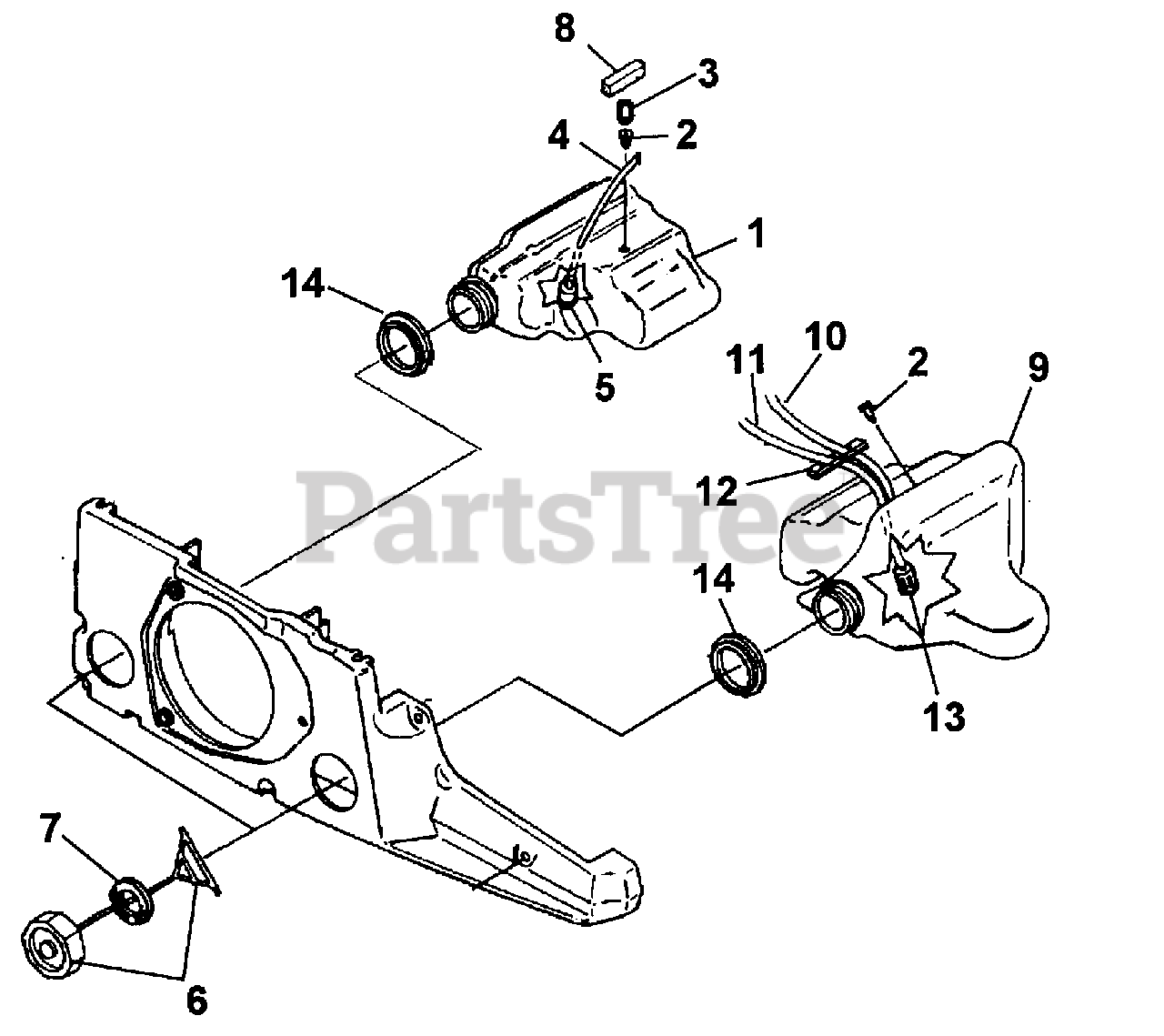

Fuel & Oil Tanks Parts Diagram

  • Title
1

Homelite A06636

OIL TANK ASSY.

$

$

Currently unavailable

2

Homelite 03134

VALVE-Check
(Superseded to 560955001)

$2.49

$

In Stock, Qty 9

0

3

Homelite 03585

PIN-Spirol

$

$

Not available

4

Homelite 7031029

TUBING-Rubber (7 1/4")

$

$

Not available

5

Homelite A68593

FILTER-Oil

$

$

Not available

6

Homelite A00904A

CAP-Tank
(Superseded to DA00904A)

Note: (w/Retainer)

$

$

Not available

7

Homelite 02762A

GASKET-Fuel Cap
(Superseded to UP07434)

$

$

Not available

8

Homelite 69443

FILTER-Oil Tank Valve

$

$

Not available

9

Homelite A06637

FUEL TANK ASSY.

$

$

Not available

2

Homelite 03134

VALVE-Check
(Superseded to 560955001)

$2.49

$

In Stock, Qty 9

0

6

Homelite A00904A

CAP-Tank
(Superseded to DA00904A)

Note: (w/Retainer)

$

$

Not available

7

Homelite 02762A

GASKET-Fuel Cap
(Superseded to UP07434)

$

$

Not available

10

Homelite 7031021

TUBING-Rubber (5 1/4")
(Superseded to 0745422)

$9.49

$

In Stock, only 1 left!

0

11

Homelite 7031036

TUBING-Rubber (9")
(Superseded to UP06561)

$

$

Not available

12

Homelite 02952

FILTER-Foam

$

$

Not available

13

Homelite 49422

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

14

Homelite 00993

SAWDUST SEAL

$

$

Not available
