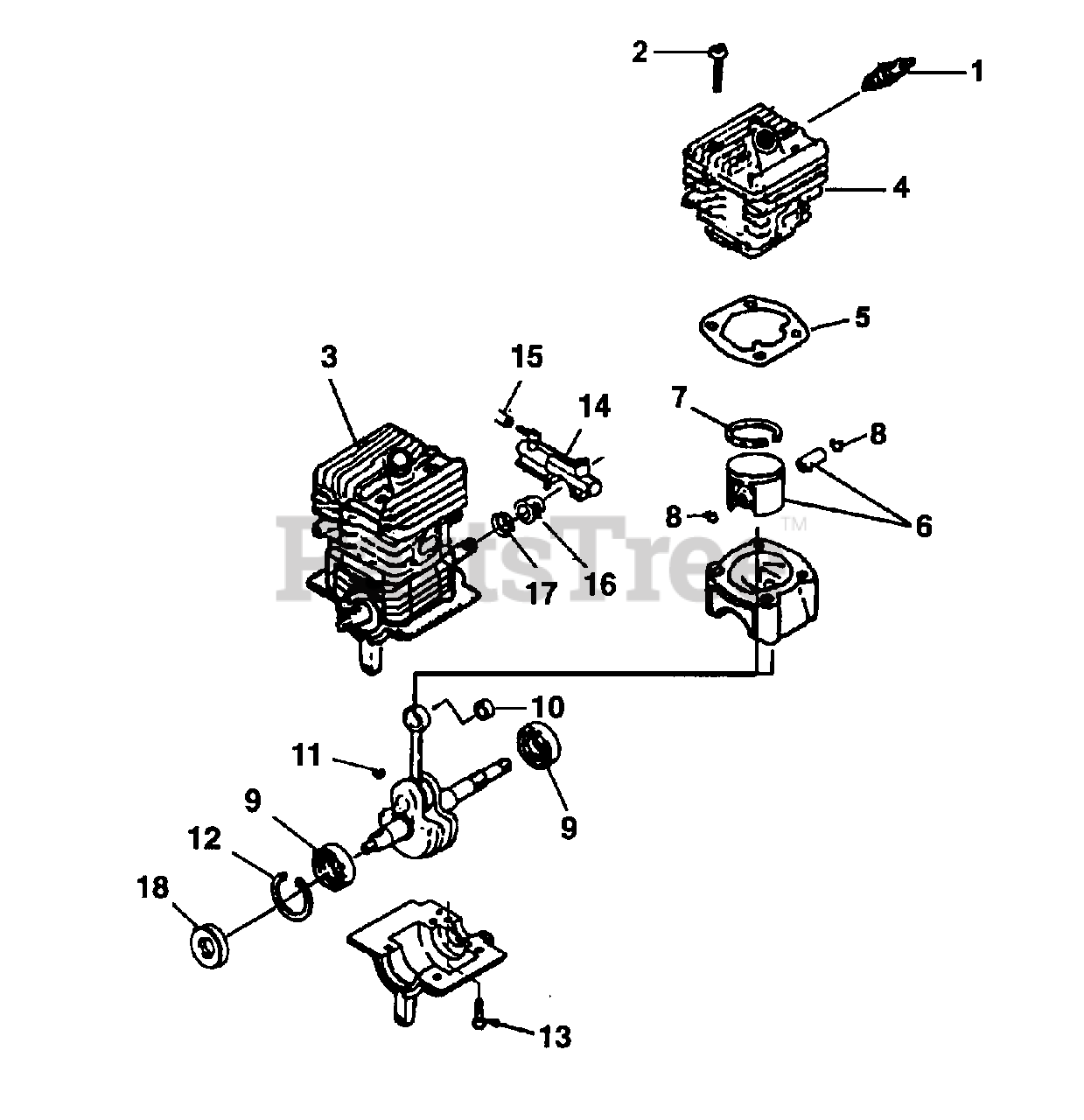

UT-26203 - Green Machine Chainsaw, 30cc Engine Internal Parts Diagram

Chainsaw, 30cc

Engine Internal Parts Diagram

  • Title

1

Homelite 93561S

SPARK PLUG (CJ6Y)
(Superseded to D93561)

Note: Torque Specs: 120-180 In/Lbs; 13.8-20.7 Nm

$

$

Not available

Homelite 98217S

SPARK PLUG (RCJ6Y) (Intl.)
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

2

Homelite 82568

SCREW-PAN Hd. (10-24 x .800)
(Superseded to UP06518)

Note: Torque Specs: 55-65 In/Lbs; 6.3-7.5 Nm

$

$

Not available

3

Homelite A01544D

SHORT BLOCK

$

$

Not available

4

Homelite A04513

CYLINDER & GASKET

$

$

Not available

5

Homelite 02527

GASKET, CYLINDER

$

$

Not available

6

Homelite A03301A

PISTON & PIN
(Superseded to UP07211)

$

$

Not available

7

Homelite 02263A

RING, PISTON
(Superseded to UP07238)

$

$

Not available

8

Homelite 64813

RING, WRIST PIN, RETAINING

$4.99

$

Usually ships in 3-7 days

0

9

Homelite 98797

BEARING, BALL

$

$

Not available

10

Homelite 70277

BEARING, NEEDLE
(Superseded to UP05641)

$12.99

$

Usually ships in 3-7 days

0

11

Homelite 75078

WOODRUFF KEY
(Superseded to UP07068)

$

$

Not available

12

Homelite 289221

RETAINING RING

$

$

Not available

13

Homelite 82146

SCREW, FIL HD. (8-32 x 5/8")
(Superseded to UP03887)

Note: Torque Specs: 15-20 In/Lbs; 1.7-2.3 Nm

$1.49

$

Usually ships in 3-7 days

0

14

Homelite A02802A

OIL PUMP
(Superseded to UP06621)

$81.99

$

Usually ships in 3-7 days

0

15

Homelite 02548

TUBING, OIL

Note: (TO GUIDE BAR)

$

$

Not available

16

Homelite 00229

WORM GEAR, LEFT HAND

$

$

Not available

17

Homelite 93858

SEAL, CRANKSHAFT
(Superseded to UP07439)

$

$

Not available

18

Homelite 98197A

SEAL, SHAFT
(Superseded to UP06470)

$

$

Not available
