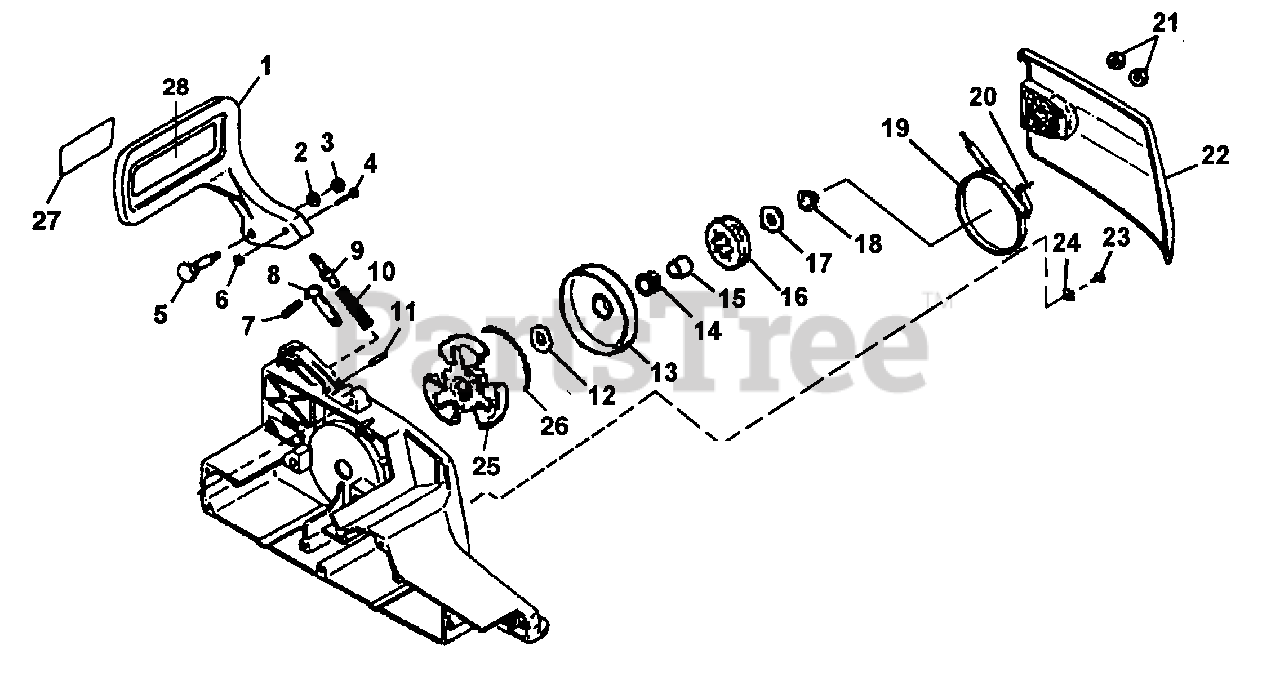

UT-26203 - Green Machine Chainsaw, 30cc Clutch & Chain Brake Parts Diagram

Chainsaw, 30cc

Clutch & Chain Brake Parts Diagram

  • Title

1

Homelite A03306B

GUARD, HAND

$

$

Not available

2

Homelite 83203

WASHER, BELLVILLE

$

$

Not available

3

Homelite 98457

NUT - (M5)

Note: Torque Specs: 30-50 In/Lbs; 3.5-5.7 Nm

$

$

Not available

4

Homelite 98422A

PIN

$

$

Currently unavailable

5

Homelite 98461

SCREW, SHOULDER

Note: Torque Specs: 30-50 In/Lbs; 3.5-5.7 Nm

$

$

Not available

6

Homelite 01820

RING, RETAINER

$

$

Not available

7

Homelite 98308

SPRING, COIL
(Superseded to 984679001)

$

$

Not available

8

Homelite A98317A

BRAKE LATCH ASSY.

$

$

Not available

9

Homelite A00888A

ADJUSTER, BRAKE

$

$

Currently unavailable

10

Homelite 008901

SPRING, COMPRESSION

$

$

Currently unavailable

11

Homelite 98456

PIN

$

$

Not available

12

Homelite 58833

WASHER, THRUST (INNER)

$

$

Not available

13

Homelite A02990

SPLINE & DRUM

$

$

Not available

14

Homelite 02999

BEARING, NEEDLE
(Superseded to UP07431)

$

$

Not available

15

Homelite 03039

RACE, INNER
(Superseded to UP07419)

$

$

Not available

16

Homelite 07341

SPROCKET, RIM (.325 X 77)

$

$

Not available

17

Homelite 65027

WASHER, THRUST

$

$

Not available

18

Homelite 81255

NUT, HEX LOCK (3/8"-24)

Note: Torque Specs: 60-80 In/Lbs; 6.2-9.2 Nm

$

$

Not available

19

Homelite A98298B

BRAKE BAND ASSY

$

$

Currently unavailable

20

Homelite 06672

PIN, DOWEL
(Superseded to 671095001)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 81196

NUT, HEX
(Superseded to 671076001)

$1.49

$

In Stock, only 2 left!

0

22

Homelite A066391

DRIVE CASE COVER CASE

$

$

Currently unavailable

23

Homelite 82513

SCREW, THREAD FORM (#6)

Note: Torque Specs: 12-18 In/Lbs; 1.4-2.1 Nm

$2.49

$

In Stock, Qty 5

0

24

Homelite 01180

RETAINER, BRAKE BAND

$

$

Not available

25

Homelite A00995

CLUTCH ASSY
(Superseded to UP06869)

Note: Torque Specs: 150-200 In/Lbs; 17.2-23.0 Nm

$

$

Not available

26

Homelite 98453

SPRING, CLUTCH
(Superseded to UP07449)

$

$

Not available

27

Homelite 08013A

LABEL, KICKBACK

$

$

Currently unavailable

28

Homelite 02661

DECAL, SAFETY

$

$

Not available
