UT-26202 - Green Machine Chainsaw, 20cc Engine Housing Parts Diagram

Chainsaw, 20cc

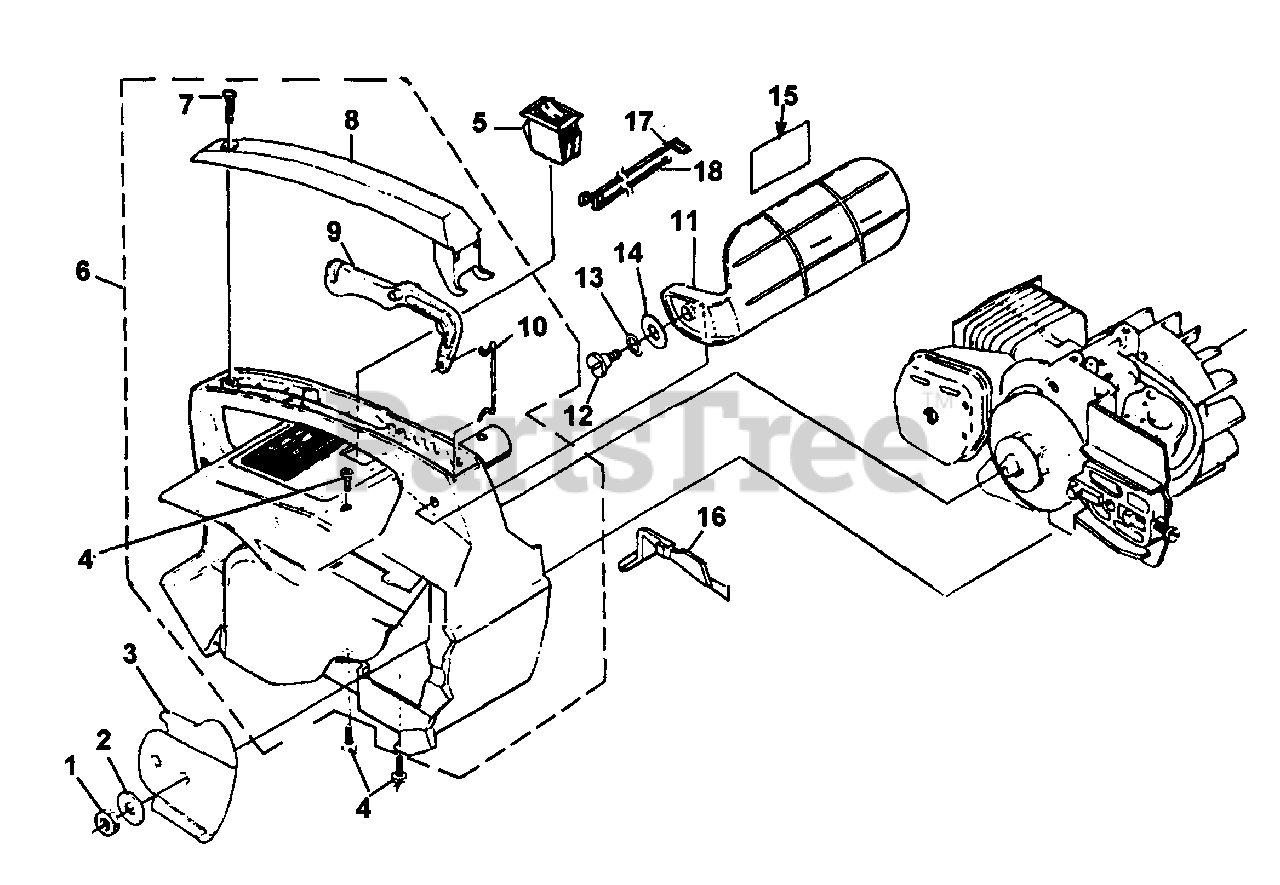

Engine Housing Parts Diagram

  • Title

1

Homelite 810652

NUT, GUIDE BAR
(Superseded to UP03514)

Note: (Torque Specs: Hand Tight)

$5.49

$

In Stock, only 1 left!

0

2

Homelite 69309A

WASHER, FLAT

$

$

Not available

3

Homelite 04440

PLATE, GUIDE BAR

$9.99

$

Usually ships in 3-7 days

0

4

Homelite 82538

SCREW, PAN HEAD (10-24 x 3/4")

Note: (Torque Specs: 55-65 In/Lbs, 6.4-7.5 Nm)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 02497

SWITCH, ROCKER
(Superseded to 985703001)

$

$

Not available

6

Homelite A075511

HOUSING ASSY. ENGINE

$

$

Currently unavailable

7

Homelite 82312

SCREW, PAN HEAD (#10 x 5/8")

Note: (Torque Specs: 15-20 In/Lbs, 1.7-2.3 Nm)

$

$

Not available

8

Homelite 69872A

COVER, HANDLE

$

$

Currently unavailable

9

Homelite 69874D

TRIGGER

$

$

Currently unavailable

10

Homelite 00138

ROD, THROTTLE

$

$

Not available

11

Homelite A70796C

HAND GUARD ASSY.
(Superseded to UP06581)

$

$

Currently unavailable

12

Homelite 95714

SCREW, SHOULDER (#10 x .560)
(Superseded to UP06845)

Note: (Torque Specs: 40-50 In/Lbs, 4.6-5.7 Nm)

$5.99

$

Usually ships in 3-7 days

0

13

Homelite 95694

WASHER, CURVED SPRING

$

$

Not available

14

Homelite 96102

WASHER, FLAT

$

$

Not available

15

Homelite 02661

DECAL, HAND GUARD

$

$

Not available

16

Homelite 69263

COVER, AIR FILTER

$

$

Not available

17

Homelite A02482

LEAD, WIRE
(Superseded to UP07635)

$4.99

$

Usually ships in 3-7 days

0

18

Homelite A02484

LEAD, WIRE

$

$

Not available
