UT-26202 - Green Machine Chainsaw, 20cc Clutch Parts Diagram

Chainsaw, 20cc

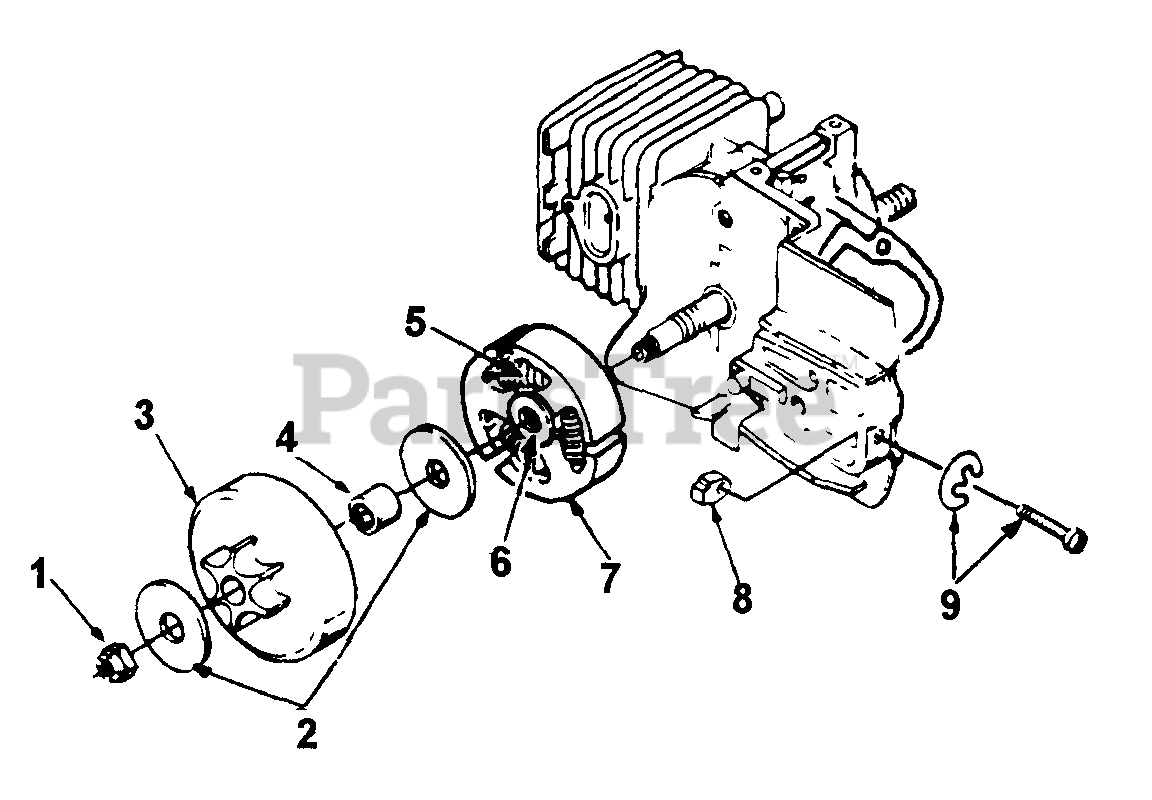

Clutch Parts Diagram

  • Title

1

Homelite 81229A

NUT, (5/16 -24)

Note: (Torque Specs: 100-150 In/Lbs, 11.5-17.3 Nm)

$4.99

$

Usually ships in 3-7 days

0

2

Homelite 95299

WASHER, THRUST

$

$

Not available

3

Homelite A95653E

SPROCKET & DRUM

$

$

Not available

4

Homelite 70277

BEARING
(Superseded to UP05641)

$12.99

$

Usually ships in 3-7 days

0

5

Homelite 03961

SPRING, CLUTCH

$

$

Not available

6

Homelite 79221A

SPIDER, CLUTCH
(Superseded to 79221)

$30.99

$

Usually ships in 3-7 days

0

7

Homelite 79222A

SHOE, CLUTCH

$

$

Currently unavailable

8

Homelite 692542

PIN, ADJUSTING

$26.99

$

In Stock, only 1 left!

0

9

Homelite A00440

SCREW & E-RING KIT

$

$

Not available
