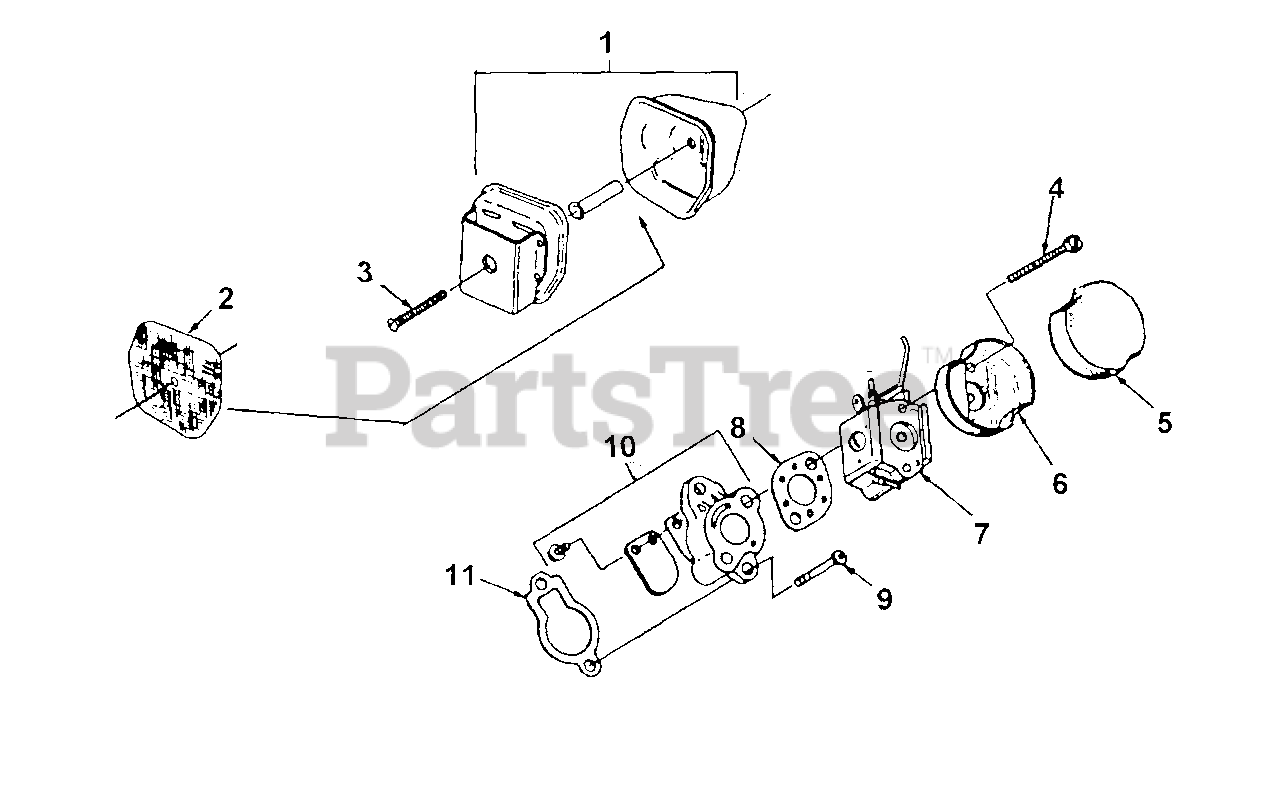

UT-26202 - Green Machine Chainsaw, 20cc Carburetor & Muffler Parts Diagram

Chainsaw, 20cc

Carburetor & Muffler Parts Diagram

  • Title

1

Homelite A06374

MUFFLER ASSY.

$

$

Currently unavailable

2

Homelite 93991A

SCREEN, SPARK ARRESTOR
(Superseded to A00072)

$

$

Currently unavailable

3

Homelite 93460

SCREW, SEMS (10-24 x 1 7/8")

Note: (Torque Specs: 50-60 In/Lbs, 5.7-6.9 Nm)

$

$

Not available

4

Homelite 00167

SCREW, SELF TAPPING (#8 x 1.65")

Note: (Torque Specs: 35-45 In/Lbs, 4.0-5.2 Nm)

$

$

Not available

5

Homelite DG02500

FILTER, AIR

$

$

Not available

6

Homelite 69148

CUP, FILTER

$

$

Not available

7

Homelite UP00750

CARBURETOR ASSY.

$

$

Not available

8

Homelite 02488

GASKET, CARBURETOR
(Superseded to UP05880)

$4.99

$

Usually ships in 3-7 days

0

9

Homelite 82537

SCREW, SELF TAPPING (10-24 x 7/8")

Note: (Torque Specs: 65-75 In/Lbs, 7.5-8.6 Nm)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite A02153

HEAT DAM & REED

$

$

Not available

11

Homelite 02453

GASKET, HEAT DAM

$5.49

$

Usually ships in 3-7 days

0
