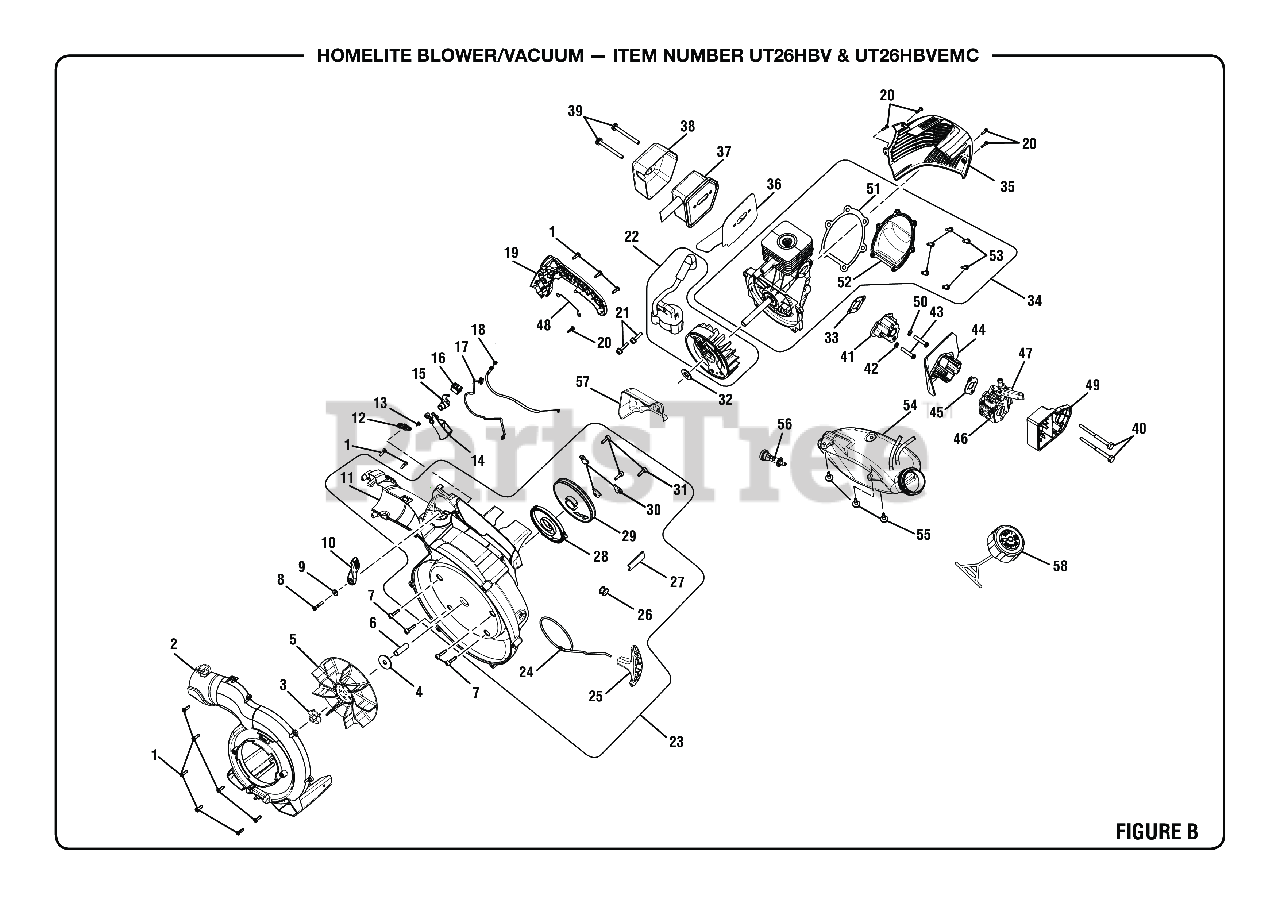

UT-26 HBV (090155050) - Homelite Blower Vacuum, Revision 01 (2019-03) FIGURE B Parts Diagram

Blower Vacuum, Revision 01

FIGURE B Parts Diagram

  • Title

1

Homelite 660629002

Screw (#10-14 x 3/4 in, T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, only 4 left!

0

2

Homelite 351258001

Outer Volute w/Labels

$41.99

$

Usually ships in 3-7 days

0

3

Homelite 660561007

Lock Nut (3/8 in.)

$2.49

$

In Stock, only 4 left!

0

4

Homelite 678126005

Washer (ID9.8 x OD30 x 3t)

$1.99

$

In Stock, only 4 left!

0

5

Homelite 518265003

Fan

$11.99

$

Usually ships in 3-7 days

0

6

Homelite 638517001

Spacer

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 660970001

Screw w/Washer (M4 x 16 mm, T25 Torx Truss Hd.)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 660666001

Cruise Lever Screw (M8-14 x 25 mm, Special T20 Truss Hd.)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 678125001

Washer (ID 4.3 x OD12 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 518160007

Cruise Control Lever

$1.99

$

In Stock, only 3 left!

0

11

Homelite 351259002

Inner Volute w/Eyelet w/Label

$

$

Not available

12

Homelite 518603002

Throttle Lever

$

$

Not available

13

Homelite 661141001

Screw (M3.5 x 7.5 mm, T20 Torx Pan Hd.)

$

$

Not available

14

Homelite 521503002

Throttle Trigger

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 518602001

Trigger Lock

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 760961002

Stop Switch (Momentary Contact)

$3.99

$

Usually ships in 3-7 days

0

17

Homelite 290157002

Wire Assembly (UT26HBV)

$2.99

$

In Stock, only 1 left!

0

Homelite 290157006

Wire Assembly (UT26HBVEMC)

$5.99

$

Usually ships in 3-7 days

0

18

Homelite 270031002

Throttle Cable

$

$

Not available

19

Homelite 521501003

Handle Cover

$8.49

$

Usually ships in 3-7 days

0

20

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 6

0

21

Homelite 660968001

Screw w/Washer (M4 x 19 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 311020006

Ignition Module and Flywheel Kit (UT26HBV)

$50.99

$

Usually ships in 3-7 days

0

Homelite 311020013

Ignition Module and Flywheel Kit (UT26HBVEMC)

$47.99

$

Usually ships in 3-7 days

0

23

Homelite 312875001

Lower Housing w/Starter and Label

$91.99

$

Usually ships in 3-7 days

0

24

Homelite 900849012

Starter Rope (42 in.)

$1.99

$

In Stock, only 2 left!

0

25

Homelite 525485001

Pulley Handle

$1.99

$

In Stock, only 4 left!

0

26

Homelite 638088004

Eyelet

$1.99

$

In Stock, only 3 left!

0

27

Homelite 521535013

Shield

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 638033001

Spring & Container Assembly

$5.49

$

In Stock, only 2 left!

0

29

Homelite 521316001

Starter Pulley

$4.99

$

In Stock, only 1 left!

0

30

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

31

Homelite 660967001

Screw (M4 x 14 mm, T20 Torx Truss Hd T.F.)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 650017002

Washer (ID9.70 x OD20 x 1.59t)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 901551003

Intake Gasket

$1.99

$

In Stock, only 3 left!

0

34

Homelite 308892033

Short Block Assembly

Note: (Incl. Key Nos. 51-53)

$140.99

$

Usually ships in 3-7 days

0

35

Homelite 312758001

Engine Cover w/Labels

$3.99

$

Usually ships in 3-7 days

0

36

Homelite 901362003

Muffler Gasket

$2.99

$

In Stock, only 4 left!

0

37

Homelite 309327009

Muffler Assembly

$61.99

$

Usually ships in 3-7 days

0

38

Homelite 638442009

Muffler Heat Shield

$5.49

$

In Stock, only 2 left!

0

39

Homelite 660638003

Screw w/Washers (10-24 x 2-1/8 in., T25 Torx Truss Hd.)
(Superseded to PS03999)

$

$

Not available

40

Homelite 660454006

Bolt (M5 x 48 mm, T20 Torx hd.)

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 518920004

Heat Dam

$

$

Not available

42

Homelite 638659002

Washer (ID5 x OD10.9 x 0.5t)

$1.99

$

In Stock, only 2 left!

0

43

Homelite 660927003

Screw (M5 x 25 mm, T20 Torx Hd.)

$1.99

$

In Stock, Qty 10

0

44

Homelite 521505001

Baffle

$1.49

$

In Stock, only 1 left!

0

45

Homelite 901552006

Heat Dam Gasket

$1.99

$

In Stock, only 2 left!

0

46

Homelite 308054111

Carburetor
(Superseded to 308054034)

$

$

Not available

47

Homelite 561635001

Primer Bulb (Ruixing)

$8.49

$

In Stock, only 2 left!

0

48

Homelite 290469001

Ground Wire Assembly

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 521309006

Air Box Base

$4.49

$

Usually ships in 3-7 days

0

50

Homelite 638911001

Washer

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 901550003

Crankcase Cover Gasket

$1.99

$

In Stock, only 4 left!

0

52

Homelite 638337005

Crankcase Cover

$6.49

$

Usually ships in 3-7 days

0

53

Homelite 660925003

Screw (M4 x 12 mm, T20 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 310753016

Fuel Tank Assembly (Inc. Fuel Lines)

$22.99

$

Usually ships in 3-7 days

0

55

Homelite 660970002

Shoulder Screw w/Washer (M4 x 14 mm, T25 Torx Truss Hd.)

$1.99

$

In Stock, only 1 left!

0

56

Homelite 310976001

Fuel Filter

$

$

Not available

57

Homelite 521535010

Baffle Plate

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 310816015

Fuel Cap Assembly (Inc. Tether)

$13.99

$

In Stock, only 1 left!
