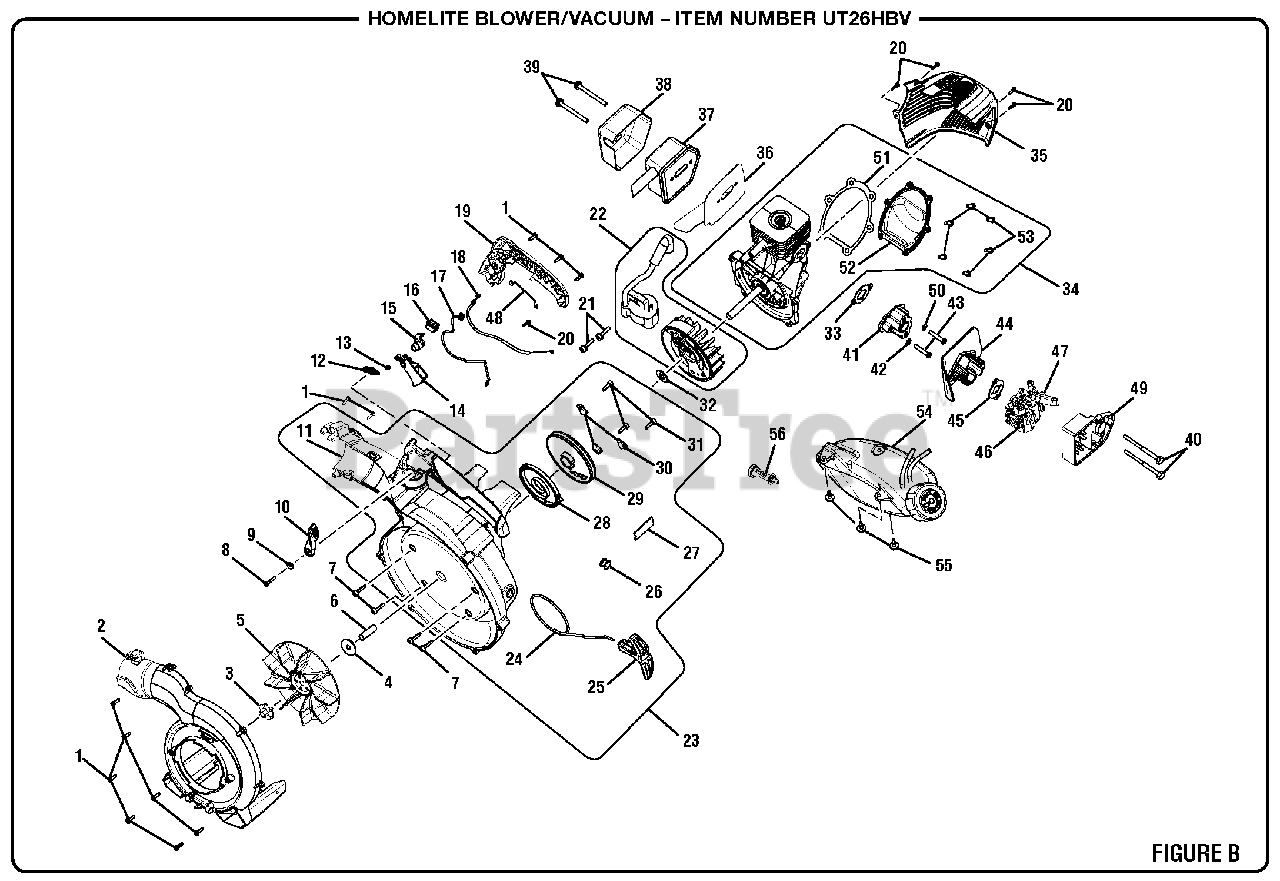

UT-26 HBV (090155040) - Homelite Blower Vacuum, Revision 02 (2016-09) Figure B Parts Diagram

Blower Vacuum, Revision 02

Figure B Parts Diagram

  • Title
1

Homelite 660629002

Screw (10-14 x 3/4 in.)

$1.99

$

In Stock, only 4 left!

0

2

Homelite 351258001

Outer Volute w/Label

$41.99

$

Usually ships in 3-7 days

0

3

Homelite 660561007

Blower Fan Nut

$2.49

$

In Stock, only 4 left!

0

$1.99

$

In Stock, only 4 left!

0

$11.99

$

Usually ships in 3-7 days

0

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 660970001

Screw (M4 x 17 mm, T.F.)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 660666001

Screw (8-14 x 1 in., T.F.)

$1.99

$

Usually ships in 3-7 days

0

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 518160007

Cruise Control Lever

$1.99

$

In Stock, only 3 left!

0

11

Homelite 351259001

Inner Volute w/Eyelet w/Label

$

$

Not available

12

Homelite 518603002

Throttle Lever

$

$

Not available

13

Homelite 661141001

Screw (M3.5 x 7.5 mm)

$

$

Not available

14

Homelite 521503002

Throttle Trigger

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 518602001

Trigger Lock

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 760961002

Momentary Contact Switch

$3.99

$

Usually ships in 3-7 days

0

17

Homelite 290157002

Wire Assembly

$2.99

$

In Stock, only 1 left!

0

18

Homelite 270031002

Throttle Cable

$

$

Not available

19

Homelite 521501003

Handle Cover

$8.49

$

Usually ships in 3-7 days

0

20

Homelite 660466001

Screw (M4 x 18 mm)

$1.99

$

In Stock, Qty 6

0

21

Homelite 660968001

Screw (M4 x 19 mm, T.F.)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 311020006

Ignition Module and Flywheel Kit

$50.99

$

Usually ships in 3-7 days

0

23

Homelite 308563025

Lower Housing w/Starter

Note: (Incl. Key Nos. 24-31)

$

$

Not available

24

Homelite 900849012

Starter Rope (42 in.)

$1.99

$

In Stock, only 2 left!

0

25

Homelite 525485001

Starter Grip

$1.99

$

In Stock, only 4 left!

0

26

$1.99

$

In Stock, only 3 left!

0

27

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 638033001

Spring & Container

$5.49

$

In Stock, only 2 left!

0

29

Homelite 521316001

Starter Pulley

$4.99

$

In Stock, only 1 left!

0

30

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

31

Homelite 660967001

Screw (M4 x 14 mm, T.F.)

$1.99

$

Usually ships in 3-7 days

0

32

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 901551003

Intake Gasket

$1.99

$

In Stock, only 3 left!

0

34

Homelite 308892033

Short Block Assembly

Note: (Incl. Key Nos. 51-53)

$140.99

$

Usually ships in 3-7 days

0

35

Homelite 521311001

Engine Cover

$

$

Not available

36

Homelite 901362003

Muffler Gasket

$2.99

$

In Stock, only 4 left!

0

37

Homelite 309327009

Muffler Assembly

$61.99

$

Usually ships in 3-7 days

0

38

Homelite 638442009

Muffler Heat Shield

$5.49

$

In Stock, only 2 left!

0

39

Homelite 660638003

Screw (10-24 x 2-1/8 in.)
(Superseded to PS03999)

$

$

Not available

40

Homelite 660454006

Screw (M5 x 48 mm)

$2.49

$

Usually ships in 3-7 days

0

41

$

$

Not available

42

$1.99

$

In Stock, only 2 left!

0

43

Homelite 660927003

Screw (M5 x 25 mm)

$1.99

$

In Stock, Qty 10

0

44

$1.49

$

In Stock, only 1 left!

0

45

Homelite 901552006

Heat Dam Gasket

$1.99

$

In Stock, only 2 left!

0

46

Homelite 308054117

Carburetor
(Superseded to 308054034)

$

$

Not available

47

Homelite 561635001

Primer Bulb

$8.49

$

In Stock, only 2 left!

0

48

Homelite 290469001

Ground Wire Kit

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 521309006

Air Box Base

$4.49

$

Usually ships in 3-7 days

0

50

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 901550003

Crankcase Cover Gasket

$1.99

$

In Stock, only 4 left!

0

52

Homelite 638337005

Crankcase Cover

$6.49

$

Usually ships in 3-7 days

0

53

Homelite 660925003

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 310752028

Fuel Tank Assembly w/Cap

$32.99

$

Usually ships in 3-7 days

0

55

Homelite 660970002

Screw (M4 x 14 mm, Shoulder)

$1.99

$

In Stock, only 1 left!

0

56

Homelite 310976001

Fuel Filter

$

$

Not available
