UT-21947 - Homelite Mightylite String Trimmer Figure B Parts Diagram

Mightylite String Trimmer

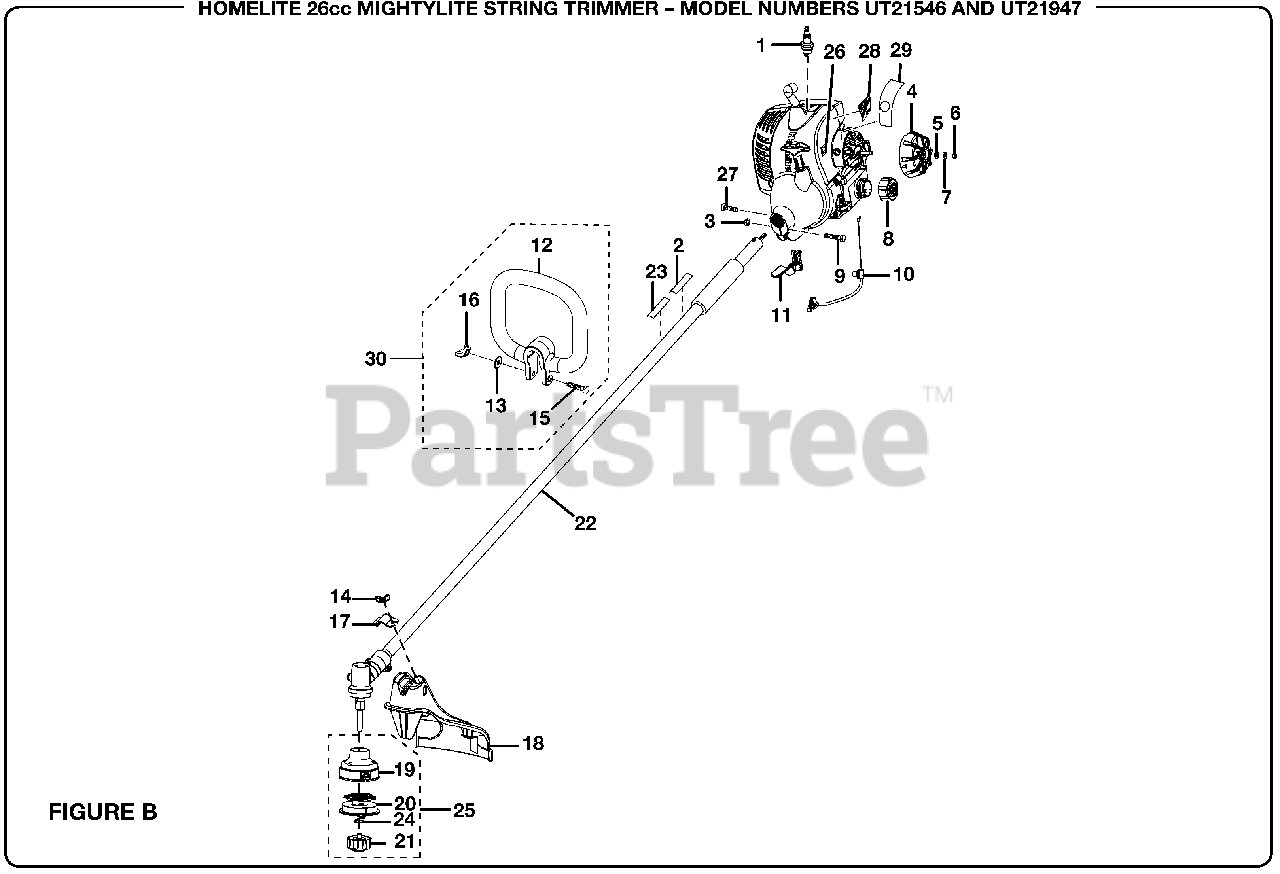

Figure B Parts Diagram

  • Title

1

Homelite 870174001

Spark Plug

Note: (Champion RCJ6Y); Purchase locally

$4.99

$

In Stock, Qty 20+

0

2

Homelite 940734008

Starting Label

$

$

Not available

3

Homelite 678029002

Hex Nut (M6)

Note: Purchase locally

$1.99

$

In Stock, Qty 6

0

4

Homelite 518496001

Choke Dial Cover

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 678434001

Flat Washer

$

$

Not available

6

Homelite 678435001

Hex Nut (M4)

Note: Purchase locally

$

$

Not available

7

Homelite 678434002

Wavy Washer

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 308680001

Fuel Cap

$

$

Not available

9

Homelite 660697002

Bolt (M6 x 20 mm)

Note: Purchase locally

$1.99

$

In Stock, only 1 left!

0

10

Homelite 270032001

Throttle Cable

$3.49

$

In Stock, only 1 left!

0

11

Homelite 518529001

Throttle Trigger

$

$

Not available

12

Homelite 518674001

Handle

$7.49

$

Usually ships in 3-7 days

0

13

Homelite 678008001

Flat Washer

Note: Purchase locally

$1.99

$

In Stock, only 1 left!

0

14

Homelite 678034001

Wing Nut (1/4-20)

$1.99

$

In Stock, Qty 7

0

15

Homelite 660643008

Bolt (1/4-20 x 40 mm)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 678246001

Wing Nut (1/4-20)
(Superseded to PS02453)

Note: Purchase locally

$2.49

$

In Stock, only 1 left!

0

17

Homelite 678436001

Mounting Bracket

$1.49

$

In Stock, only 2 left!

0

18

Homelite 308781001

Straight Shaft Grass Deflector

Note: Incl. Key Nos. 14 and 17

$

$

Not available

19

Homelite 308746002

Large String Head Housing
(Superseded to 099068001005)

$

$

Not available

20

Homelite 308044007

Dual Line Spool and String

$4.49

$

Usually ships in 3-7 days

0

21

Homelite 308042003

Spool Retainer

$7.49

$

In Stock, Qty 5

0

22

Homelite 000998358

Boom Assembly

$

$

Not available

23

Homelite 940642020

Warning Label

$

$

Not available

24

Homelite 678022001

Spring
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

25

Homelite 120152001

String Head Assembly
(Superseded to 000998361)

$103.99

$

In Stock, only 1 left!

0

26

Homelite 760700002

Switch
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

27

Homelite 660634001

Screw (8-16 x 5/16 in.)

Note: Purchase locally

$1.99

$

In Stock, Qty 20+

0

28

Homelite 940642026

Logo Label

$

$

Not available

29

Homelite 940647008

Choke Label

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 308741001

Handle Assembly

Note: Inc. Key Nos. 12, 13, 15, and 16

$12.99

$

In Stock, only 1 left!

0
