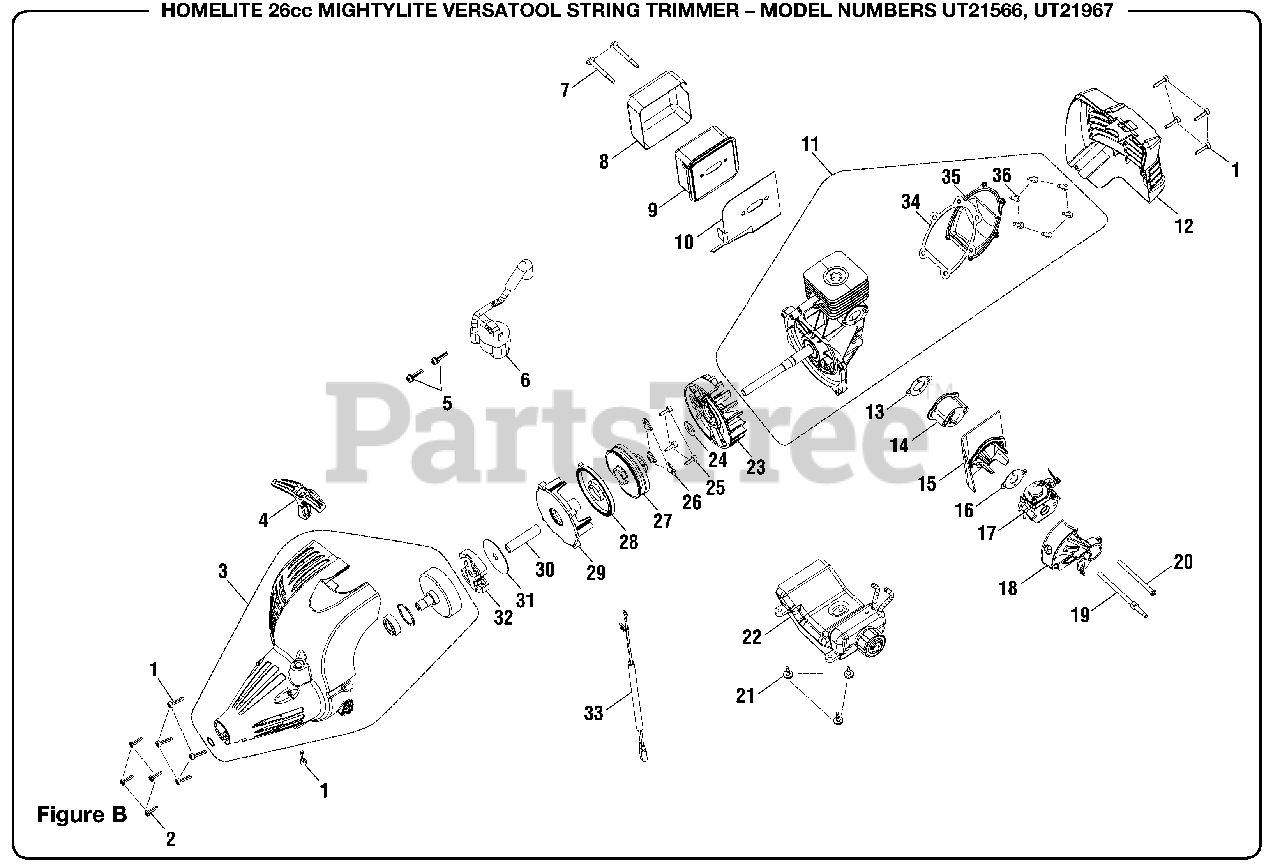

UT-21566 - Homelite Mightylite Versatool String Trimmer Figure B Parts Diagram

Mightylite Versatool String Trimmer

Figure B Parts Diagram

  • Title

1

Homelite 660466001

Screw (M4 x 18 mm)

Note: Purchase locally

$1.99

$

In Stock, Qty 7

0

2

Homelite 660970001

Screw (M4 x 16 mm)

Note: Purchase locally

$1.99

$

In Stock, only 1 left!

0

3

Homelite 308671002

Front Housing Assembly

$20.99

$

Usually ships in 3-7 days

0

4

Homelite 511731001

Pulley Handle
(Superseded to PS06114)

$

$

Not available

5

Homelite 660968001

Screw (M4 x 19 mm)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 850108002

Ignition Module

$30.99

$

In Stock, only 1 left!

0

7

Homelite 660638003

Screw (10-24 x 2-3/16 in.)
(Superseded to PS03999)

Note: Purchase locally

$

$

Not available

8

Homelite 638442001

Heat Shield

$4.49

$

In Stock, only 1 left!

0

9

Homelite 308990001

Muffler Assembly

$

$

Not available

10

Homelite 901452001

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 308892001

Short Block Assembly

Note: Inc. Key Nos. 34-36

$

$

Not available

12

Homelite 518504001

Rear Housing

$4.99

$

Usually ships in 3-7 days

0

13

Homelite 901551001

Intake Gasket

Note: Purchase locally

$1.99

$

In Stock, only 3 left!

0

14

Homelite 518497001

Heat Dam

$3.99

$

In Stock, only 1 left!

0

15

Homelite 518685001

Heat Dam Deflector

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 901552001

Carburetor Gasket

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 308054001

Carburetor

$

$

Not available

18

Homelite 518498001

Choke Base

$

$

Not available

19

Homelite 660453001

Double Sided Hex Bolt

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 660454001

Bolt (M5 x 70 mm)

Note: Purchase locally

$1.49

$

In Stock, only 3 left!

0

21

Homelite 660970002

Screw (M4 x 10 mm Shoulder)

$1.99

$

In Stock, only 1 left!

0

22

Homelite 308675002

Fuel Tank Assembly w/Cap (UT21566)

$

$

Not available

23

Homelite 308674001

Flywheel Assembly

$15.99

$

Usually ships in 3-7 days

0

24

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

25

Homelite 660967001

Screw (M4 x 14 mm)

Note: Purchase locally

$1.99

$

In Stock, only 1 left!

0

26

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

27

Homelite 308386001

Starter Pulley Assembly
(Superseded to 308374001)

$

$

Not available

28

Homelite 638033001

Spring & Container Assembly

$5.49

$

In Stock, only 4 left!

0

29

Homelite 518692001

Starter Housing

$2.49

$

In Stock, only 4 left!

0

30

Homelite 638284002

Spacer Tube

$

$

Not available

31

Homelite 638090001

Clutch Washer

$1.99

$

In Stock, only 4 left!

0

32

Homelite 300960002

Clutch Assembly

$10.99

$

In Stock, only 1 left!

0

33

Homelite 308863003

Lead Assembly

$3.49

$

Usually ships in 3-7 days

0

34

Homelite 901550001

Gasket
(Superseded to 901550003)

$1.99

$

In Stock, only 4 left!

0

35

Homelite 638337001

Crankcase Cover
(Superseded to 638337005)

$6.49

$

Usually ships in 3-7 days

0

36

Homelite 660925003

Screw (M4 x 12 mm)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 900849002

Starter Rope (42 in.)

Note: Not Shown

$1.99

$

In Stock, Qty 5

0
