UT-21506 - Homelite Mightylite String Trimmer Figure A Parts Diagram

Mightylite String Trimmer

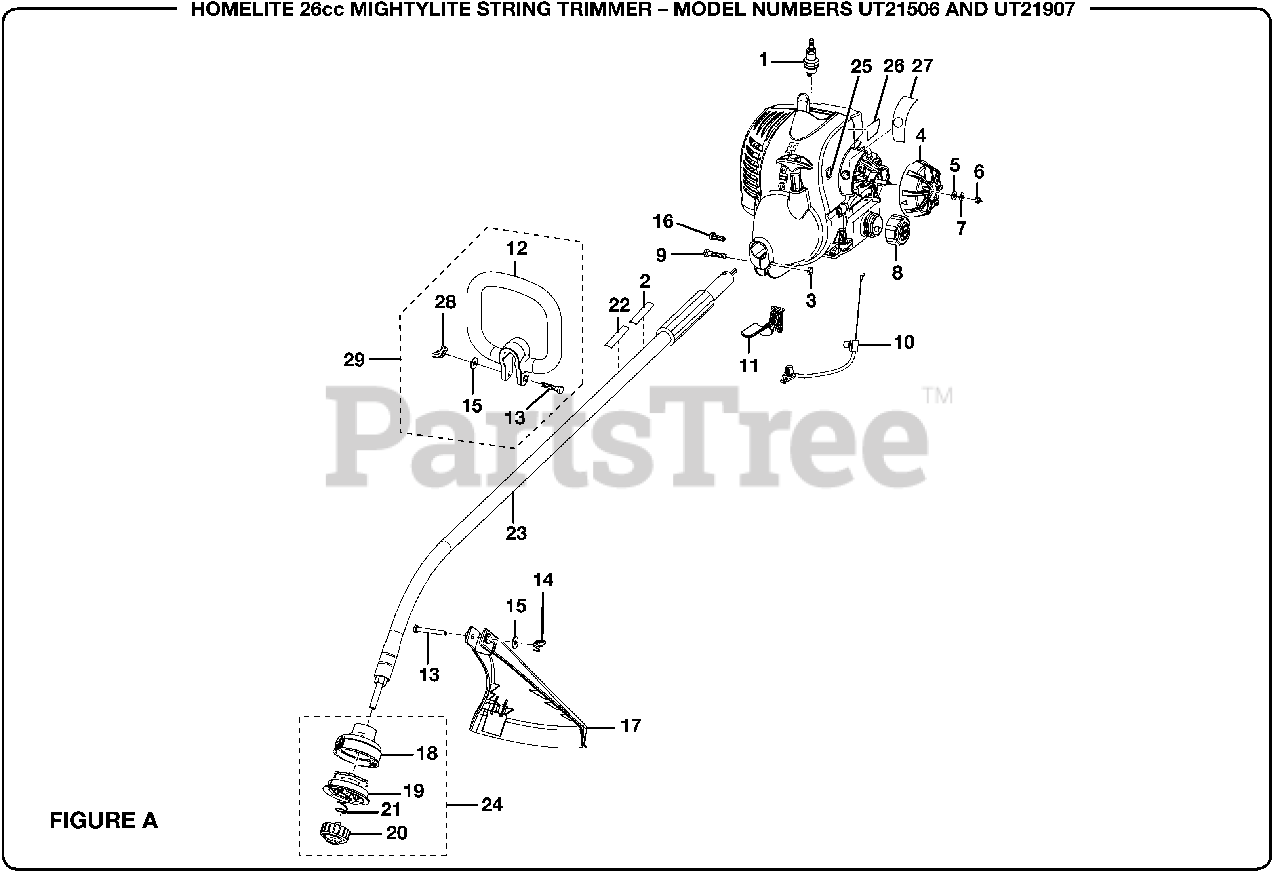

Figure A Parts Diagram

  • Title
1

Homelite 870174001

Spark Plug

Note: (Champion RCJ6Y); Purchase locally

$4.49

$

In Stock, Qty 20+

0

2

Homelite 940734008

Starting Label

$

$

Not available

3

Homelite 678029002

Hex Nut (M6)

Note: Purchase locally

$1.99

$

In Stock, Qty 6

0

4

Homelite 518496001

Choke Dial Cover

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 678434001

Flat Washer

$

$

Not available

6

Homelite 678435001

Hex Nut (M4)

Note: Purchase locally

$

$

Not available

7

Homelite 678434002

Wavy Washer

$1.49

$

Usually ships in 3-7 days

0

8

$

$

Not available

9

Homelite 660697002

Bolt (M6 x 20 mm)

Note: Purchase locally

$1.99

$

In Stock, only 1 left!

0

10

Homelite 270032001

Throttle Cable

$3.49

$

In Stock, only 1 left!

0

11

Homelite 518529001

Throttle Trigger

$

$

Not available

12

$7.49

$

Usually ships in 3-7 days

0

13

Homelite 660643008

Bolt (1/4-20 x 40 mm)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 678034001

Wing Nut (1/4-20)

Note: Purchase locally

$1.99

$

In Stock, Qty 7

0

15

Homelite 678008001

Flat Washer

$1.99

$

In Stock, only 1 left!

0

16

Homelite 660634001

Screw (8-16 x 5/16 in.)

Note: Purchase locally

$1.99

$

In Stock, Qty 20+

0

17

Homelite T308744001

Curved Shaft Grass Deflector

Note: Incl. Key Nos. 13-15

$

$

Not available

18

Homelite 308746001

String Head Housing

$

$

Not available

19

Homelite 308044006

Single Line Spool and String

$

$

Not available

20

Homelite 308042002

Spool Retainer

$

$

Not available

21

Homelite 678022001

Spring
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

22

Homelite 940642020

Warning Label

$

$

Not available

23

Homelite 000998357

Boom Assembly

Note: Inc. Key Nos. 2 and 22

$

$

Not available

24

Homelite 120151001

String Head Assembly

$

$

Not available

25

Homelite 760700002

Switch
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

26

Homelite 940642025

Logo Label

$

$

Not available

27

Homelite 940647008

Choke Label

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 678246001

Wing Nut (1/4-20)
(Superseded to PS02453)

Note: Purchase locally

$2.49

$

In Stock, only 1 left!

0

29

Homelite 308741001

Handle Assembly

Note: Inc. Key Nos. 12, 13, 15 and 28

$12.99

$

In Stock, only 1 left!

0

Homelite 987000037

Operator's Manual (960089001)

$

$

Not available
